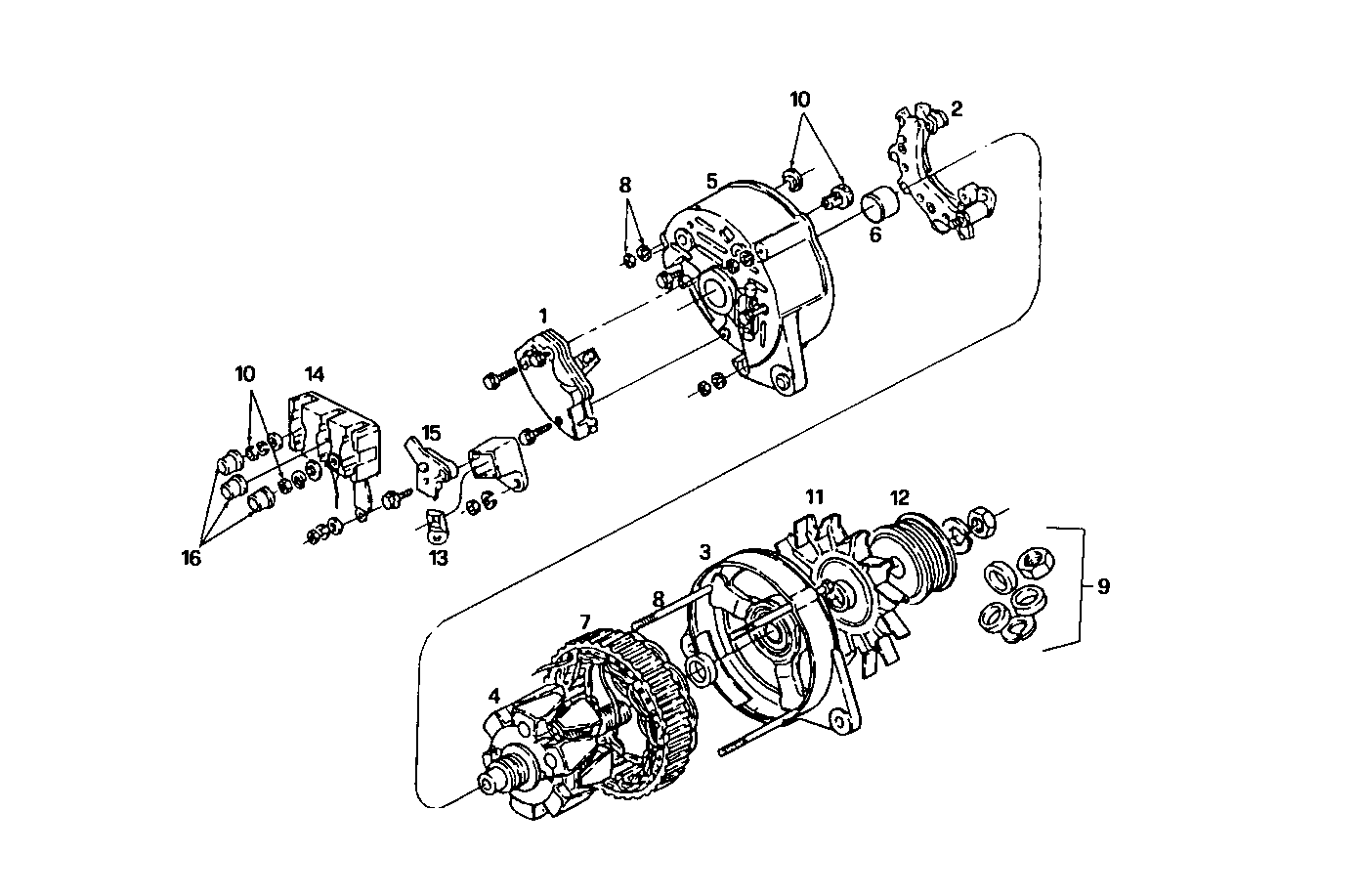

GENERATOR (COMPONENTS)
7450E00.00 — 7450E00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 82851898 | VOLTAGE REGULATOR VOLTAGE REGULATOR | 1 | |
| 2 | 83999825 | RECTIFIER RECTIFIER | 1 | |
| 3 | 83999866 | SUPPORT SUPPORT | 1 | |
| 4 | 83961487 | ROTOR ROTOR | 1 | |
| 5 | 83961478 | SUPPORT SUPPORT | 1 | |
| 6 | 83961479 | DRIVE BEARING DRIVE BEARING | 1 | |
| 7 | 83981541 | STATOR STATOR | 1 | |
| 8 | 83961480 | KIT-GENERATOR KIT-GENERATOR | 1 | |
| 9 | 83961481 | KIT-GENERATOR KIT-GENERATOR | 1 | |
| 10 | 83999870 | KIT-GENERATOR KIT-GENERATOR | 1 | |
| 11 | 83961483 | GENERATOR FAN GENERATOR FAN | 1 | |
| 12 | 83999816 | PULLEY PULLEY | 1 | |
| 13 | 83981549 | KIT-GENERATOR KIT-GENERATOR | 1 | |
| 14 | 83999875 | RETAINER RETAINER | 1 | |
| 15 | 83999819 | INDICATOR INDICATOR | 1 | |
| 16 | 81864706 | CAP CAP | 1 |
