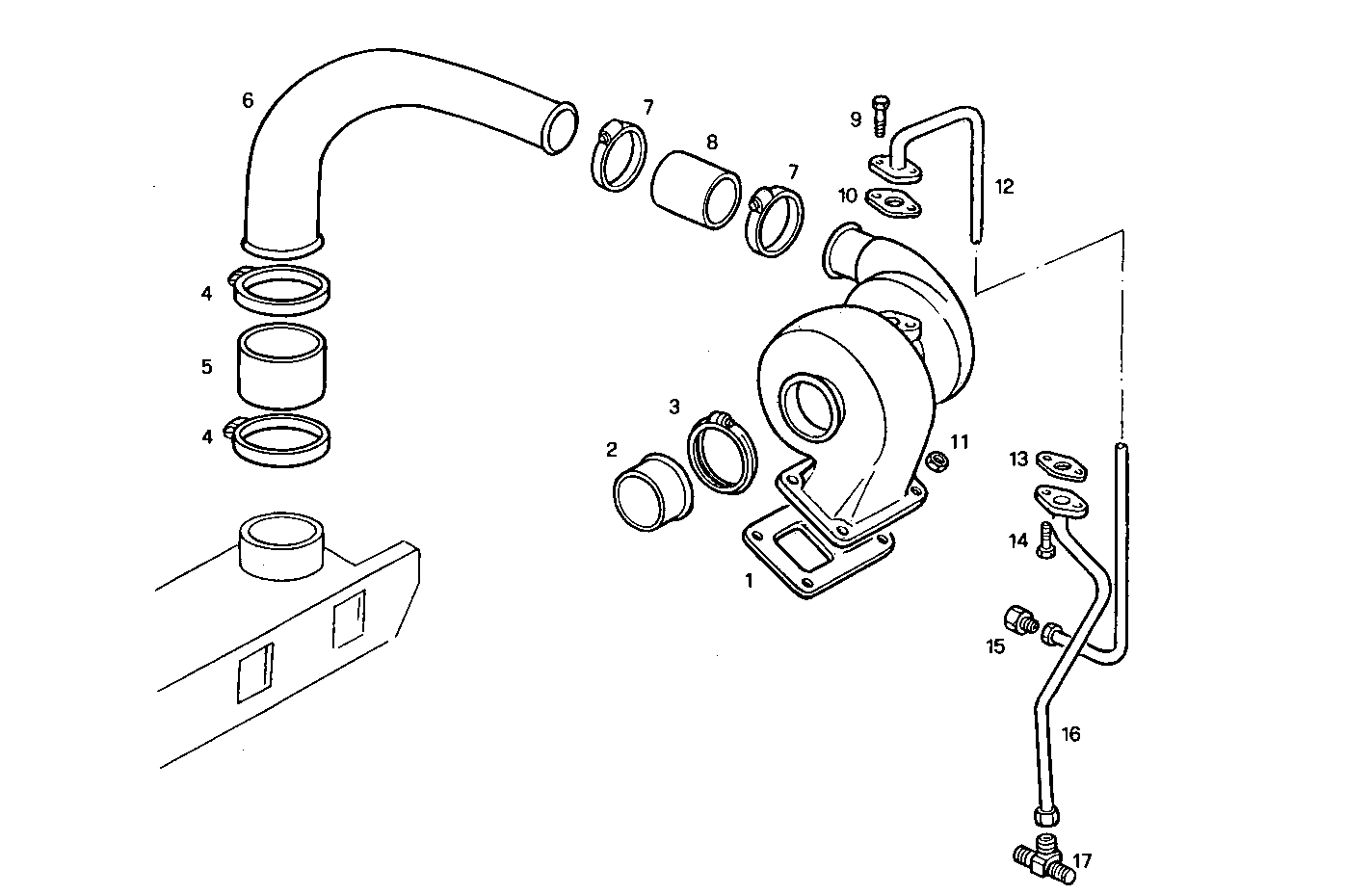

SUPERCHARGING LINES
7450Si15.05A500 — 7450Si15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 83911642 | GASKET GASKET | 1 | |
| 2 | 8014613 | FLANGE FLANGE | 1 | |
| 3 | 8015368 | CLIP CLIP | 1 | |
| 4 | 81871498 | CLIP CLIP | 2 | |
| 5 | 81862808 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 6 | 82859739 | INTAKE ELBOW INTAKE ELBOW | 1 | |
| 7 | 81871496 | CLIP CLIP | 2 | |
| 8 | 8015202 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 9 | 81879213 | SCREW SCREW | 2 | |
| 10 | 83959841 | GASKET GASKET | 1 | |
| 11 | 83993005 | NUT NUT | 4 | |
| 12 | 81879212 | OIL LINE OIL LINE | 1 | |
| 13 | 83953341 | GASKET GASKET | 1 | |
| 14 | 83908815 | SCREW SCREW | 2 | |
| 15 | 81843887 | PIPE SOCKET PIPE SOCKET | 1 | |
| 16 | 82853711 | OIL LINE OIL LINE | 1 | |
| 17 | 81869032 | PIPE SOCKET PIPE SOCKET | 1 |
