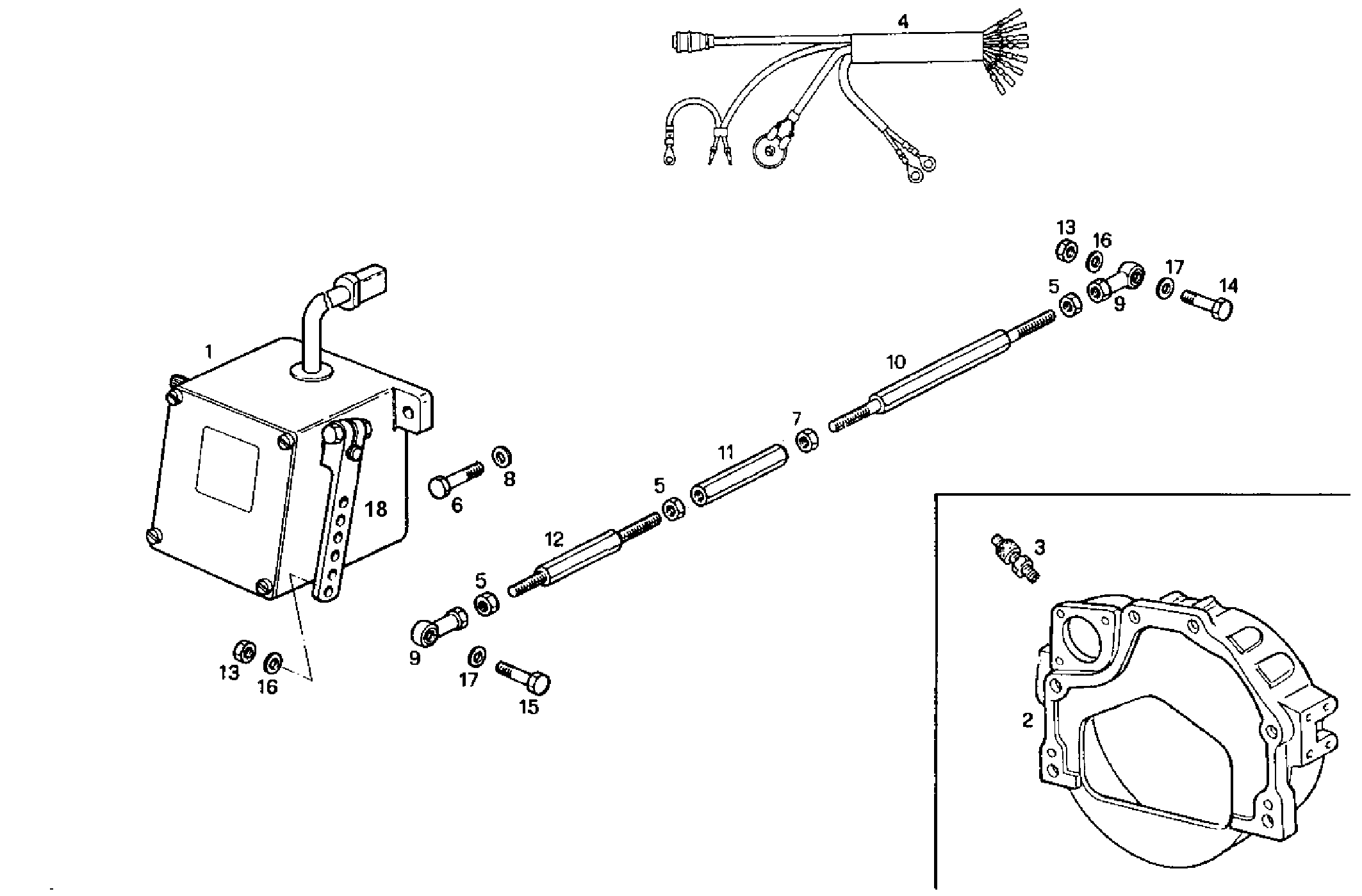

ELECTRONIC GOVERNOR G.A.C.
7450Si16.05 — 7450Si16
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8018971 | ENGINE ACTUATOR ENGINE ACTUATOR | 1 | |
| 2 | 8017137 | FLYWHEEL HOUSING FLYWHEEL HOUSING | 1 | |
| 3 | 8018673 | PICK-UP PICK-UP | 1 | |
| 4 | 8018968 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 5 | 17037821 | HEXAGON NUT HEXAGON NUT | 3 | |
| 6 | 16603724 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 7 | 16981731 | NUT NUT | 1 | |
| 8 | 17088974 | SPRING WASHER SPRING WASHER | 2 | |
| 9 | 4934541 | BALL HEAD BALL HEAD | 2 | |
| 10 | 8105563 | TIE ROD TIE ROD | 1 | |
| 11 | 17720114 | TIE ROD TIE ROD | 1 | |
| 12 | 4936705 | TIE ROD TIE ROD | 1 | |
| 13 | 17152721 | NUT NUT | 2 | |
| 14 | 16603824 | SCREW SCREW | 1 | |
| 15 | 16603924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 17094714 | WASHER WASHER | 2 | |
| 17 | 17088474 | WASHER WASHER | 2 | |
| 18 | 8031536 | LEVER LEVER | 1 |
