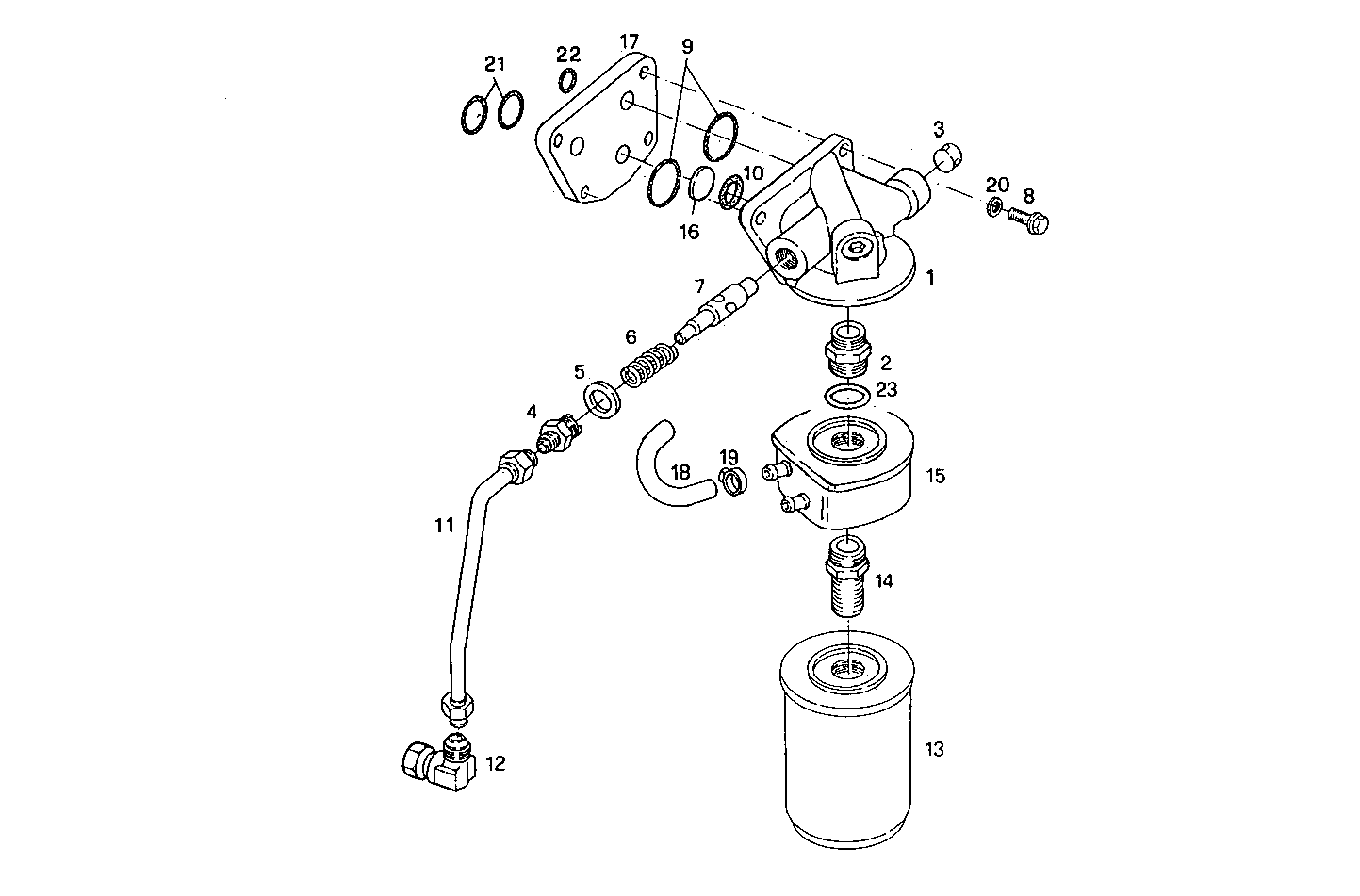

LUBE OIL LINES
7450Si16.05A520 — 7450Si16
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 87802052 | SUPPORT SUPPORT | 1 | |
| 2 | 8013049 | PIPE SOCKET PIPE SOCKET | 1 | |
| 3 | 82926938 | PLUG PLUG | 3 | |
| 4 | 81869029 | PIPE SOCKET PIPE SOCKET | 1 | |
| 5 | 80167266 | WASHER WASHER | 1 | |
| 6 | 81868595 | SPRING SPRING | 1 | |
| 7 | 83999649 | VALVE VALVE | 1 | |
| 8 | 8020539 | SCREW SCREW | 4 | |
| 9 | 14463881 | O-RING O-RING | 2 | |
| 10 | 83958249 | O-RING O-RING | 1 | |
| 11 | 81869030 | OIL LINE OIL LINE | 1 | |
| 12 | 80182977 | PIPE SOCKET PIPE SOCKET | 1 | |
| 13 | 8014680 | OIL FILTER CARTRIDGE OIL FILTER CARTRIDGE | 1 | |
| 14 | 8020540 | PIPE SOCKET PIPE SOCKET | 1 | |
| 15 | 8012973 | OIL/WATER HEAT EXCHANGER OIL/WATER HEAT EXCHANGER | 2 | |
| 16 | 81869031 | PLUG PLUG | 1 | |
| 17 | 8018329 | SPACING BAR SPACING BAR | 1 | |
| 18 | 8020541 | WATER HOSE WATER HOSE | 1 | |
| 19 | 17764592 | CLIP CLIP | 2 | |
| 20 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 21 | 17289281 | O-RING O-RING | 2 | |
| 22 | 17288481 | O-RING O-RING | 1 | |
| 23 | 98429617 | RUBBER RING RUBBER RING | 1 |
