SENDER UNITS ALARMS INSTRUMENT - 12/24V
7450U00.00 — 7450U00

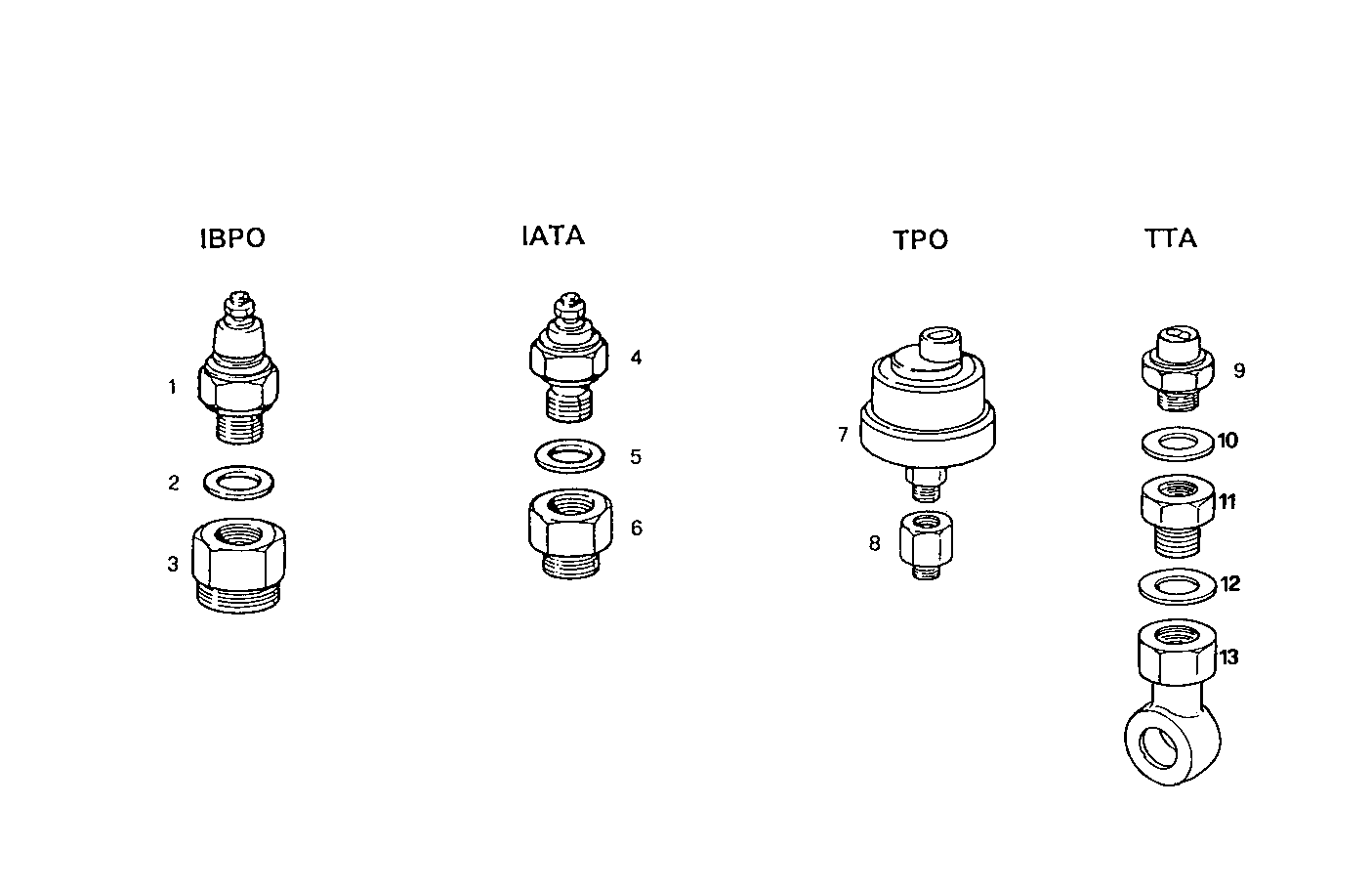

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8104140 | TRANSMITTER TRANSMITTER | 1 | |
| 2 | 4858607 | WASHER WASHER | 1 | |
| 3 | 8014221 | PIPE SOCKET PIPE SOCKET | 1 | |
| 4 | 8104141 | TRANSMITTER TRANSMITTER | 1 | |
| 5 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 6 | 8014220 | PIPE SOCKET PIPE SOCKET | 1 | |
| 7 | 8100563 | TRANSMITTER TRANSMITTER | 1 | |
| 8 | 8014230 | PIPE SOCKET PIPE SOCKET | 1 | |
| 9 | 4448131 | TEMP. TRANSMITTER TEMP. TRANSMITTER | 1 | |
| 10 | 99489019 | WASHER WASHER | 1 | |
| 11 | 8027369 | PIPE SOCKET PIPE SOCKET | 1 | |
| 12 | 98474309 | WASHER WASHER | 1 | |
| 13 | 8027928 | PIPE SOCKET PIPE SOCKET | 1 |
