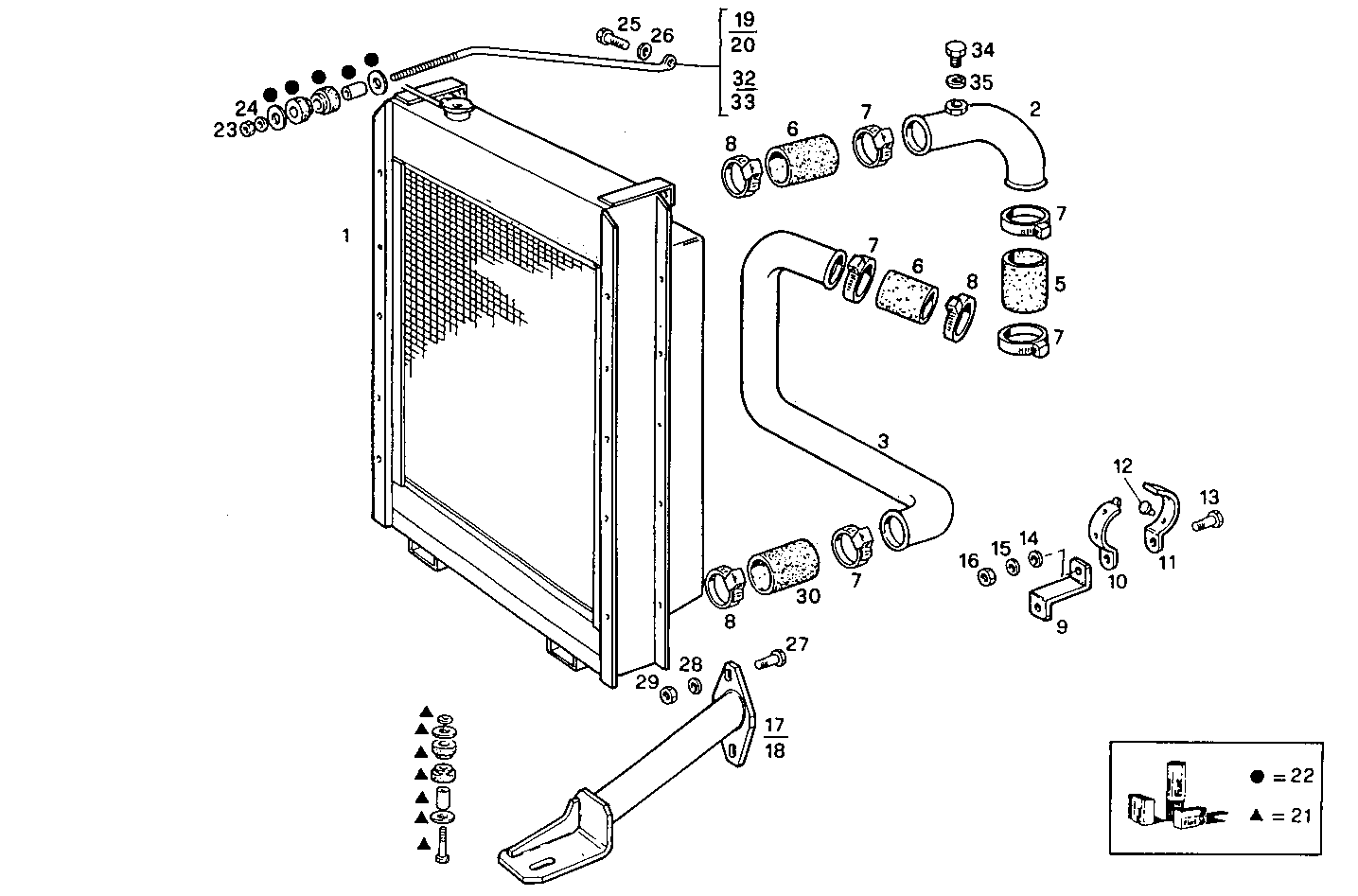

RADIATOR FOR SETTING TILL MAX POWER
7675i10.05 — 7675i10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8015686 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 8105330 | WATER PIPE WATER PIPE | 1 | |
| 3 | 8014455 | WATER PIPE WATER PIPE | 1 | |
| 4 | 4788148 | WATER HOSE WATER HOSE | 1 | |
| 5 | 4787630 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 6 | 98432897 | WATER HOSE WATER HOSE | 2 | |
| 7 | 17764891 | CLIP CLIP | 5 | |
| 8 | 98490783 | CLIP CLIP | 3 | |
| 9 | 8015261 | RETAINER RETAINER | 1 | |
| 10 | 8113298 | CLAMP CLAMP | 1 | |
| 11 | 8113299 | CLAMP CLAMP | 1 | |
| 12 | 1366290 | RUBBER PAD RUBBER PAD | 4 | |
| 13 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 15 | 17094914 | WASHER WASHER | 2 | |
| 16 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 17 | 8014425 | SUPPORT SUPPORT | 1 | |
| 18 | 8014424 | SUPPORT SUPPORT | 1 | |
| 19 | 8014451 | TIE ROD TIE ROD | 1 | |
| 20 | 8014452 | TIE ROD TIE ROD | 1 | |
| 21 | 8090341 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 22 | 8090413 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 23 | 17038421 | HEXAGON NUT HEXAGON NUT | 4 | |
| 24 | 17091074 | WASHER WASHER | 4 | |
| 25 | 8014453 | SCREW SCREW | 2 | |
| 26 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 27 | 16614824 | SCREW SCREW | 4 | |
| 28 | 17092174 | SPRING WASHER SPRING WASHER | 4 | |
| 29 | 17038921 | NUT NUT | 4 | |
| 30 | 4951318 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 32 | 8015736 | TIE ROD TIE ROD | 1 | |
| 33 | 8015737 | TIE ROD TIE ROD | 1 | |
| 34 | 10300911 | PLUG PLUG | 1 | |
| 35 | 4858605 | WASHER WASHER | 1 |
