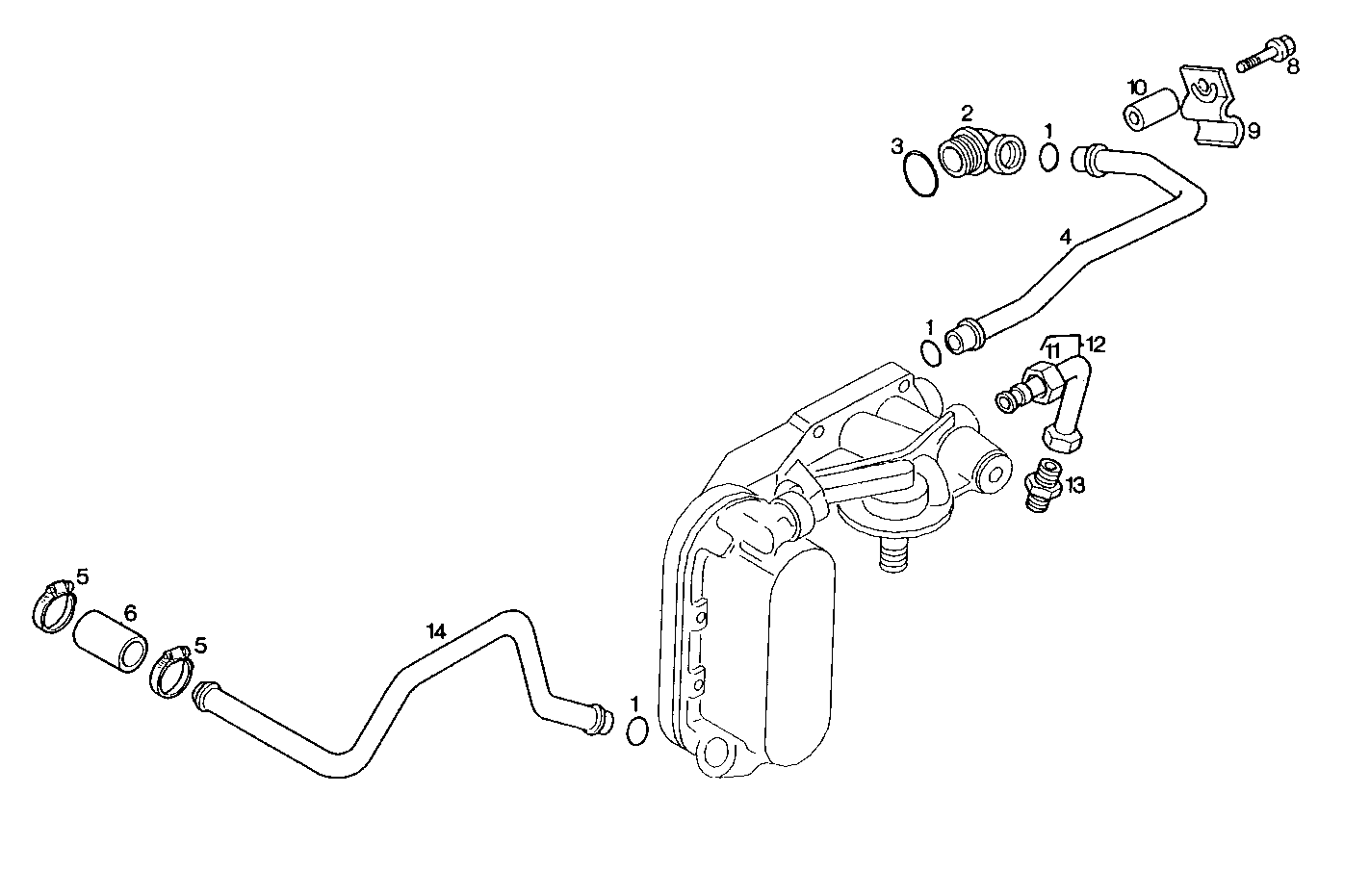

WATER LINES
7675SU00.00 — 7675SU00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 80027286 | O-RING O-RING | 3 | |
| 2 | 81876846 | PIPE SOCKET PIPE SOCKET | 1 | |
| 3 | 89706747 | O-RING O-RING | 1 | |
| 4 | 81876845 | WATER PIPE WATER PIPE | 1 | |
| 5 | 81876821 | CLIP CLIP | 2 | |
| 6 | 87840711 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 8 | 81868093 | SCREW SCREW | 1 | |
| 9 | 81876848 | SUPPORT SUPPORT | 1 | |
| 10 | 81876849 | SPACING BAR SPACING BAR | 1 | |
| 11 | 81876833 | NUT NUT | 2 | |
| 12 | 81879199 | WATER PIPE WATER PIPE | 1 | |
| 13 | 81876834 | PIPE SOCKET PIPE SOCKET | 1 | |
| 14 | 87802133 | WATER PIPE WATER PIPE | 1 |
