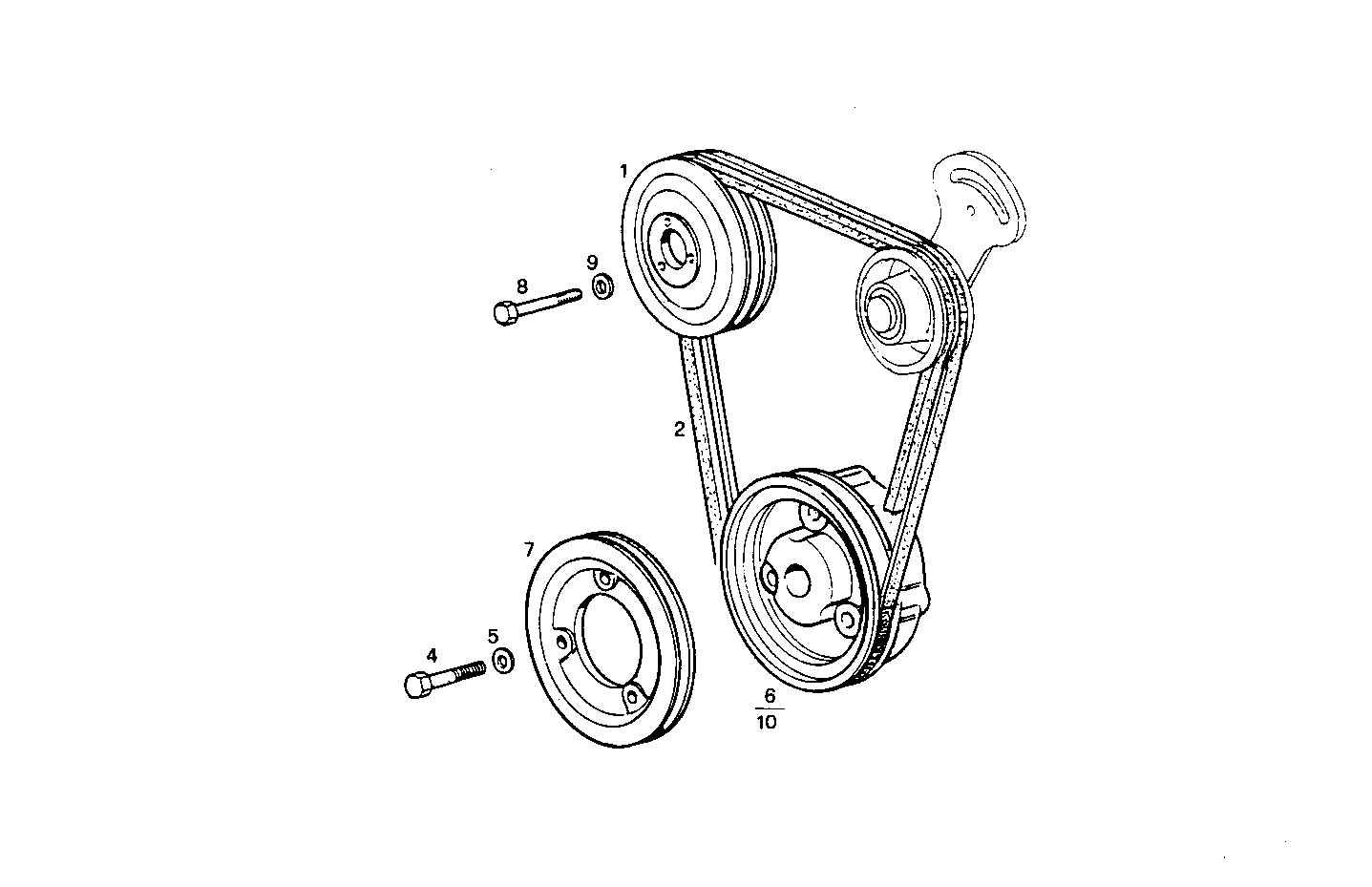

FRONT DRIVE WITH 2 BELTS
8031i05.05 — 8031i05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4619286 | WATER PUMP PULLEY WATER PUMP PULLEY | 1 | |
| 2 | 98473886 | SET OF V-BELTS SET OF V-BELTS | 1 | |
| 4 | 15888821 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 5 | 11190574 | WASHER WASHER | 3 | |
| 6 | 8012050 | PULLEY PULLEY | 1 | |
| 7 | 8012051 | PULLEY PULLEY | 1 | |
| 8 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 9 | 11193874 | WASHER WASHER | 3 | |
| 10 | 8015477 | PULLEY PULLEY | 1 |
