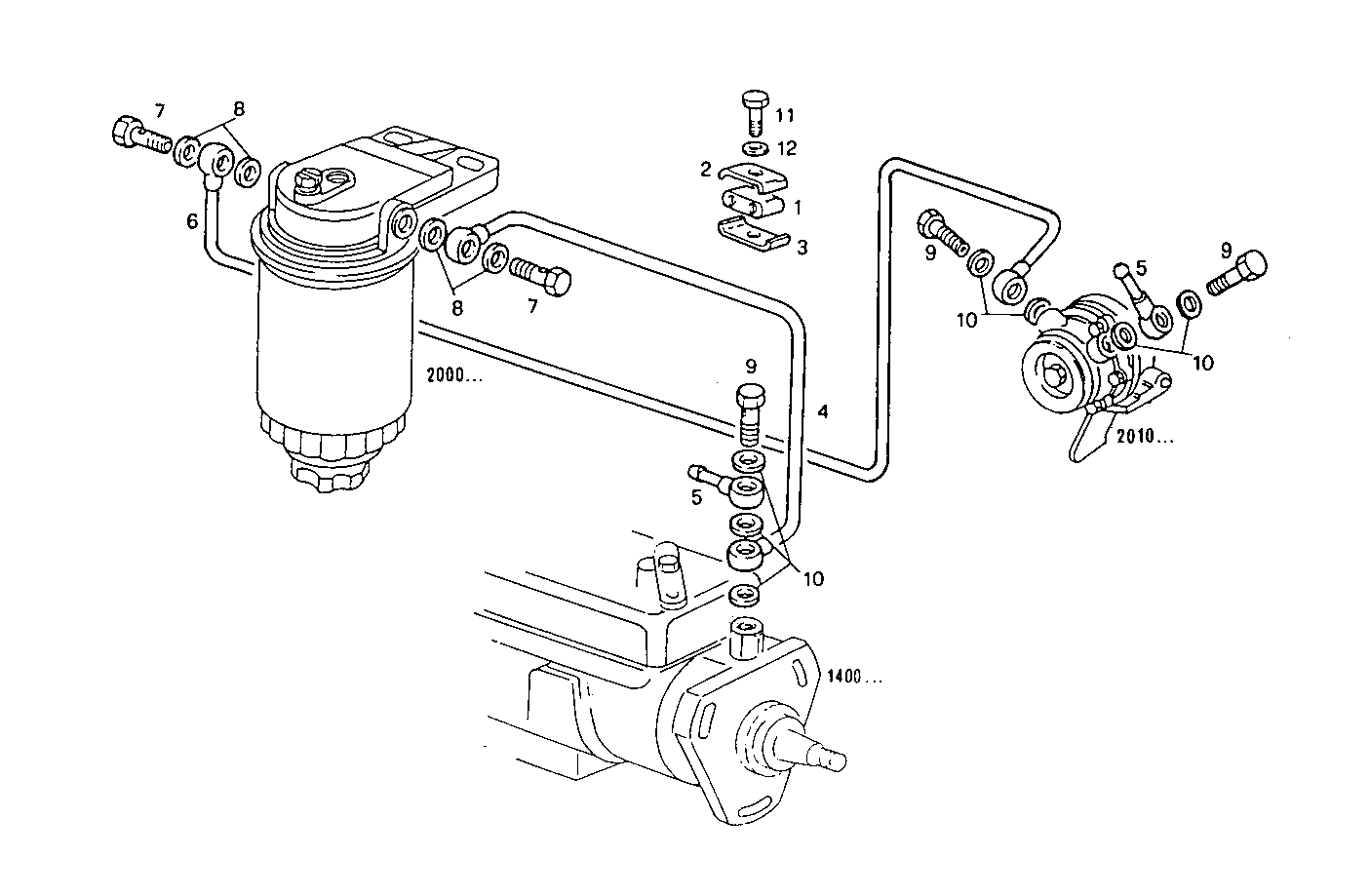

FUEL LINES
8031i05.05 — 8031i05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4659217 | DOWEL DOWEL | 1 | |
| 2 | 4659218 | CLIP CLIP | 1 | |
| 3 | 4659219 | PLATE PLATE | 1 | |
| 4 | 98419864 | FUEL LINE FUEL LINE | 1 | |
| 5 | 98416591 | SWIVEL COUPLING SWIVEL COUPLING | 2 | |
| 6 | 98419958 | FUEL LINE FUEL LINE | 1 | |
| 7 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 8 | 4858608 | SEAL GASKET SEAL GASKET | 4 | |
| 9 | 4864082 | BANJO BOLT BANJO BOLT | 3 | |
| 10 | 4858607 | WASHER WASHER | 7 | |
| 11 | 10978221 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 17494631 | SPRING WASHER SPRING WASHER | 1 |
