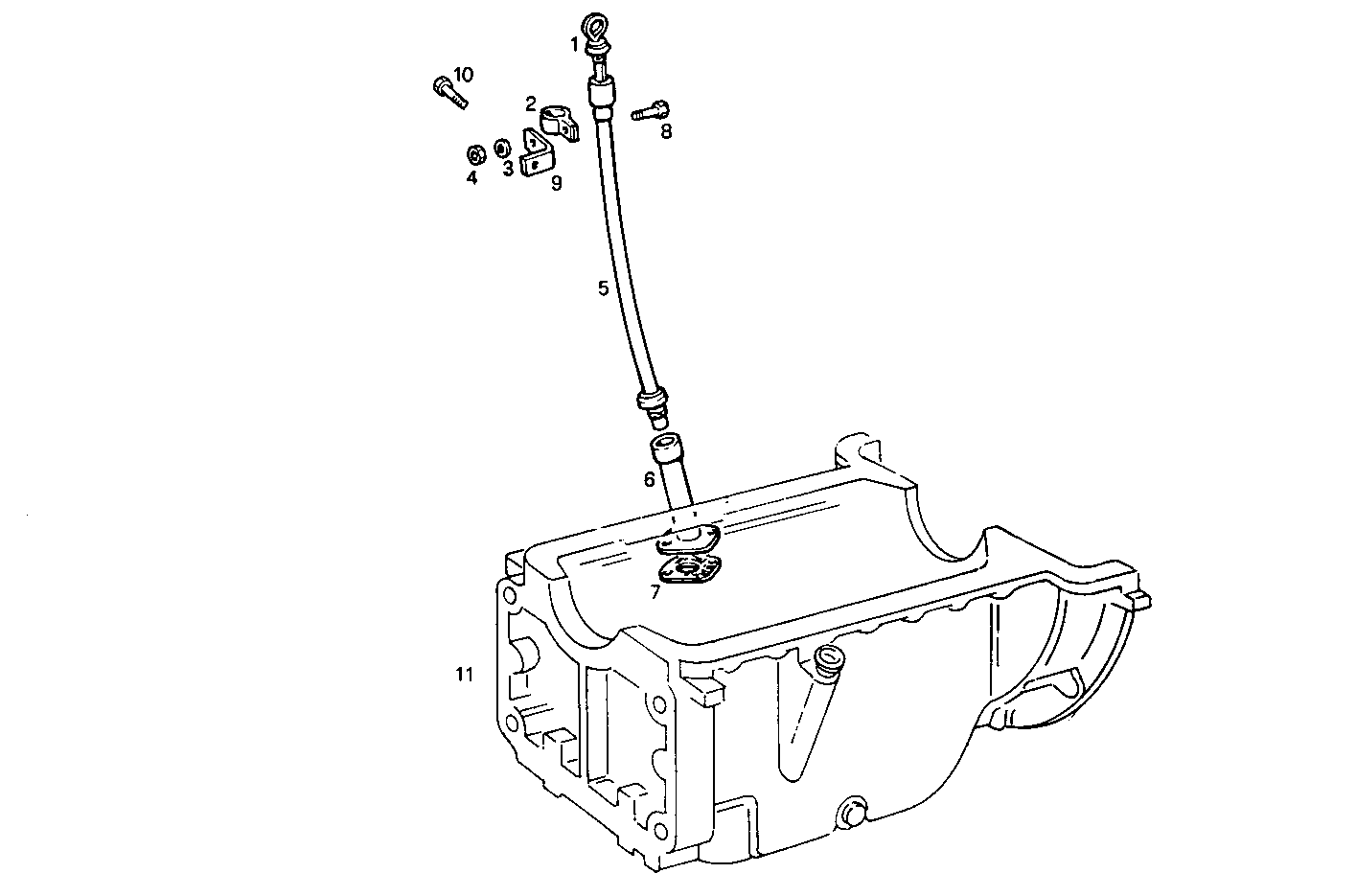

LONG OIL DIPSTICK RIGHT SIDE
8031i05.05 — 8031i05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8109173 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 2 | 8100228 | CLIP CLIP | 1 | |
| 3 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 4 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 5 | 8109409 | ROD GUIDE ROD GUIDE | 1 | |
| 6 | 8105565 | ROD GUIDE ROD GUIDE | 1 | |
| 7 | 98401047 | GASKET GASKET | 1 | |
| 8 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 8108086 | RETAINER RETAINER | 1 | |
| 10 | 11307021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 8105564 | OIL SUMP OIL SUMP | 1 |
