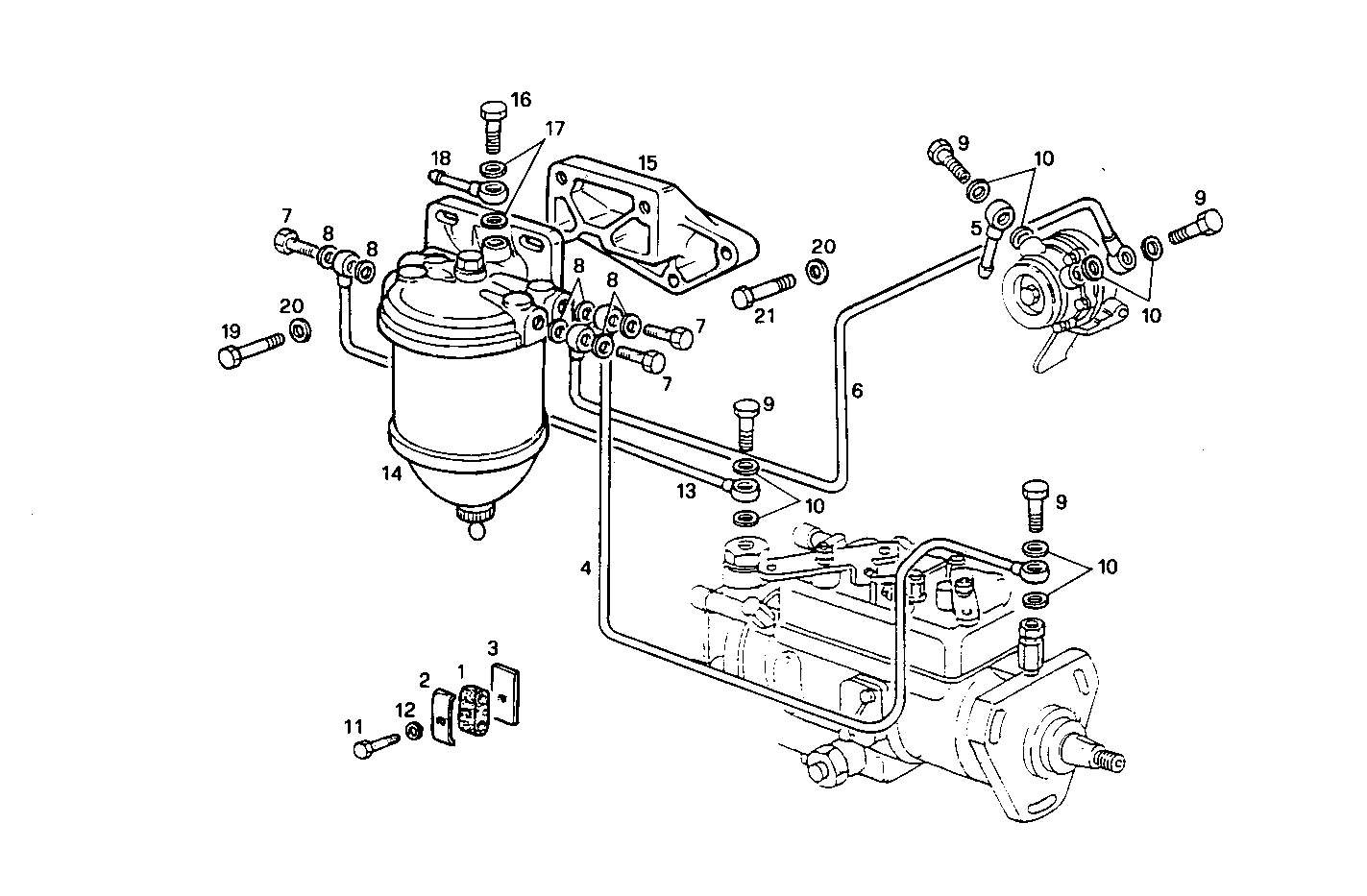

SIMPLE FUEL FILTER
8031i05.05 — 8031i05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4659217 | DOWEL DOWEL | 1 | |
| 2 | 4659218 | CLIP CLIP | 1 | |
| 3 | 4659219 | PLATE PLATE | 1 | |
| 4 | 8009105 | FUEL LINE FUEL LINE | 1 | |
| 5 | 98416591 | SWIVEL COUPLING SWIVEL COUPLING | 1 | |
| 6 | 8009106 | FUEL LINE FUEL LINE | 1 | |
| 7 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 3 | |
| 8 | 4858608 | SEAL GASKET SEAL GASKET | 6 | |
| 9 | 4864082 | BANJO BOLT BANJO BOLT | 3 | |
| 10 | 4858607 | WASHER WASHER | 7 | |
| 11 | 10978221 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 17800271 | WASHER WASHER | 1 | |
| 13 | 8009107 | FUEL LINE FUEL LINE | 1 | |
| 14 | 4612229 | FUEL FILTER FUEL FILTER | 1 | |
| 15 | 4615697 | SUPPORT SUPPORT | 1 | |
| 16 | 4617972 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 17 | 4858606 | GASKET GASKET | 2 | |
| 18 | 4671701 | SWIVEL COUPLING SWIVEL COUPLING | 1 | |
| 19 | 11306921 | SCREW SCREW | 2 | |
| 20 | 11198371 | SPRING WASHER SPRING WASHER | 5 | |
| 21 | 15888821 | HEXAGON BOLT HEXAGON BOLT | 3 |
