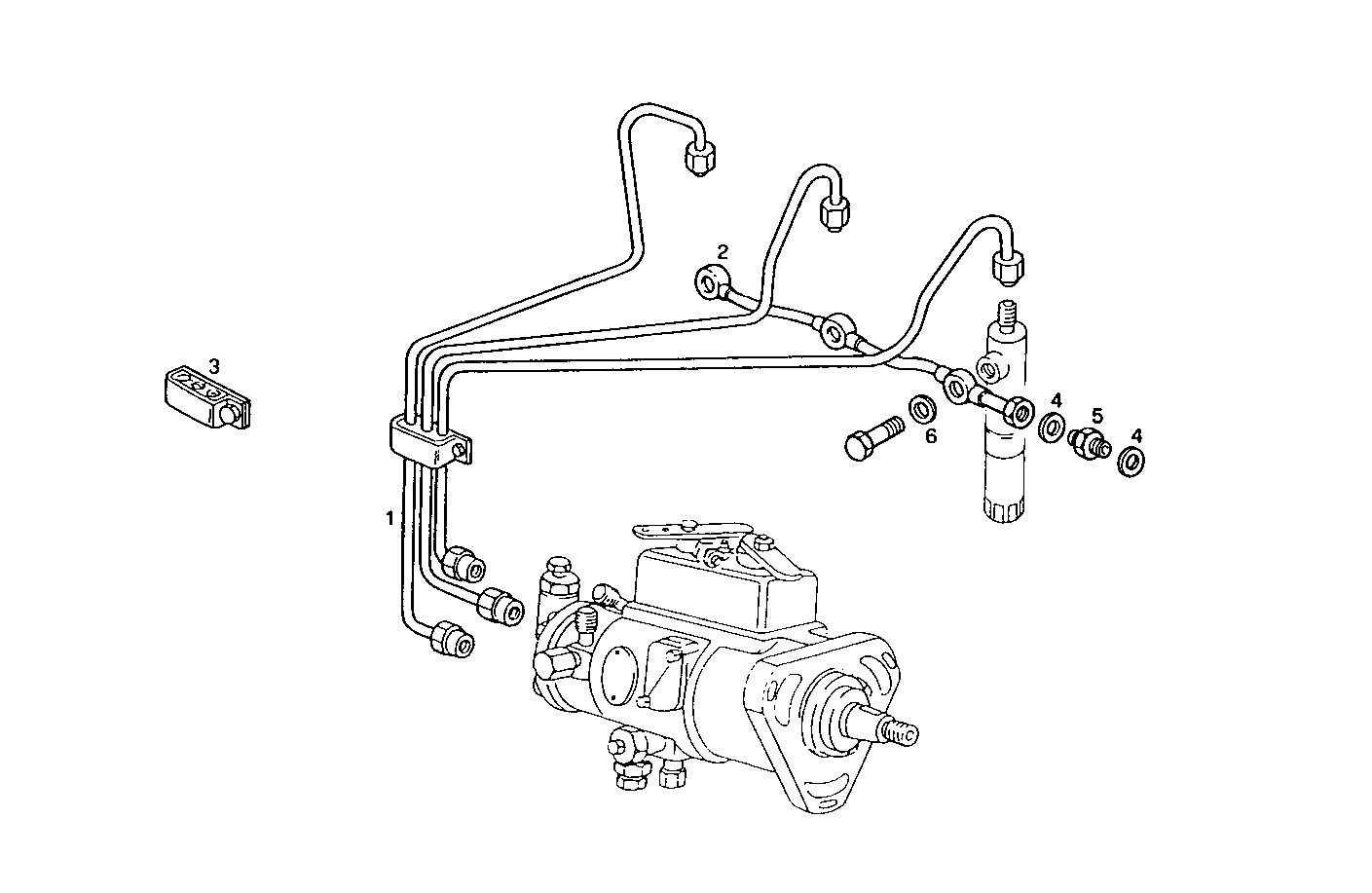

INJECTION PIPES
8031i40.05 — 8031i40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4797511 | INJECTION LINE SET INJECTION LINE SET | 1 | |
| 2 | 8029299 | FUEL LINE FUEL LINE | 1 | |
| 3 | 98404551 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 4 | 8024646 | O-RING O-RING | 2 | |
| 5 | 16501611 | PIPE SOCKET PIPE SOCKET | 1 | |
| 6 | 10297760 | SEAL GASKET SEAL GASKET | 6 |
