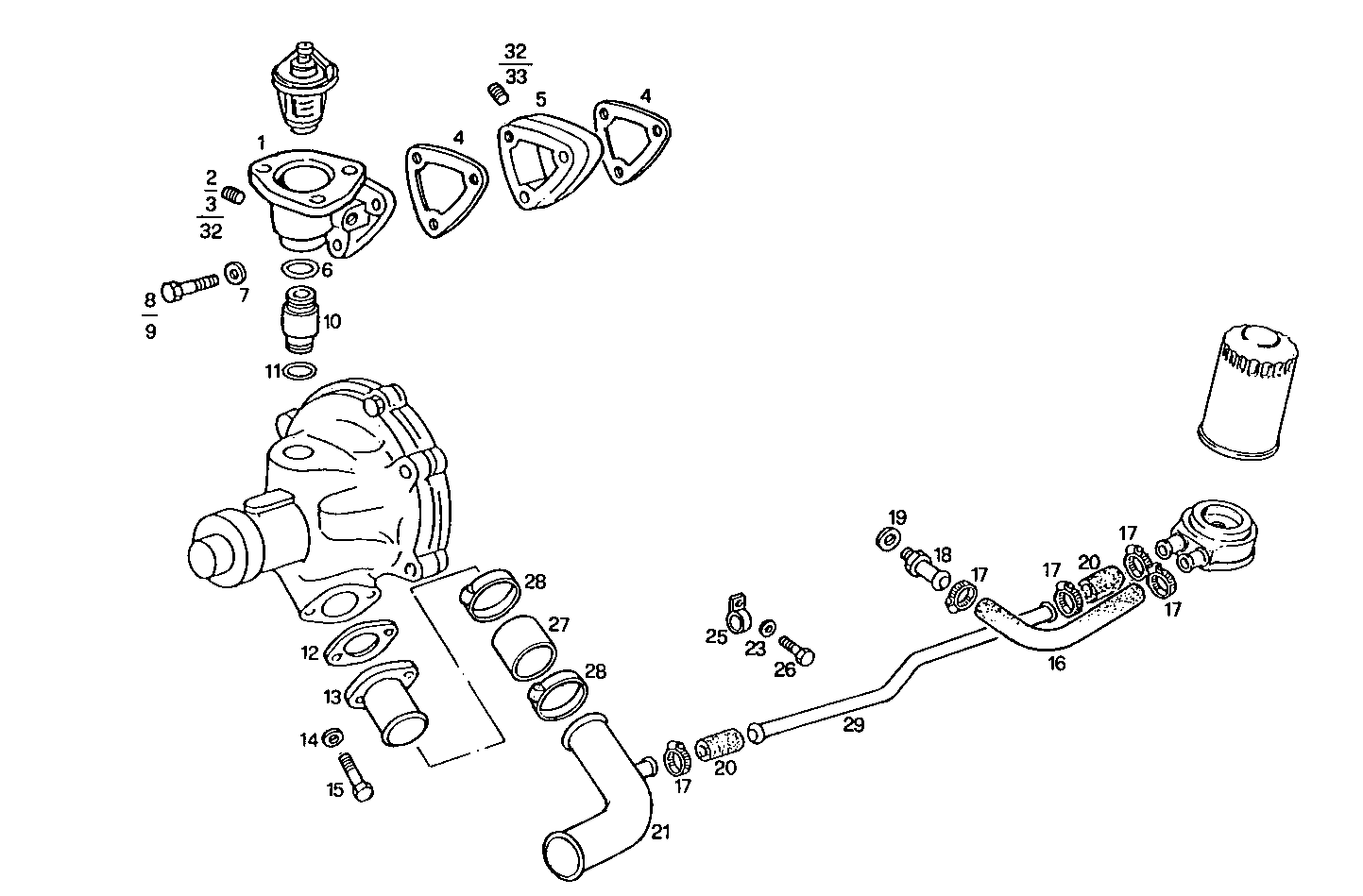

WATER LINES
8031i40.05 — 8031i40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4823616 | THERMOSTAT BODY THERMOSTAT BODY | 1 | |
| 2 | 16997611 | THREADED PLUG THREADED PLUG | 1 | |
| 3 | 16997711 | LOCK PLUG LOCK PLUG | 1 | |
| 4 | 4851926 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 5 | 4651371 | SPACING BAR SPACING BAR | 1 | |
| 6 | 17288681 | O-RING O-RING | 1 | |
| 7 | 17095104 | WASHER WASHER | 6 | |
| 8 | 15971424 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 15971721 | SCREW SCREW | 2 | |
| 10 | 98415712 | PIPE SOCKET PIPE SOCKET | 1 | |
| 11 | 17282281 | O-RING O-RING | 1 | |
| 12 | 4852556 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 13 | 4697838 | WATER PIPE WATER PIPE | 1 | |
| 14 | 17094914 | WASHER WASHER | 2 | |
| 15 | 98401723 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 16 | 8019449 | WATER HOSE WATER HOSE | 1 | |
| 17 | 18088391 | CLIP CLIP | 6 | |
| 18 | 98418647 | PIPE SOCKET PIPE SOCKET | 1 | |
| 19 | 10263460 | WASHER WASHER | 1 | |
| 20 | 17737187 | WATER HOSE WATER HOSE | 2 | |
| 21 | 8028323 | WATER PIPE WATER PIPE | 1 | |
| 23 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 25 | 4763572 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 26 | 16609824 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 27 | 4927830 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 28 | 17764791 | CLIP CLIP | 2 | |
| 29 | 8028324 | WATER PIPE WATER PIPE | 1 | |
| 32 | 16997411 | THREADED PLUG THREADED PLUG | 2 | |
| 33 | 99434231 | THREADED PLUG THREADED PLUG | 1 |
