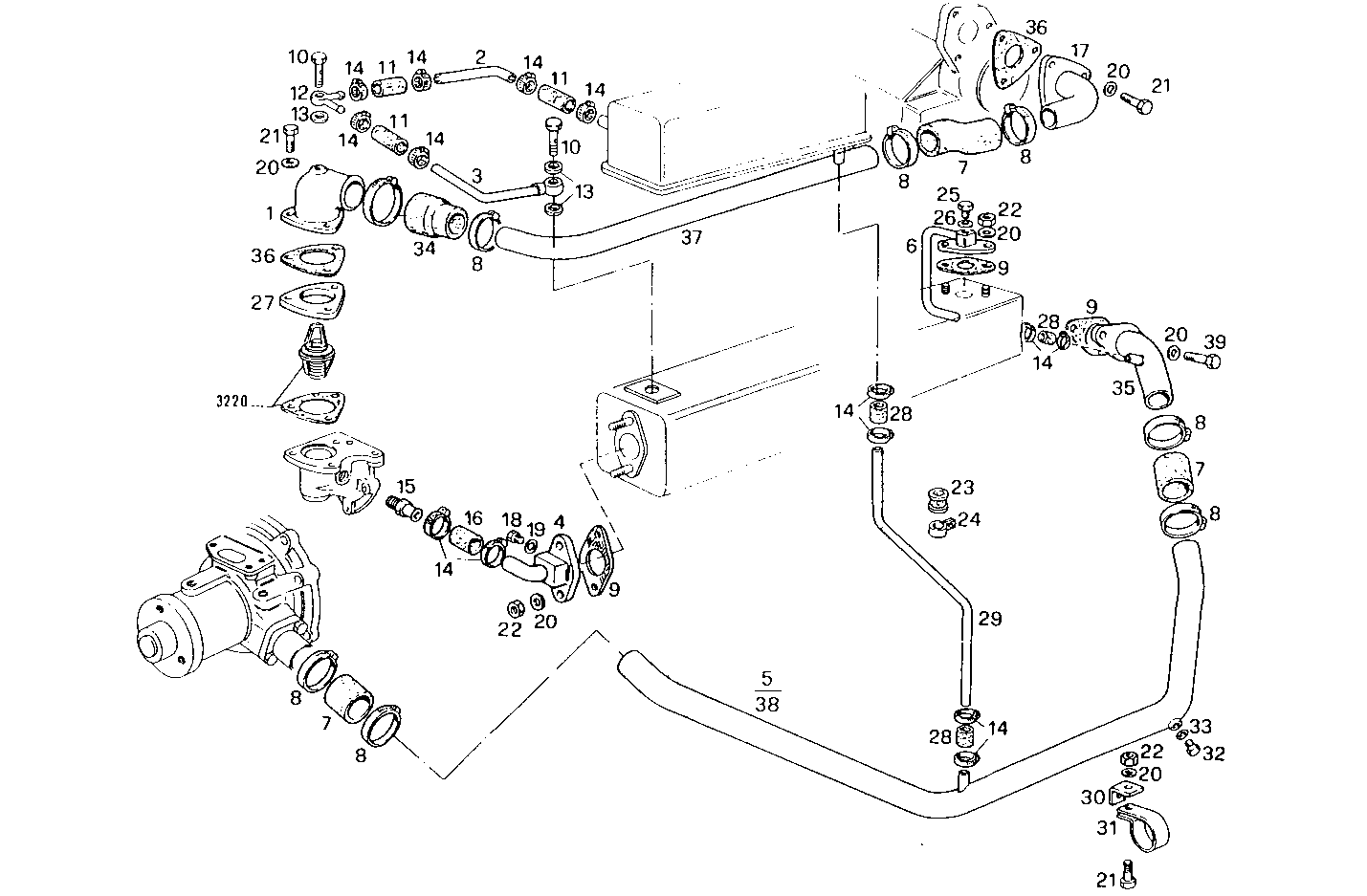

WATER LINES

8035M06.00 — 8035M06

Parts List

#	Part No	Name / Description	Qty
1	8107202	WATER PIPE WATER PIPE	1
2	8107519	WATER PIPE WATER PIPE	1
3	8008873	WATER PIPE WATER PIPE	1
4	8107731	WATER PIPE WATER PIPE	1
5	8107742	WATER PIPE WATER PIPE	1
6	8107732	WATER PIPE WATER PIPE	1
7	4918860	WATER HOSE WATER HOSE	2
8	17764793	CLIP CLIP	7
9	8009640	GASKET GASKET	3
10	8009696	SCREW CONNECTOR SCREW CONNECTOR	2
11	4927825	WATER HOSE WATER HOSE	3
12	8016190	PIPE SOCKET PIPE SOCKET	1
13	4858607	WASHER WASHER	4
14	17764593	CLIP CLIP	12
15	4760312	THREADED UNION THREADED UNION	1
16	98418717	WATER HOSE WATER HOSE	1
17	8107720	PIPE SOCKET PIPE SOCKET	1
18	16992340	THREADED PLUG THREADED PLUG	1
19	4858608	SEAL GASKET SEAL GASKET	1
20	17089474	SPRING WASHER SPRING WASHER	13
21	16605624	HEXAGON BOLT HEXAGON BOLT	6
22	17037925	HEXAGON NUT HEXAGON NUT	5
23	4757122	RUBBER PAD RUBBER PAD	1
24	4763804	FASTENING BRACKET FASTENING BRACKET	1
25	16992440	THREADED PLUG THREADED PLUG	1
26	4858609	WASHER WASHER	1
27	8107226	SPACING BAR SPACING BAR	1
28	12077086	RUBBER SLEEVE RUBBER SLEEVE	3
29	8107523	WATER PIPE WATER PIPE	1
30	4934319	RETAINER RETAINER	1
31	4936741	CLIP CLIP	1
32	11903040	LOCK PLUG LOCK PLUG	1
33	10260160	SEAL GASKET SEAL GASKET	1
34	98447313	WATER HOSE WATER HOSE	1
35	8107759	WATER PIPE WATER PIPE	1
36	98420754	FLAT ENGINE GKT FLAT ENGINE GKT	3
37	8107734	WATER PIPE WATER PIPE	1
38	16605734	HEXAGON BOLT HEXAGON BOLT	3
39	10136187	RUBBER SLEEVE RUBBER SLEEVE	1
40	11903040	LOCK PLUG LOCK PLUG	1
41	16508260	WASHER WASHER	1
