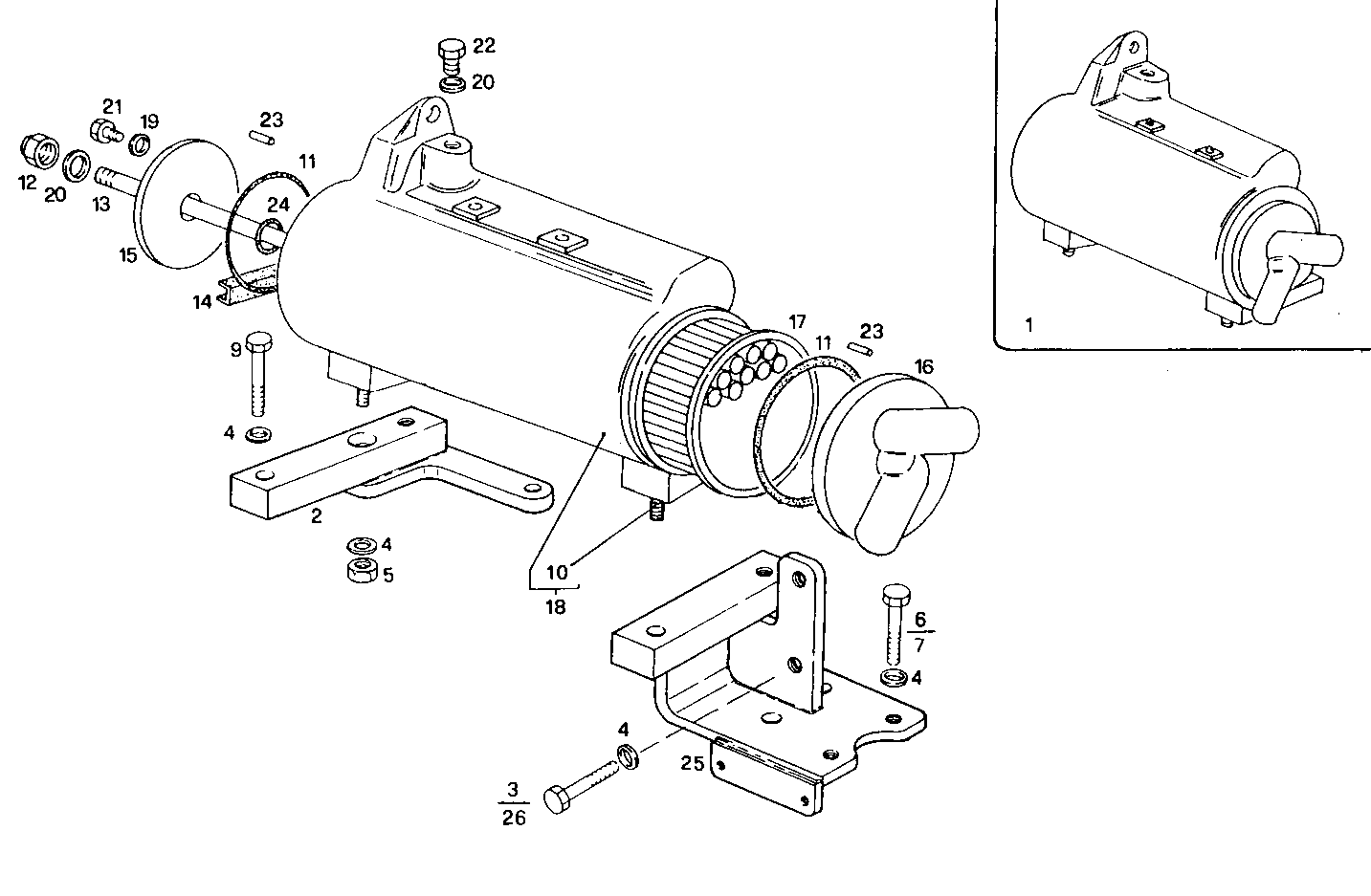

FRESH WATER - SEA WATER HEAT EXCHANGER
8035M06.01A550 — 8035M06
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8107438 | WATER/SEA WATER HEAT EXCH WATER/SEA WATER HEAT EXCH | 1 | |
| 2 | 8020106 | SUPPORT SUPPORT | 1 | |
| 3 | 16608324 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 4 | 17090174 | SPRING WASHER SPRING WASHER | 8 | |
| 5 | 17038221 | HEXAGON NUT HEXAGON NUT | 2 | |
| 6 | 11306921 | SCREW SCREW | 1 | |
| 7 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 13449824 | STUD STUD | 2 | |
| 11 | 4918846 | O-RING O-RING | 2 | |
| 12 | 14056240 | NUT NUT | 1 | |
| 13 | 4919239 | TIE ROD TIE ROD | 1 | |
| 14 | 4927193 | GASKET GASKET | 1 | |
| 15 | 4927722 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 16 | 4927723 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 17 | 4931141 | TUBE STACK TUBE STACK | 1 | |
| 18 | 4933758 | HEAT EXANGER BODY HEAT EXANGER BODY | 1 | |
| 19 | 10284460 | SEAL GASKET SEAL GASKET | 1 | |
| 20 | 10298460 | SEAL GASKET SEAL GASKET | 1 | |
| 21 | 11903140 | PLUG PLUG | 1 | |
| 22 | 11903240 | PLUG PLUG | 1 | |
| 23 | 14158570 | DOWEL PIN DOWEL PIN | 2 | |
| 24 | 17281681 | O-RING O-RING | 1 | |
| 25 | 8020107 | SUPPORT SUPPORT | 1 | |
| 26 | 16608724 | HEXAGON BOLT HEXAGON BOLT | 1 |
