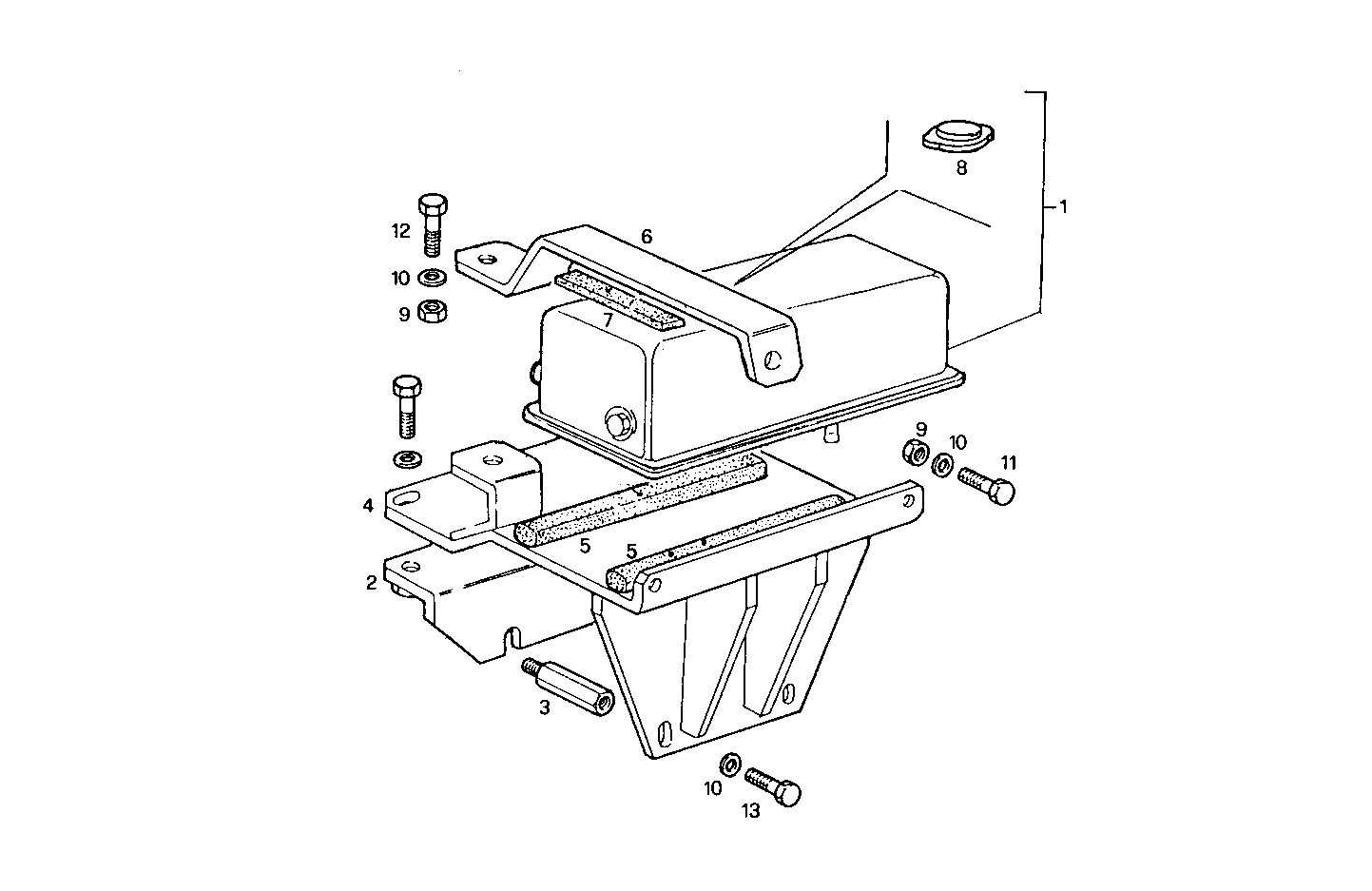

EXPANSION TANK
8035M06.20 — 8035M06
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8108827 | WATER EXPANSION TANK WATER EXPANSION TANK | 1 | |
| 2 | 8108822 | RETAINER RETAINER | 1 | |
| 3 | 8107490 | STUD STUD | 2 | |
| 4 | 8108828 | SUPPORT SUPPORT | 1 | |
| 5 | 8108830 | FELT FELT | 2 | |
| 6 | 8108829 | CLIP CLIP | 2 | |
| 7 | 8109039 | FELT FELT | 2 | |
| 8 | 8109172 | PLUG PLUG | 1 | |
| 9 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 8 | |
| 11 | 16605424 | SCREW SCREW | 2 | |
| 12 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 4 |
