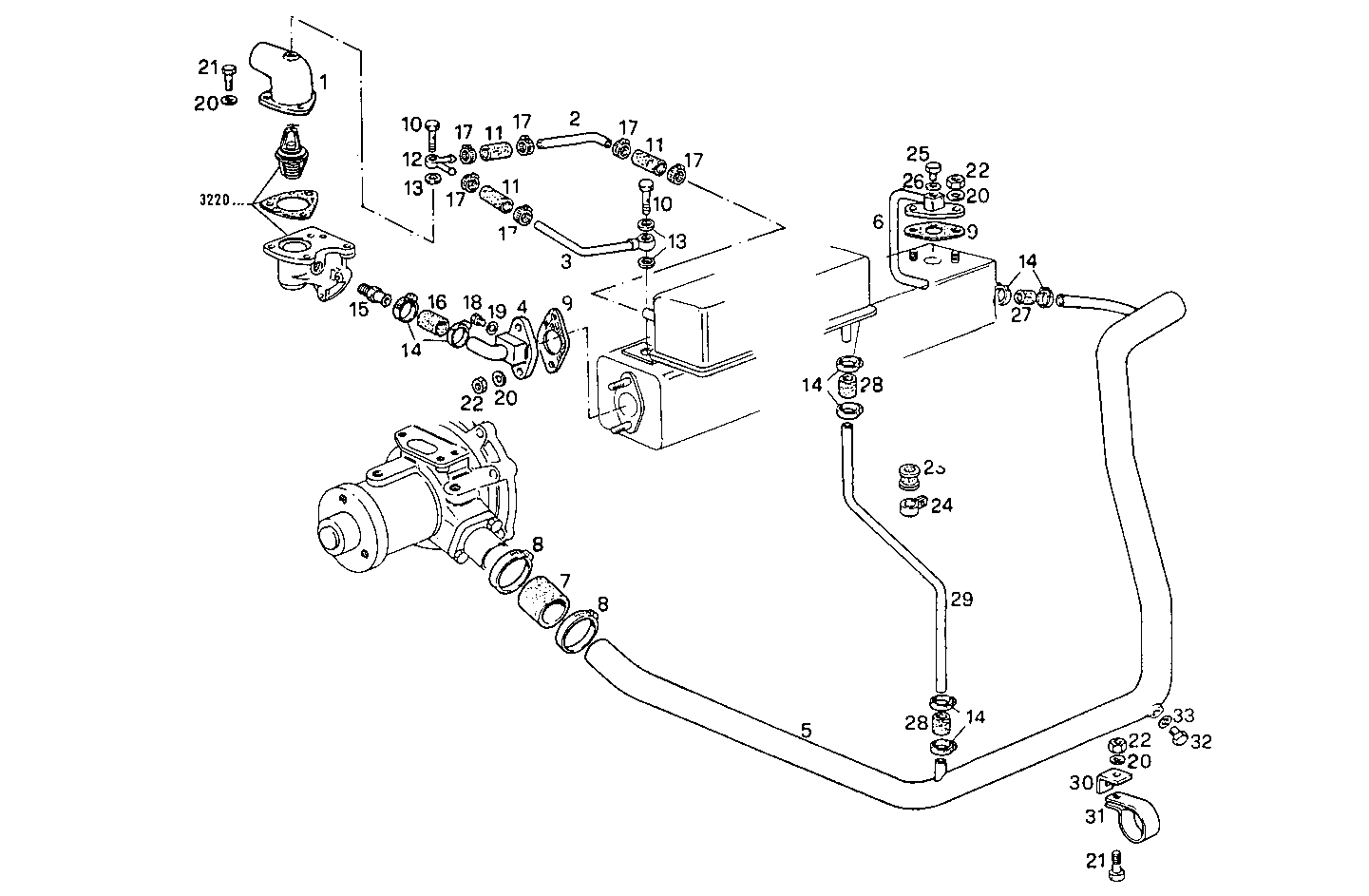

WATER LINES
8035M06.20 — 8035M06
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8107202 | WATER PIPE WATER PIPE | 1 | |
| 2 | 8107522 | WATER PIPE WATER PIPE | 1 | |
| 3 | 8008866 | WATER PIPE WATER PIPE | 1 | |
| 4 | 8107731 | WATER PIPE WATER PIPE | 1 | |
| 5 | 8021608 | WATER PIPE WATER PIPE | 1 | |
| 6 | 8107732 | WATER PIPE WATER PIPE | 1 | |
| 7 | 17742887 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 8 | 17764793 | CLIP CLIP | 2 | |
| 9 | 8009640 | GASKET GASKET | 2 | |
| 10 | 8009696 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 11 | 4927825 | WATER HOSE WATER HOSE | 3 | |
| 12 | 8016190 | PIPE SOCKET PIPE SOCKET | 1 | |
| 13 | 4858607 | WASHER WASHER | 4 | |
| 14 | 17764593 | CLIP CLIP | 8 | |
| 15 | 4760312 | THREADED UNION THREADED UNION | 1 | |
| 16 | 98418717 | WATER HOSE WATER HOSE | 1 | |
| 17 | 18088392 | CLIP CLIP | 6 | |
| 18 | 16992340 | THREADED PLUG THREADED PLUG | 1 | |
| 19 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 20 | 17089474 | SPRING WASHER SPRING WASHER | 5 | |
| 21 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 22 | 17037931 | HEXAGON NUT HEXAGON NUT | 5 | |
| 23 | 4757122 | RUBBER PAD RUBBER PAD | 1 | |
| 24 | 4763804 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 25 | 16992460 | PLUG PLUG | 1 | |
| 26 | 4858609 | WASHER WASHER | 1 | |
| 27 | 98425606 | WATER HOSE WATER HOSE | 1 | |
| 28 | 17737687 | WATER HOSE WATER HOSE | 2 | |
| 29 | 8107523 | WATER PIPE WATER PIPE | 1 | |
| 30 | 4934319 | RETAINER RETAINER | 1 | |
| 31 | 4936741 | CLIP CLIP | 1 | |
| 32 | 16992140 | PLUG PLUG | 2 | |
| 33 | 4858606 | GASKET GASKET | 2 |
