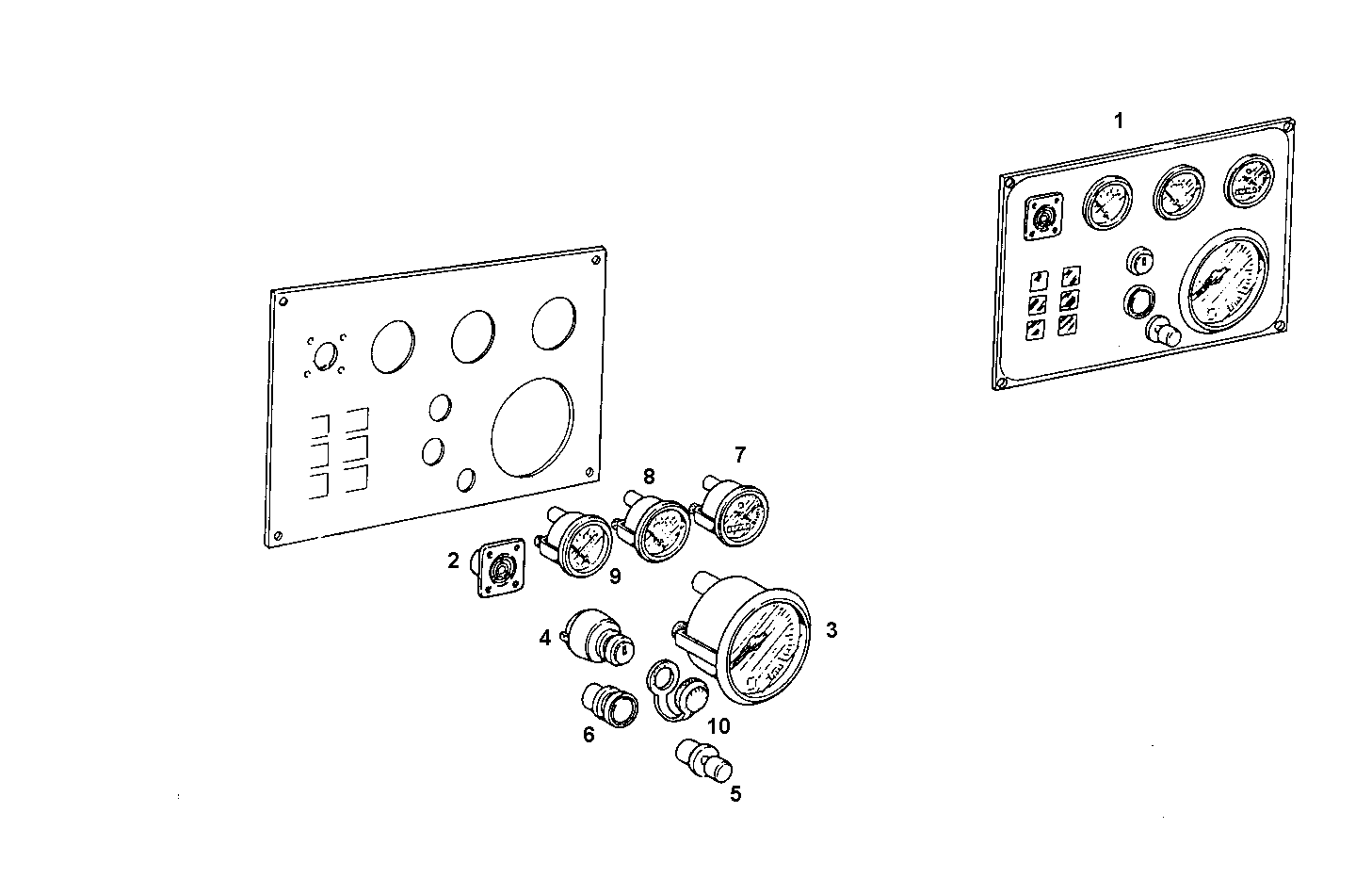

DASH PANEL - 12V - VDO
8035M06.21 — 8035M06
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8025310 | INSTRUMENTS BOARD INSTRUMENTS BOARD | 1 | |
| 2 | 8110230 | ACOUSTIC HORN ACOUSTIC HORN | 1 | |
| 3 | 8030617 | REVOLUTION COUNTER REVOLUTION COUNTER | 1 | |
| 4 | 8103708 | SWITCH SWITCH | 1 | |
| 5 | 8025024 | PUSH BUTTON PUSH BUTTON | 1 | |
| 6 | 8109404 | RELAY RELAY | 1 | |
| 7 | 8030620 | VOLTMETER VOLTMETER | 1 | |
| 8 | 8030618 | THERMOMETER THERMOMETER | 1 | |
| 9 | 8030619 | PRESSURE GAUGE PRESSURE GAUGE | 1 | |
| 10 | 8110226 | CAP CAP | 1 |
