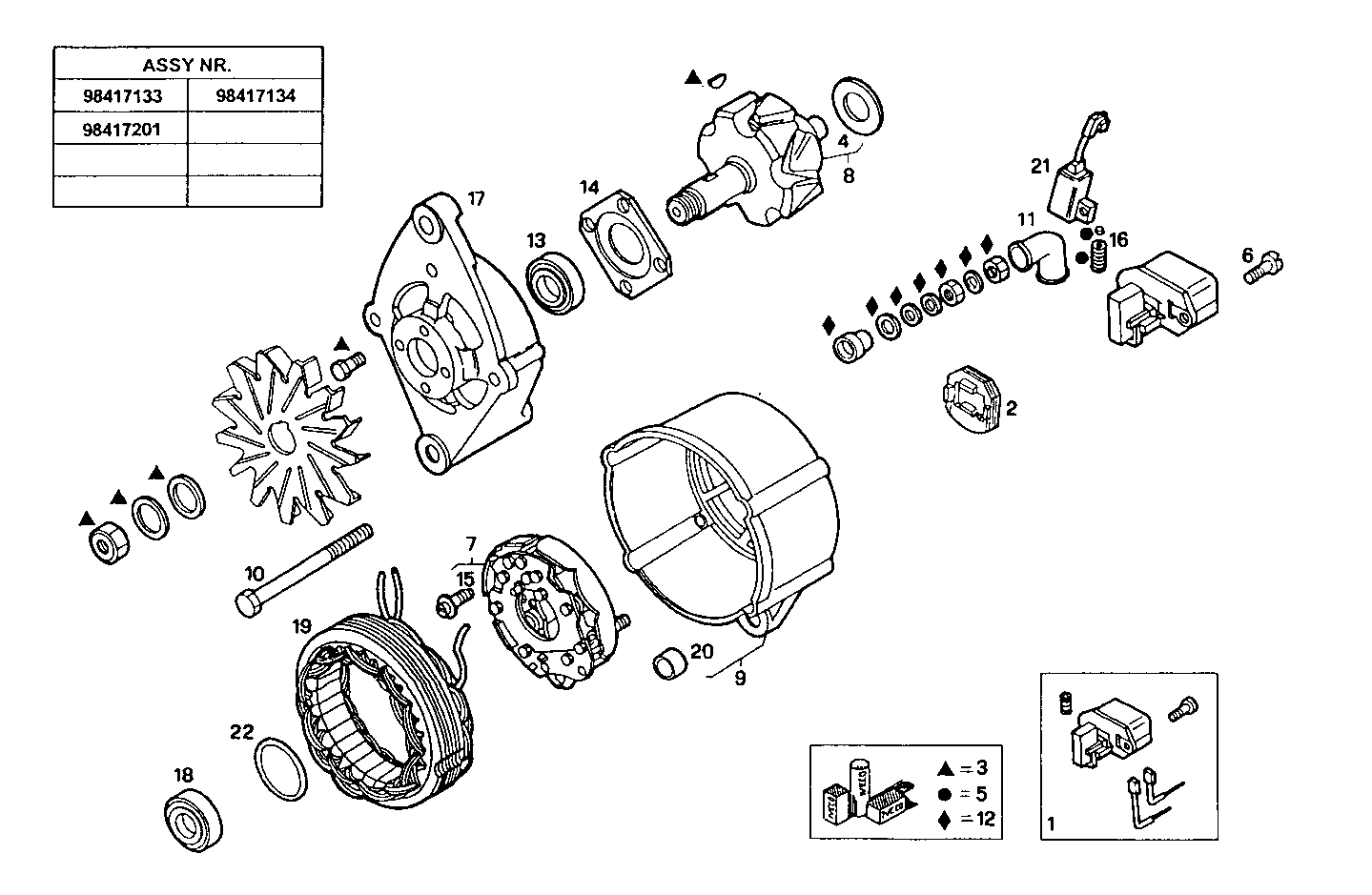

GENERATOR (COMPONENTS)
8040SC25.00 — 8040SC25
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 93158421 | VOLTAGE REGULATOR VOLTAGE REGULATOR | 1 | |
| 2 | 93160245 | GASKET GASKET | 1 | |
| 3 | 1307188 | KIT-GENERATOR KIT-GENERATOR | 1 | |
| 4 | 79078921 | RING RING | 1 | |
| 5 | 93160236 | CARBON BRUSHES CARBON BRUSHES | 1 | |
| 6 | 93160239 | SCREW SCREW | 2 | |
| 7 | 79078926 | RECTIFIER RECTIFIER | 1 | |
| 8 | 93160235 | GENERATOR ROTOR GENERATOR ROTOR | 1 | |
| 9 | 93160238 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 10 | 93160237 | SCREW SCREW | 4 | |
| 11 | 79078925 | CAP CAP | 1 | |
| 12 | 93161165 | KIT-GENERATOR KIT-GENERATOR | 1 | |
| 13 | 1905280 | BALL BEARING BALL BEARING | 1 | |
| 14 | 93155633 | PLATE PLATE | 1 | |
| 15 | 79093985 | SCREW SCREW | 3 | |
| 16 | 42491524 | SPRING SPRING | 2 | |
| 17 | 79022466 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 18 | 1905280 | BALL BEARING BALL BEARING | 1 | |
| 19 | 93160234 | GENERATOR STATOR GENERATOR STATOR | 1 | |
| 20 | 9960120 | BUSH BUSH | 1 | |
| 21 | 79022480 | CONDENSER CONDENSER | 1 | |
| 22 | 79025494 | O-RING O-RING | 1 |
