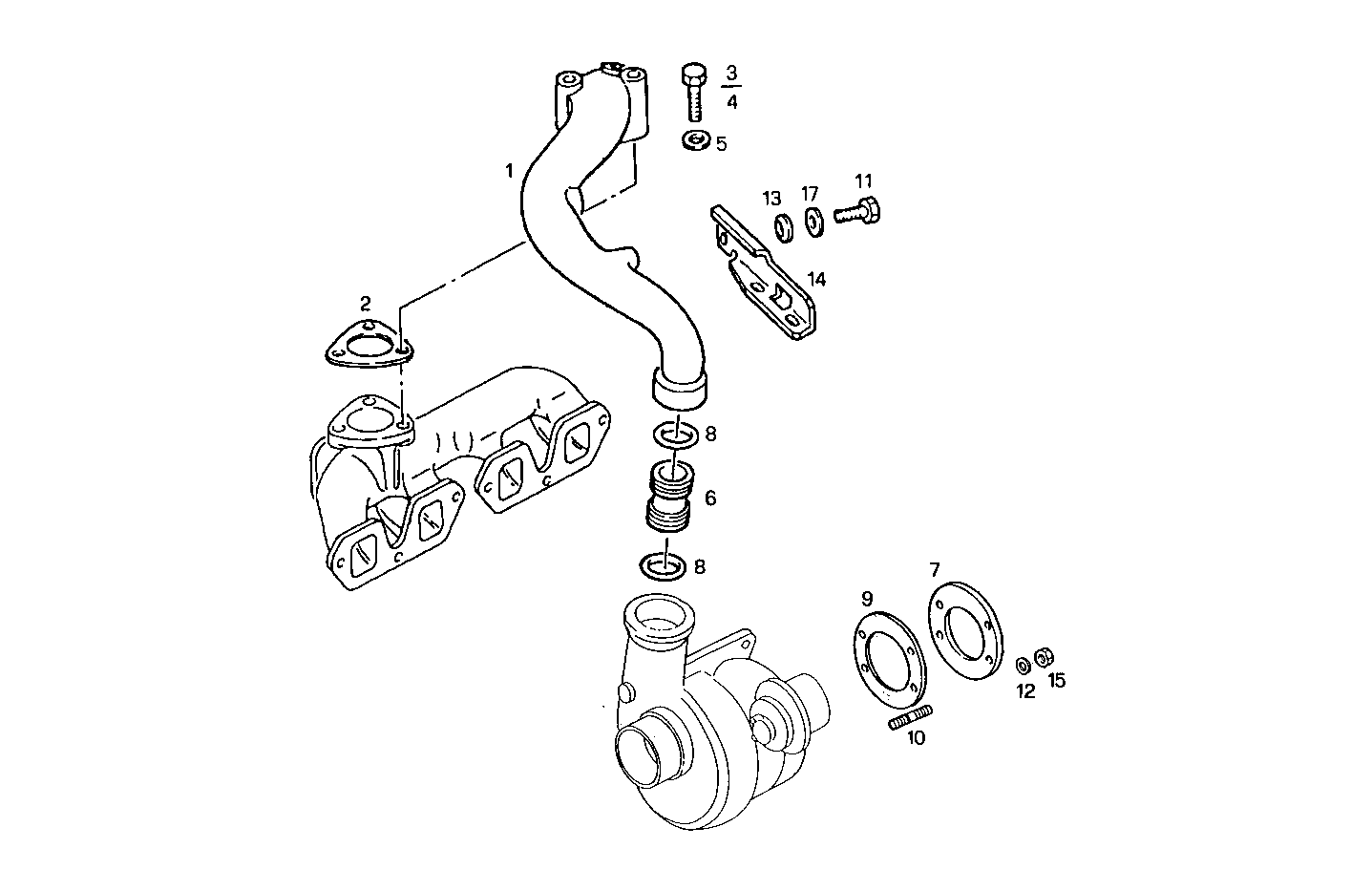

SUPERCHARGING LINES
8040SC25.00A007 — 8040SC25
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4820097 | SUCTION LINE SUCTION LINE | 1 | |
| 2 | 4848529 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 15970911 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 4 | 15971421 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 17095104 | WASHER WASHER | 3 | |
| 6 | 4848530 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 7 | 8018499 | FLANGE FLANGE | 1 | |
| 8 | 17295581 | O-RING O-RING | 1 | |
| 9 | 98428399 | GASKET GASKET | 1 | |
| 10 | 16729424 | STUD STUD | 4 | |
| 11 | 16043521 | SCREW SCREW | 1 | |
| 12 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 13 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 14 | 98416738 | RETAINER RETAINER | 1 | |
| 15 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 17 | 17089474 | SPRING WASHER SPRING WASHER | 1 |
