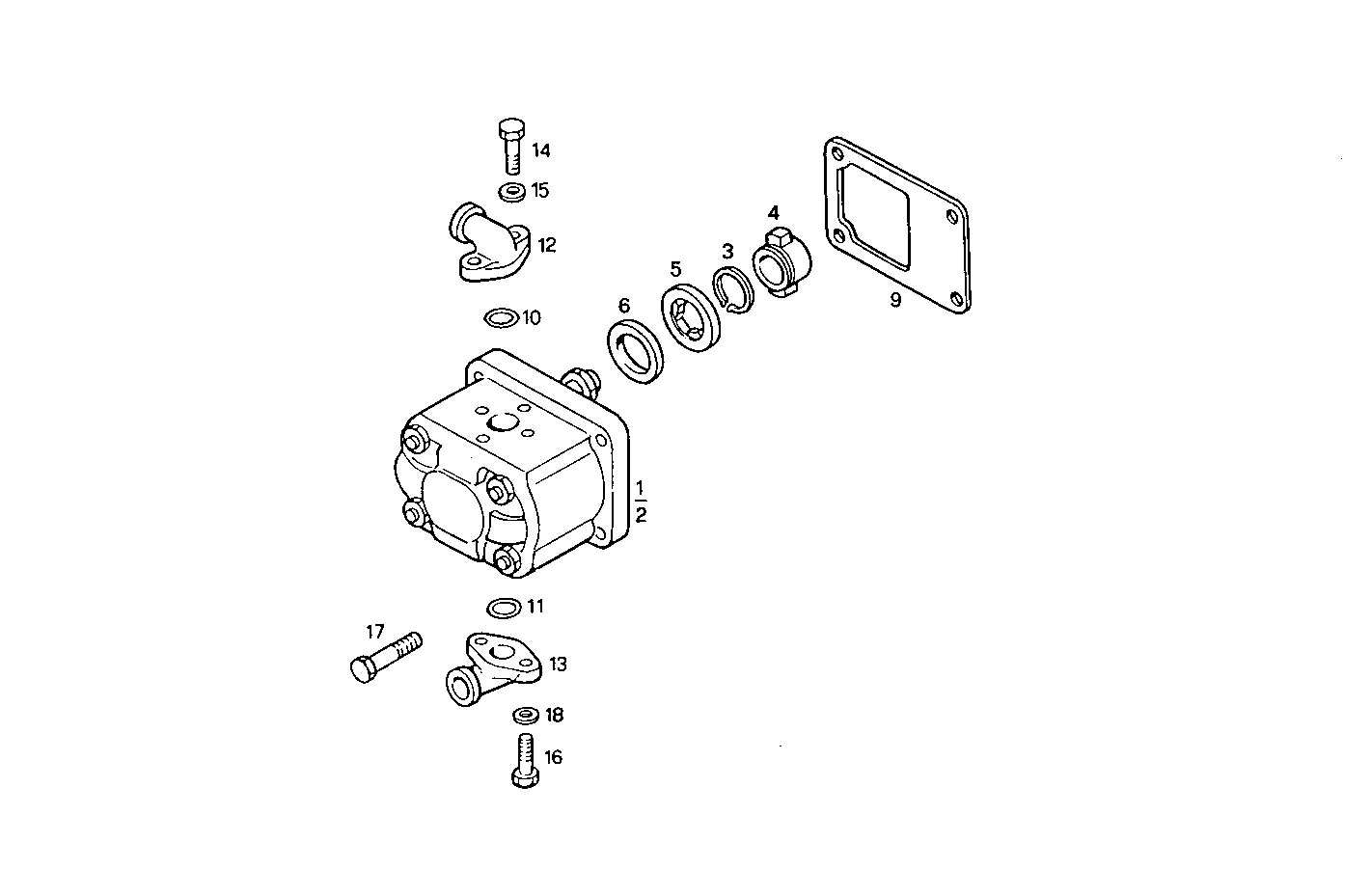

POWER STEERING PUMP
8040SRC21.10A001 — 8040SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 5169039 | HYDRAULIC PUMP HYDRAULIC PUMP | 1 | |
| 2 | 5179728 | HYDRAULIC PUMP HYDRAULIC PUMP | 1 | |
| 3 | 17082776 | SPRING LOCKWASHER SPRING LOCKWASHER | 1 | |
| 4 | 8011614 | HUB HUB | 1 | |
| 5 | 4621358 | RING RING | 1 | |
| 6 | 4609538 | CENTERING RING CENTERING RING | 1 | |
| 9 | 4850986 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 10 | 17281781 | O-RING O-RING | 1 | |
| 11 | 17282181 | O-RING O-RING | 1 | |
| 12 | 4670953 | PIPE SOCKET PIPE SOCKET | 1 | |
| 13 | 4670915 | EXHAUST MANIFOLD EXHAUST MANIFOLD | 1 | |
| 14 | 16689424 | SOCKET-HEAD SCREW SOCKET-HEAD SCREW | 2 | |
| 15 | 17088474 | WASHER WASHER | 2 | |
| 16 | 16690824 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 | |
| 17 | 16600324 | SCREW SCREW | 4 | |
| 18 | 17089474 | SPRING WASHER SPRING WASHER | 2 |
