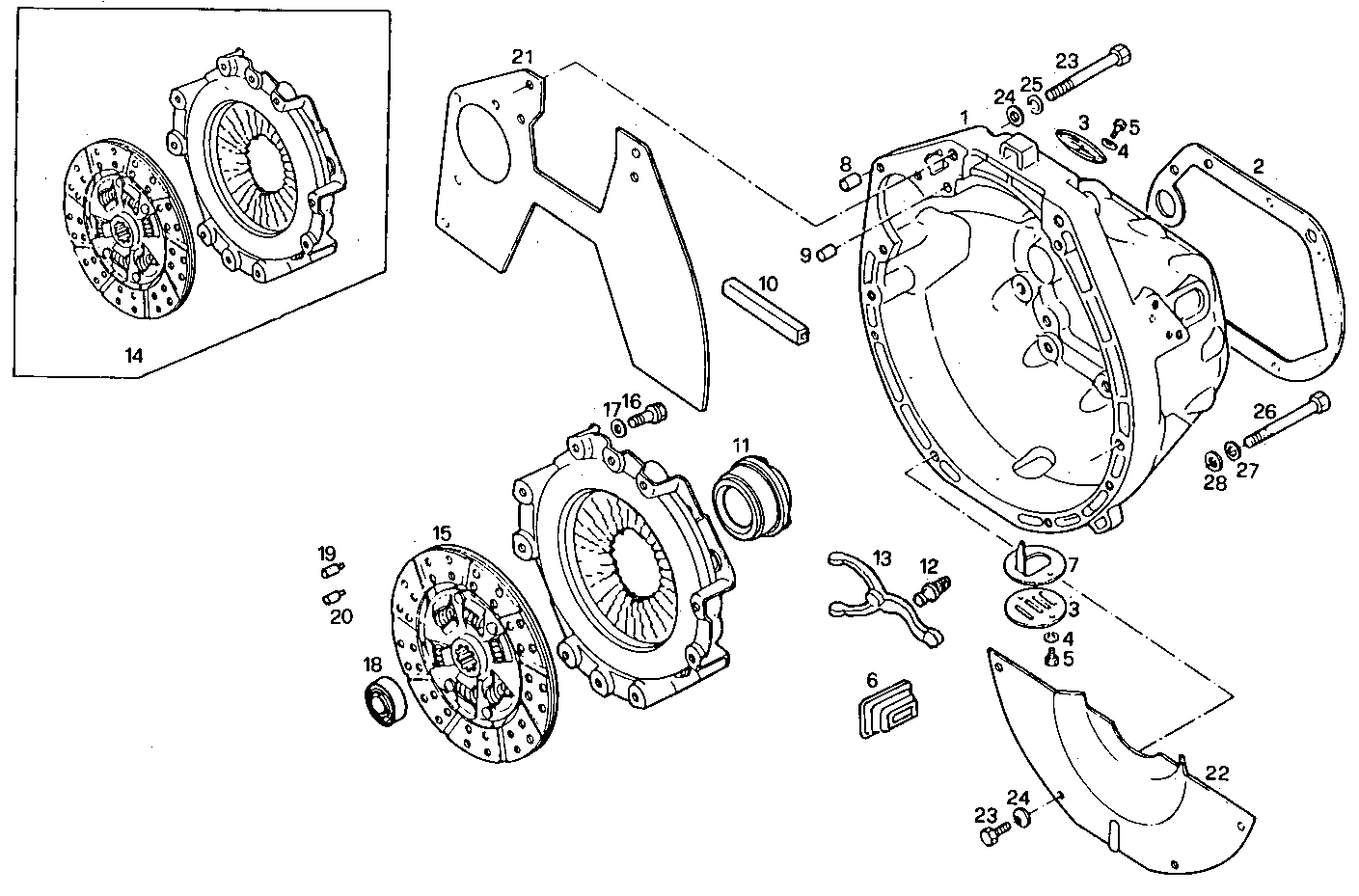

CLUTCH
8040SRC21.10A004 — 8040SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8022024 | COVER COVER | 1 | |
| 2 | 4605259 | FLAT GEARBOX GKT FLAT GEARBOX GKT | 1 | |
| 3 | 4540660 | COVER COVER | 2 | |
| 4 | 17090174 | SPRING WASHER SPRING WASHER | 10 | |
| 5 | 11234721 | HEXAGON BOLT HEXAGON BOLT | 11 | |
| 6 | 4794012 | PROTECTIVE HOOD PROTECTIVE HOOD | 1 | |
| 7 | 4606988 | CONNECTING PLATE CONNECTING PLATE | 1 | |
| 8 | 8022015 | DOWEL PIN DOWEL PIN | 2 | |
| 9 | 4647524 | DOWEL PIN DOWEL PIN | 1 | |
| 10 | 4655043 | RUBBER SECTION RUBBER SECTION | 1 | |
| 11 | 8585082 | RELEASE SLEEVE RELEASE SLEEVE | 1 | |
| 12 | 4577306 | BALL-END PIN BALL-END PIN | 1 | |
| 13 | 4773745 | CLUTCH LEVER CLUTCH LEVER | 1 | |
| 14 | 1903920 | CLUTCH CLUTCH | 1 | |
| 15 | 4853815 | CLUTCH DISC CLUTCH DISC | 1 | |
| 16 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 17 | 17089774 | SPRING WASHER SPRING WASHER | 8 | |
| 18 | 500358297 | BALL BEARING BALL BEARING | 1 | |
| 19 | 570040 | DOWEL PIN DOWEL PIN | 1 | |
| 20 | 570041 | DOWEL PIN DOWEL PIN | 1 | |
| 21 | 8584073 | PROTECTION PROTECTION | 1 | |
| 22 | 8584074 | PROTECTION PROTECTION | 1 | |
| 23 | 16043521 | SCREW SCREW | 4 | |
| 24 | 17089774 | SPRING WASHER SPRING WASHER | 4 | |
| 25 | 17495134 | WASHER WASHER | 4 | |
| 26 | 11116924 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 27 | 16613824 | SCREW SCREW | 2 | |
| 28 | 17095504 | WASHER WASHER | 4 |
