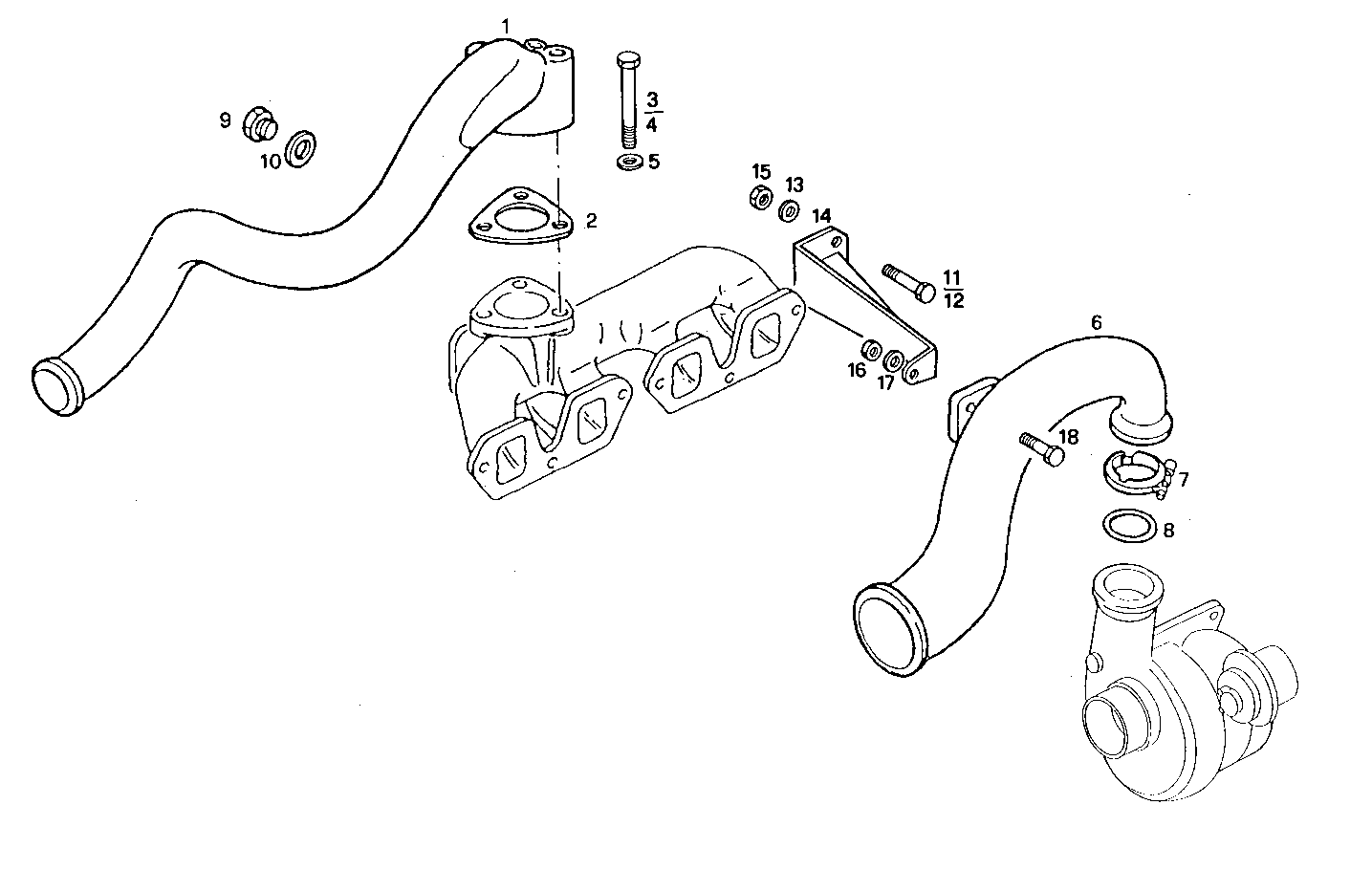

SUPERCHARGING LINES
8040SRC21.10A004 — 8040SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4849408 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 2 | 4848529 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 4 | 16606724 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 17094901 | WASHER WASHER | 3 | |
| 6 | 4845477 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 7 | 4843862 | CLIP CLIP | 1 | |
| 8 | 17283481 | O-RING O-RING | 1 | |
| 9 | 10276711 | THREADED PLUG THREADED PLUG | 2 | |
| 10 | 10265160 | SEAL GASKET SEAL GASKET | 2 | |
| 11 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 16607924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 14 | 98496657 | RETAINER RETAINER | 1 | |
| 15 | 17038221 | HEXAGON NUT HEXAGON NUT | 1 | |
| 16 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 17 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 18 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 1 |
