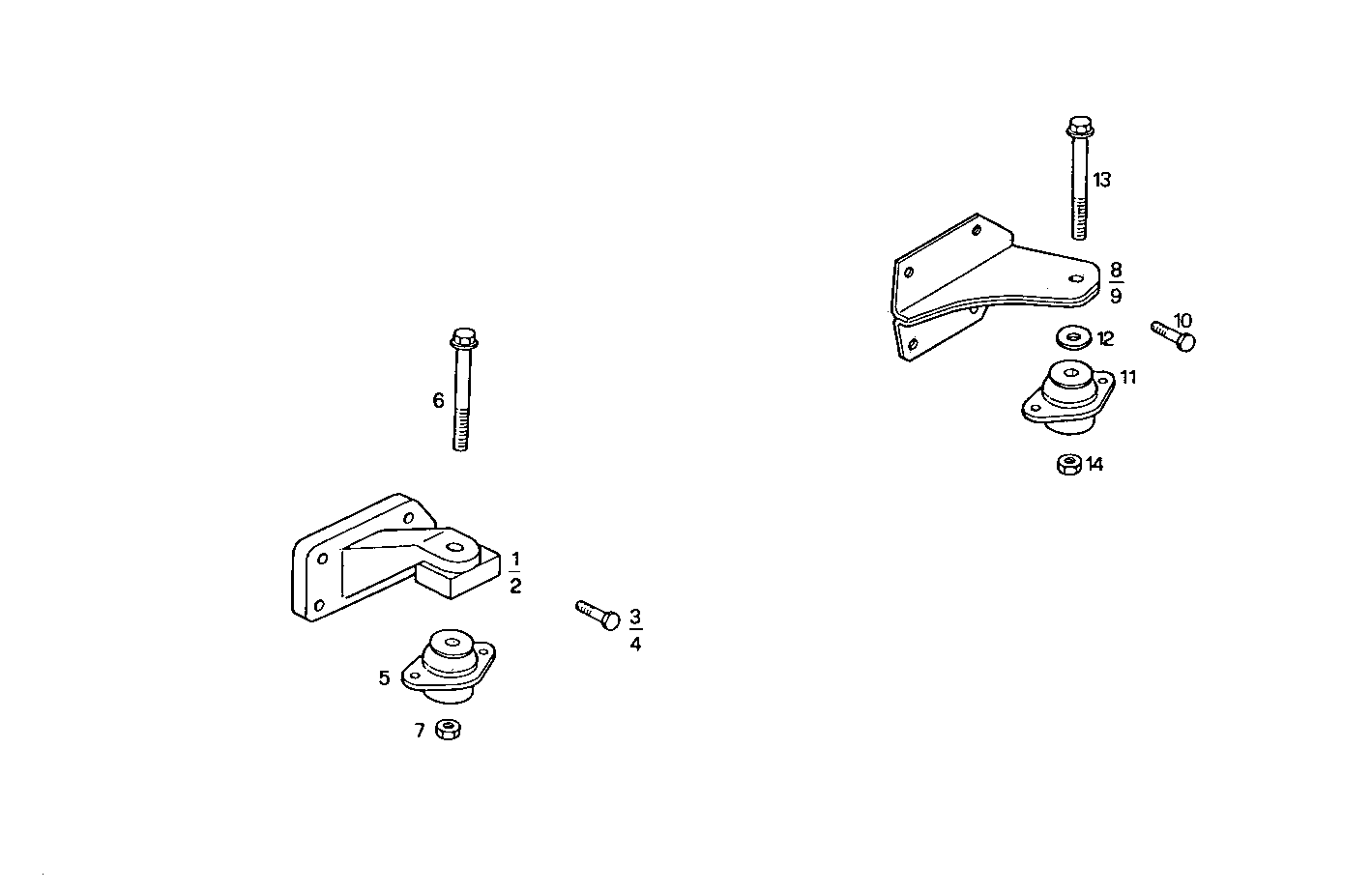

ENGINE MOUNTING AND TRANSMISSION
8040SRC21.11 — 8040SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98420126 | FRONT ENG. MOUNT FRONT ENG. MOUNT | 1 | |
| 2 | 98420127 | FRONT ENG. MOUNT FRONT ENG. MOUNT | 1 | |
| 3 | 16678034 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 4 | 16677834 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 5 | 98420115 | FRONT ENG. MOUNT FRONT ENG. MOUNT | 2 | |
| 6 | 16683434 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 7 | 17309331 | HEXAGON NUT HEXAGON NUT | 2 | |
| 8 | 98434151 | SUPPORT SUPPORT | 1 | |
| 9 | 98434154 | SUPPORT SUPPORT | 1 | |
| 10 | 16675734 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 11 | 98412048 | REAR ENG. MOUNT REAR ENG. MOUNT | 2 | |
| 12 | 8127225 | WASHER WASHER | 4 | |
| 13 | 16679034 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 16984431 | HEXAGON NUT HEXAGON NUT | 2 |
