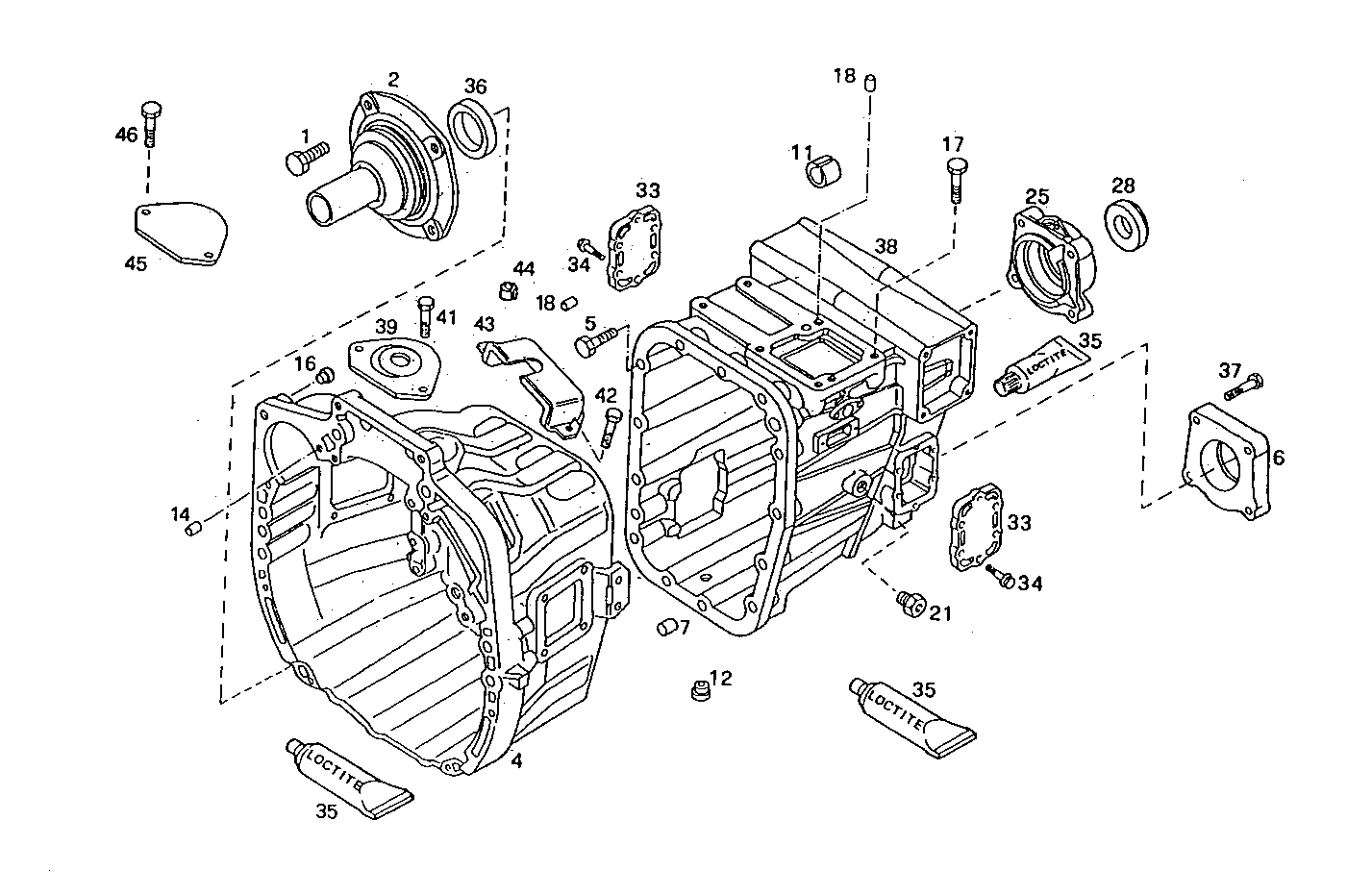

TRANSMISSION
8040SRC21.11 — 8040SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16587124 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 2 | 8859335 | FRONT G.BOX COVER FRONT G.BOX COVER | 1 | |
| 4 | 8867832 | CLUTCH HOUSING CLUTCH HOUSING | 1 | |
| 5 | 16592724 | HEXAGON BOLT HEXAGON BOLT | 13 | |
| 6 | 8858971 | COVER COVER | 1 | |
| 7 | 8860543 | DOWEL PIN DOWEL PIN | 2 | |
| 11 | 8863152 | BUSH BUSH | 1 | |
| 12 | 16998511 | THREADED PLUG THREADED PLUG | 1 | |
| 14 | 8867613 | DOWEL PIN DOWEL PIN | 2 | |
| 16 | 4647524 | DOWEL PIN DOWEL PIN | 1 | |
| 17 | 16587424 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 18 | 8868506 | DOWEL PIN DOWEL PIN | 2 | |
| 21 | 16996511 | THREADED PLUG THREADED PLUG | 1 | |
| 25 | 8859216 | REAR G.BOX COVER REAR G.BOX COVER | 1 | |
| 28 | 40100503 | SHAFT SEAL SHAFT SEAL | 1 | |
| 33 | 8859471 | SIDE G.BOX COVER SIDE G.BOX COVER | 2 | |
| 34 | 16587224 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 35 | 1905685 | ADHESIVE/STICKER ADHESIVE/STICKER | 1 | |
| 36 | 40101843 | SHAFT SEAL SHAFT SEAL | 1 | |
| 37 | 16588024 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 38 | 8859032 | TRANSMISSION CASE TRANSMISSION CASE | 1 | |
| 39 | 4852908 | COVER COVER | 1 | |
| 41 | 16585724 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 42 | 16586224 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 43 | 500302876 | COVER COVER | 1 | |
| 44 | 4852907 | INSULATING RING INSULATING RING | 1 | |
| 45 | 98485047 | COVER COVER | 1 | |
| 46 | 16586224 | HEXAGON BOLT HEXAGON BOLT | 2 |
