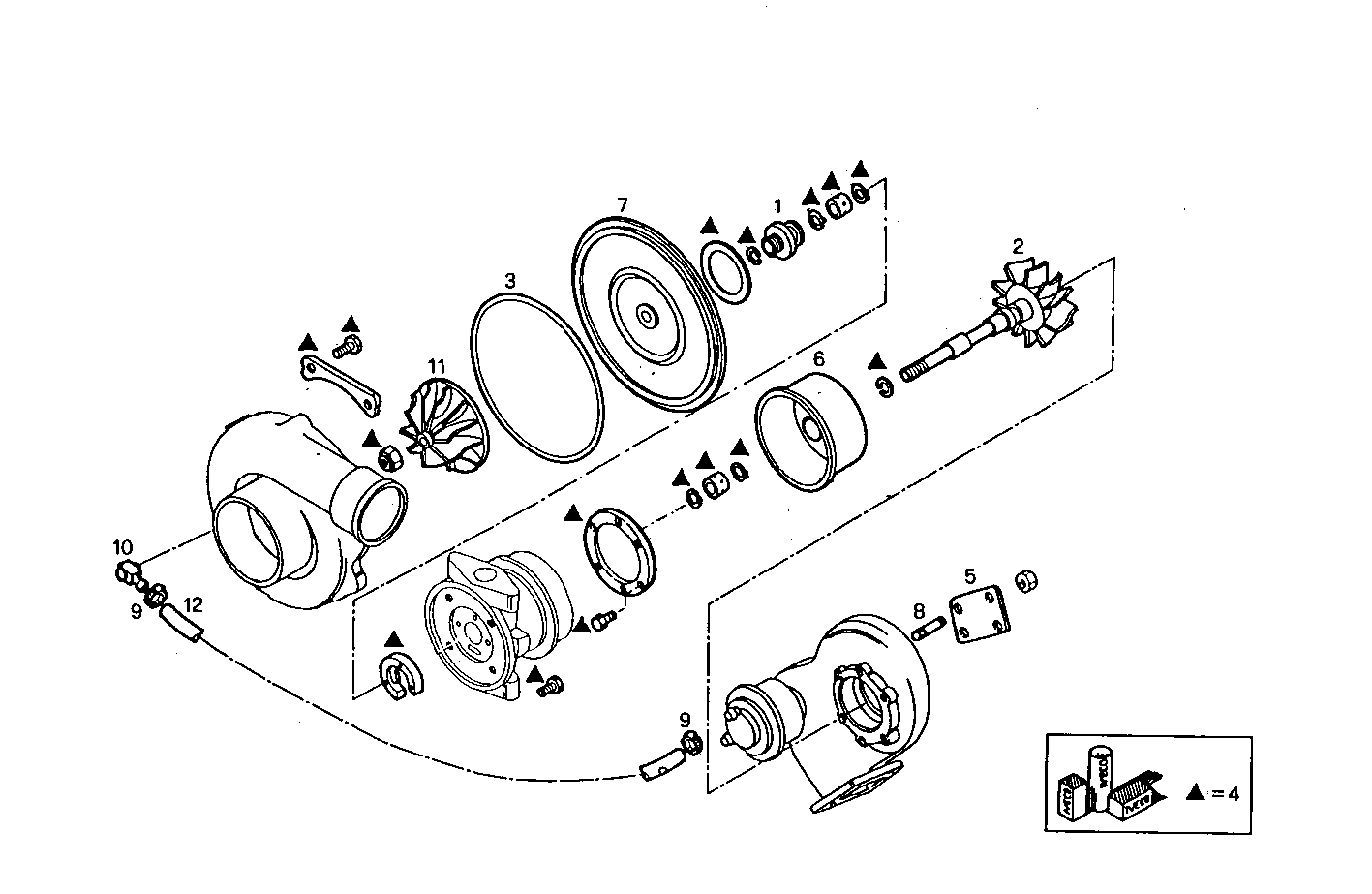

TURBOCHARGER
8040SRC21.11 — 8040SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 93158159 | THREADED UNION THREADED UNION | 1 | |
| 2 | 93158158 | TURBINE WHEEL TURBINE WHEEL | 1 | |
| 3 | 93158157 | WASHER WASHER | 1 | |
| 4 | 8124722 | KIT-TURBOCHARGER KIT-TURBOCHARGER | 1 | |
| 5 | 8198409 | GASKET GASKET | 1 | |
| 6 | 8198412 | COVER COVER | 1 | |
| 7 | 8198413 | PLATE PLATE | 1 | |
| 8 | 8198414 | STUD STUD | 4 | |
| 9 | 8198578 | CLIP CLIP | 2 | |
| 10 | 8198580 | HOSE NIPPLE HOSE NIPPLE | 1 | |
| 11 | 8198581 | TURBINE WHEEL TURBINE WHEEL | 1 | |
| 12 | 93160136 | OIL HOSE OIL HOSE | 1 |
