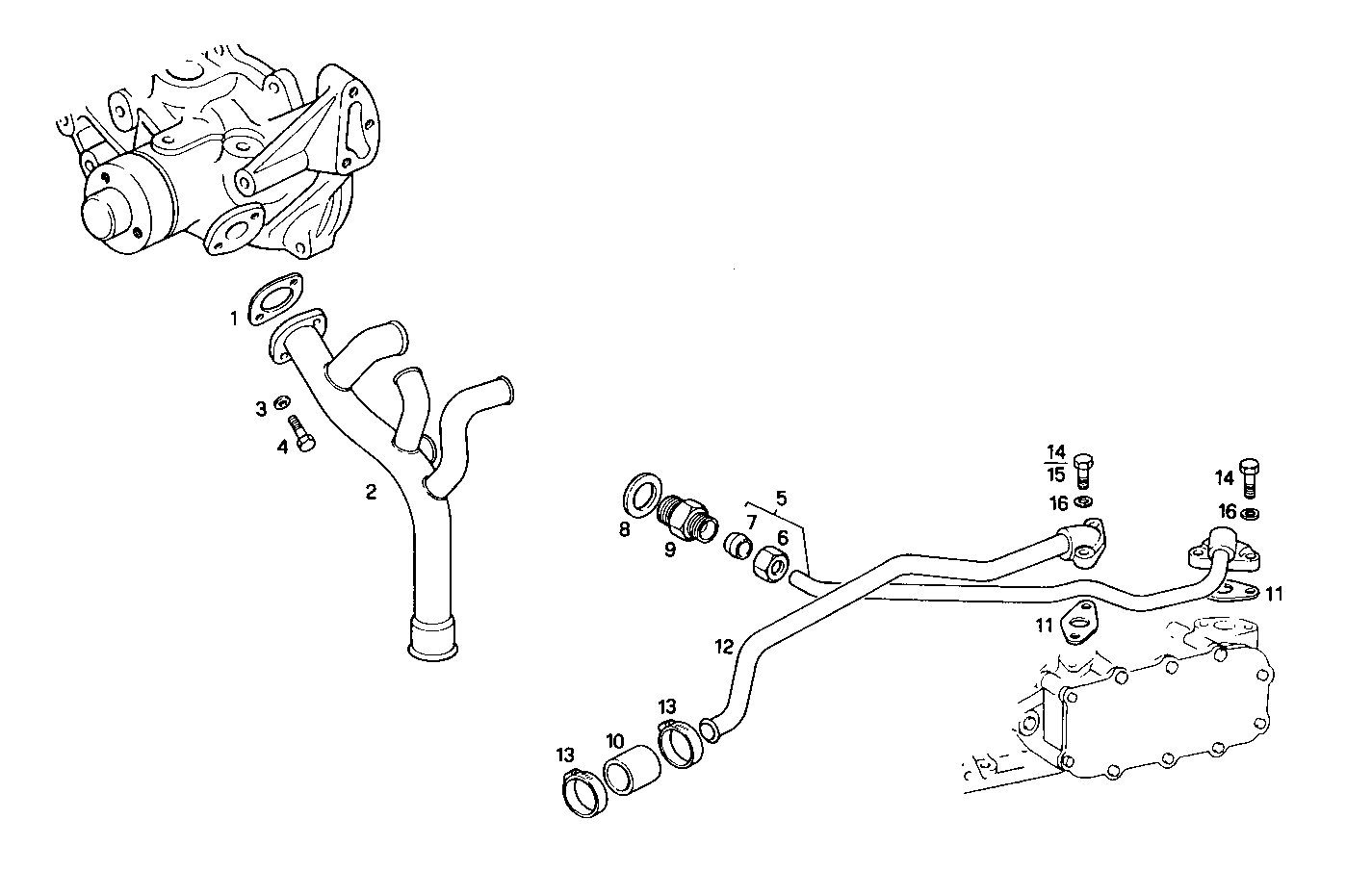

WATER LINES
8040SRC21.11A005 — 8040SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4852556 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 2 | 98432272 | WATER PIPE WATER PIPE | 1 | |
| 3 | 17094914 | WASHER WASHER | 2 | |
| 4 | 98401723 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 98418651 | WATER PIPE WATER PIPE | 1 | |
| 6 | 16507111 | NUT NUT | 1 | |
| 7 | 16507811 | GASKET GASKET | 1 | |
| 8 | 16570660 | SEAL GASKET SEAL GASKET | 1 | |
| 9 | 16500514 | THREADED UNION THREADED UNION | 1 | |
| 10 | 98418717 | WATER HOSE WATER HOSE | 1 | |
| 11 | 4853970 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 12 | 98418659 | WATER PIPE WATER PIPE | 1 | |
| 13 | 17764592 | CLIP CLIP | 2 | |
| 14 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 15 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 17089474 | SPRING WASHER SPRING WASHER | 4 |
