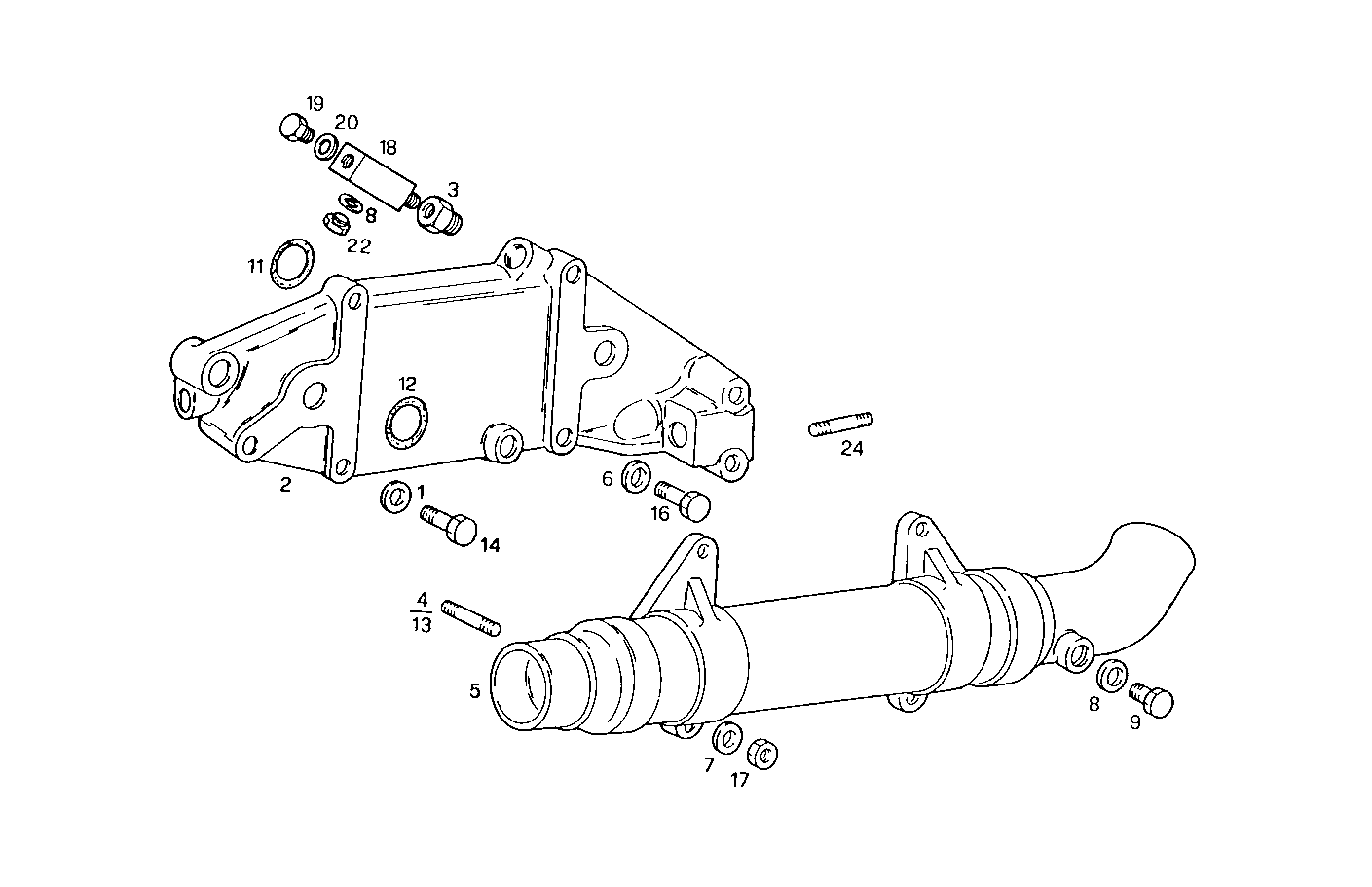

OIL - WATER HEAT EXCHANGER
8040SRM16.10 — 8040SRM16
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 10519601 | WASHER WASHER | 5 | |
| 2 | 98481924 | SUPPORT SUPPORT | 1 | |
| 3 | 4928337 | PIPE SOCKET PIPE SOCKET | 1 | |
| 4 | 16729624 | STUD STUD | 1 | |
| 5 | 8109801 | OIL/WATER HEAT EXCHANGER OIL/WATER HEAT EXCHANGER | 1 | |
| 6 | 11198379 | SPRING WASHER SPRING WASHER | 1 | |
| 7 | 17094914 | WASHER WASHER | 4 | |
| 8 | 4858606 | GASKET GASKET | 3 | |
| 9 | 16992140 | PLUG PLUG | 1 | |
| 10 | 14328501 | LOCK PLUG LOCK PLUG | 1 | |
| 11 | 17282081 | O-RING O-RING | 2 | |
| 12 | 14457581 | O-RING O-RING | 2 | |
| 13 | 16729324 | STUD STUD | 3 | |
| 14 | 16604924 | SCREW SCREW | 5 | |
| 16 | 15888721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 17 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 18 | 4929576 | PIPE SOCKET PIPE SOCKET | 1 | |
| 19 | 16992240 | THREADED PLUG THREADED PLUG | 1 | |
| 20 | 4858607 | WASHER WASHER | 1 | |
| 22 | 16992140 | PLUG PLUG | 2 | |
| 24 | 16736024 | STUD STUD | 1 |
