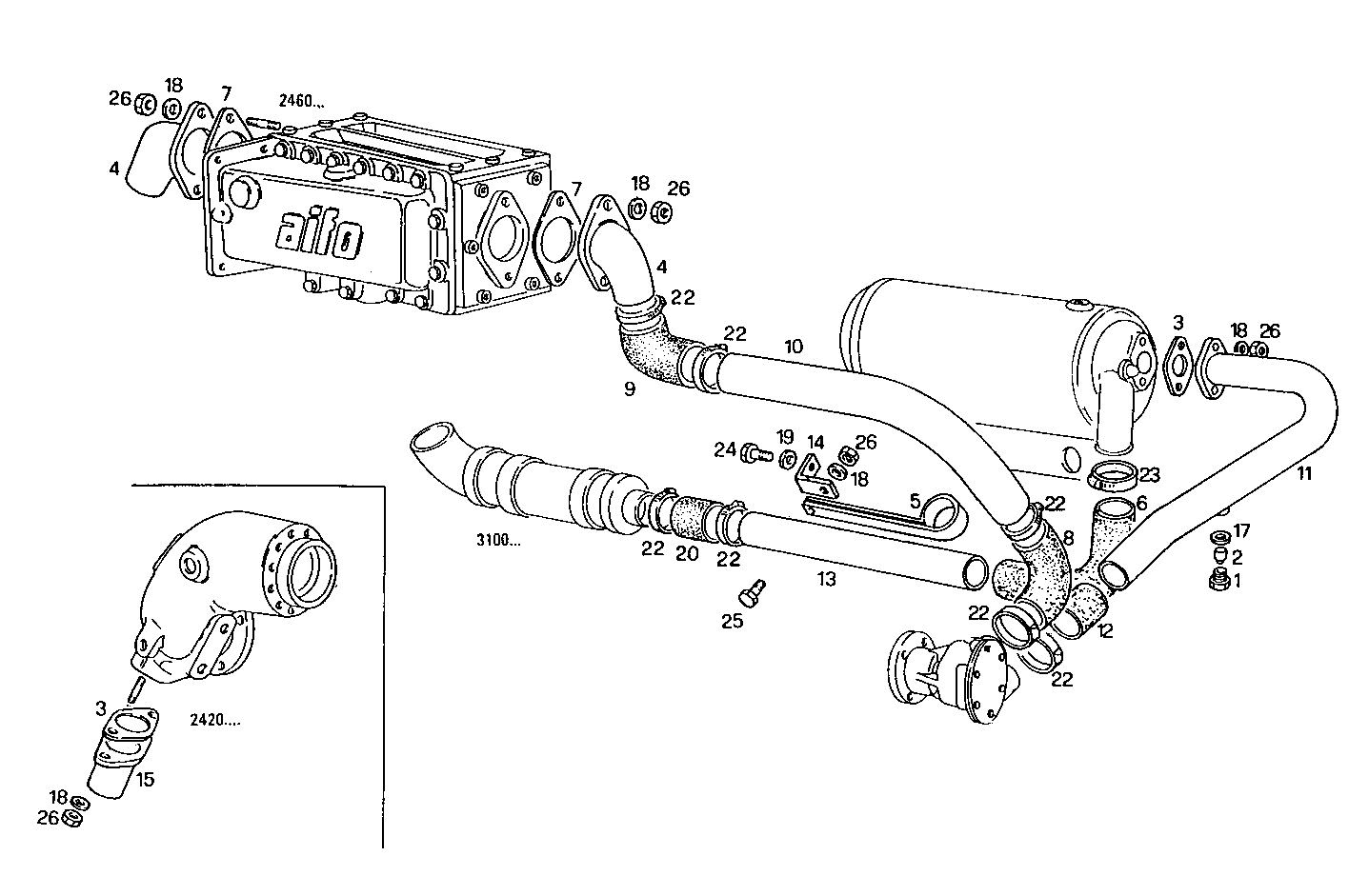

SEA WATER LINES
8040SRM16.10 — 8040SRM16
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4917793 | PLUG PLUG | 1 | |
| 2 | 8105277 | SACRIFICAL ANODE SACRIFICAL ANODE | 1 | |
| 3 | 8008755 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 4 | 4936734 | WATER PIPE WATER PIPE | 2 | |
| 5 | 8103077 | CLIP CLIP | 1 | |
| 6 | 4936760 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 7 | 4936793 | GASKET GASKET | 2 | |
| 8 | 8100546 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 9 | 8102099 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 10 | 8111071 | WATER PIPE WATER PIPE | 1 | |
| 11 | 8023085 | WATER PIPE WATER PIPE | 1 | |
| 12 | 8100546 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 13 | 8023086 | WATER PIPE WATER PIPE | 1 | |
| 14 | 8023122 | RETAINER RETAINER | 1 | |
| 15 | 8112744 | WATER PIPE WATER PIPE | 1 | |
| 17 | 4858610 | WASHER WASHER | 1 | |
| 18 | 17089474 | SPRING WASHER SPRING WASHER | 10 | |
| 19 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 20 | 17742687 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 22 | 17764793 | CLIP CLIP | 10 | |
| 23 | 17764893 | CLIP CLIP | 1 | |
| 24 | 15970321 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 25 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 26 | 17037931 | HEXAGON NUT HEXAGON NUT | 9 |
