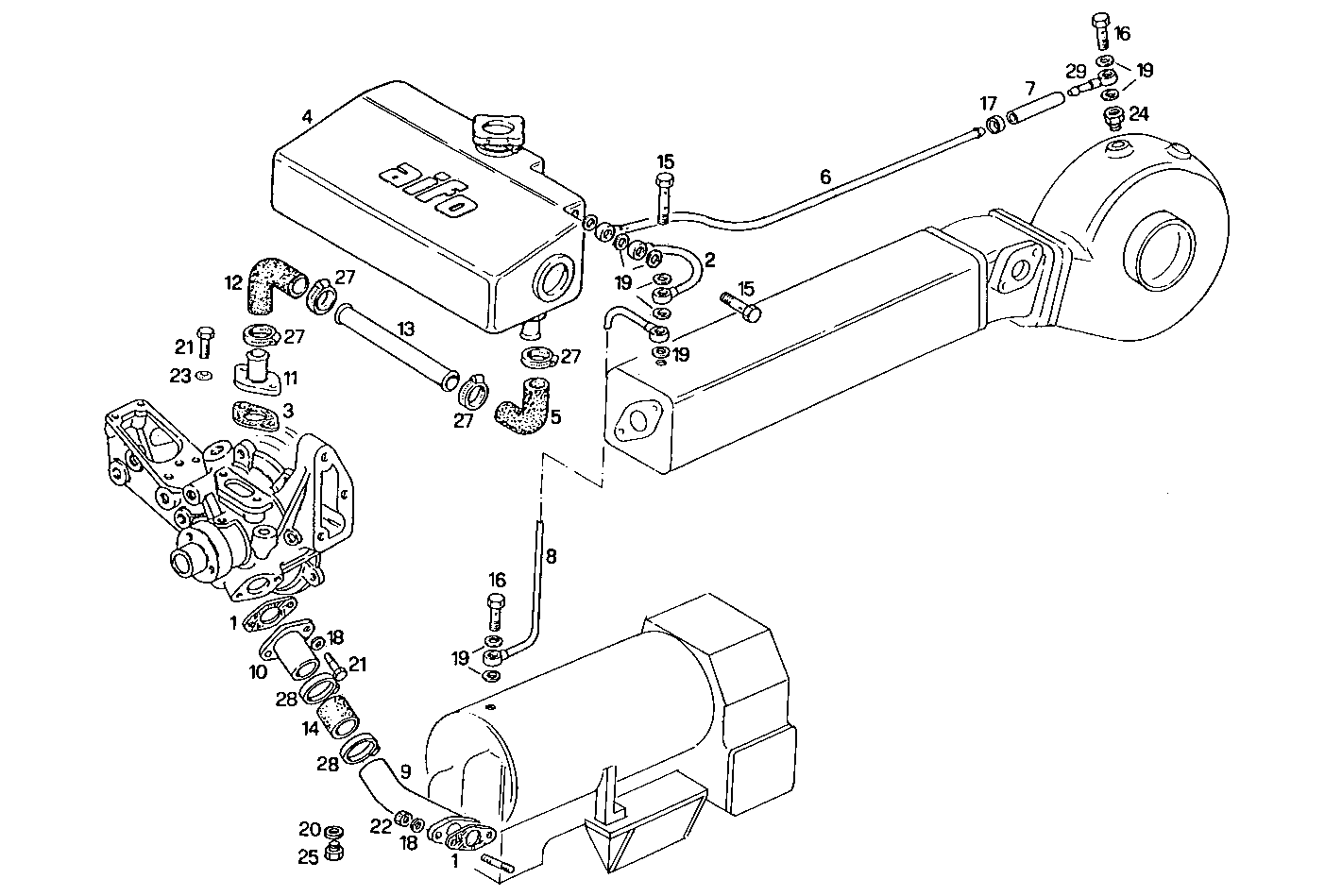

WATER LINES
8040SRM16.10 — 8040SRM16
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98418621 | GASKET GASKET | 2 | |
| 2 | 8011343 | WATER PIPE WATER PIPE | 1 | |
| 3 | 98417182 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 4 | 8109335 | WATER EXPANSION TANK WATER EXPANSION TANK | 1 | |
| 5 | 4616762 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 6 | 8023089 | WATER PIPE WATER PIPE | 1 | |
| 7 | 98421396 | WATER HOSE WATER HOSE | 1 | |
| 8 | 8011348 | WATER PIPE WATER PIPE | 1 | |
| 9 | 8110805 | WATER PIPE WATER PIPE | 1 | |
| 10 | 4800147 | PIPE PIPE | 1 | |
| 11 | 8108080 | WATER PIPE WATER PIPE | 1 | |
| 12 | 8108085 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 13 | 8108078 | WATER PIPE WATER PIPE | 1 | |
| 14 | 17742887 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 15 | 8012607 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 16 | 4864082 | BANJO BOLT BANJO BOLT | 2 | |
| 17 | 18087993 | CLIP CLIP | 1 | |
| 18 | 17094914 | WASHER WASHER | 2 | |
| 19 | 4858607 | WASHER WASHER | 8 | |
| 20 | 4858606 | GASKET GASKET | 1 | |
| 21 | 98401723 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 22 | 17037931 | HEXAGON NUT HEXAGON NUT | 6 | |
| 23 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 24 | 8111062 | PIPE SOCKET PIPE SOCKET | 1 | |
| 25 | 16992140 | PLUG PLUG | 1 | |
| 27 | 17764593 | CLIP CLIP | 4 | |
| 28 | 17764793 | CLIP CLIP | 2 | |
| 29 | 98405514 | PIPE SOCKET PIPE SOCKET | 1 |
