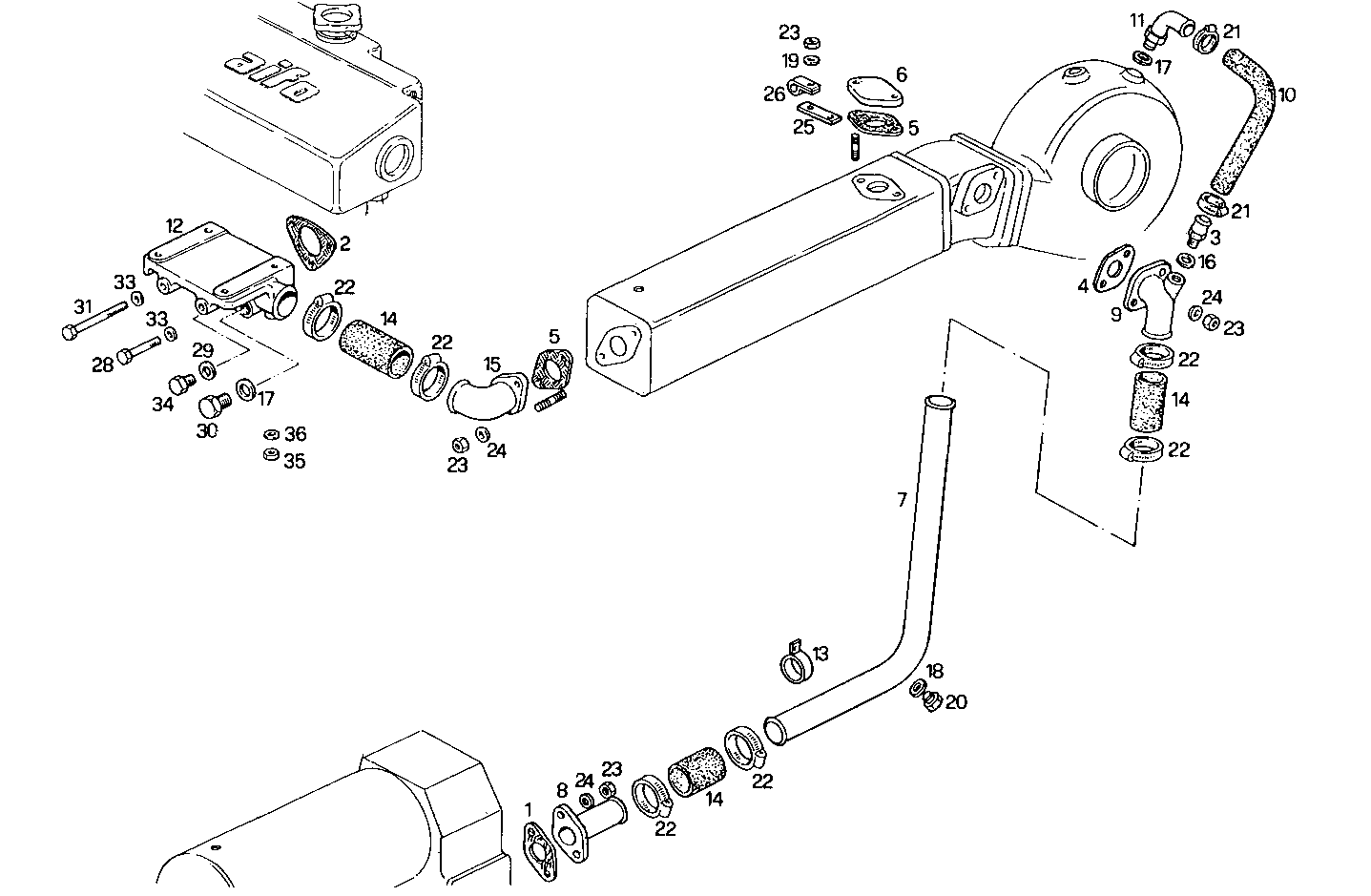

WATER LINES
8040SRM16.10 — 8040SRM16
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98418621 | GASKET GASKET | 1 | |
| 2 | 4851926 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 4633506 | THREADED UNION THREADED UNION | 1 | |
| 4 | 98412164 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 5 | 8009640 | GASKET GASKET | 2 | |
| 6 | 8100154 | COVER COVER | 1 | |
| 7 | 8111057 | WATER PIPE WATER PIPE | 1 | |
| 8 | 8100081 | WATER PIPE WATER PIPE | 1 | |
| 9 | 8111058 | WATER PIPE WATER PIPE | 1 | |
| 10 | 8112680 | WATER HOSE WATER HOSE | 1 | |
| 11 | 4527314 | PIPE SOCKET PIPE SOCKET | 1 | |
| 12 | 4930459 | SUPPORT SUPPORT | 1 | |
| 13 | 4936741 | CLIP CLIP | 1 | |
| 14 | 17742887 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 15 | 4919235 | WATER PIPE WATER PIPE | 1 | |
| 16 | 10263460 | WASHER WASHER | 1 | |
| 17 | 10263460 | WASHER WASHER | 1 | |
| 18 | 4858606 | GASKET GASKET | 1 | |
| 19 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 20 | 16992140 | PLUG PLUG | 1 | |
| 21 | 17764593 | CLIP CLIP | 2 | |
| 22 | 17764793 | CLIP CLIP | 4 | |
| 23 | 17037931 | HEXAGON NUT HEXAGON NUT | 8 | |
| 24 | 17094914 | WASHER WASHER | 8 | |
| 25 | 4787181 | SUPPORT SUPPORT | 1 | |
| 26 | 17316390 | CLIP CLIP | 1 | |
| 28 | 16605424 | SCREW SCREW | 1 | |
| 29 | 4858609 | WASHER WASHER | 1 | |
| 30 | 16992640 | PLUG PLUG | 1 | |
| 31 | 15972921 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 33 | 17095104 | WASHER WASHER | 3 | |
| 34 | 16992440 | THREADED PLUG THREADED PLUG | 1 | |
| 35 | 17038121 | HEXAGON NUT HEXAGON NUT | 4 | |
| 36 | 17095104 | WASHER WASHER | 4 |
