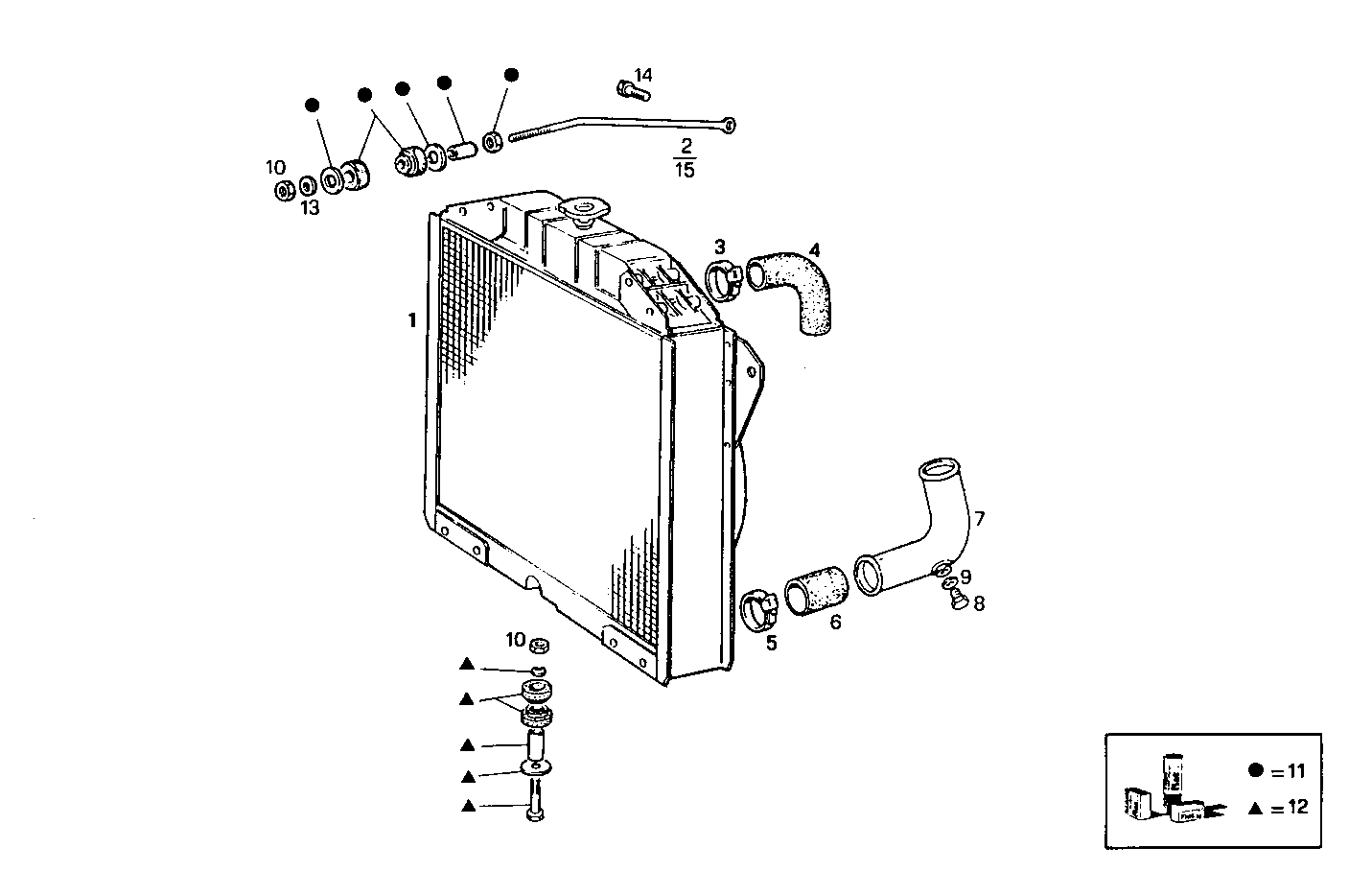

RADIATOR FOR SETTING TILL MAX POWER
8041C05.05 — 8041C05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8009087 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 8108041 | TIE ROD TIE ROD | 1 | |
| 3 | 17764891 | CLIP CLIP | 2 | |
| 4 | 4950088 | WATER PIPE WATER PIPE | 1 | |
| 5 | 17764792 | HOSE CLIP HOSE CLIP | 4 | |
| 6 | 10136187 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 7 | 8108033 | WATER PIPE WATER PIPE | 1 | |
| 8 | 16992111 | THREADED PLUG THREADED PLUG | 1 | |
| 9 | 4858606 | GASKET GASKET | 1 | |
| 10 | 17038221 | HEXAGON NUT HEXAGON NUT | 4 | |
| 11 | 8090413 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 12 | 8090341 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 13 | 17090274 | WASHER WASHER | 2 | |
| 14 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 15 | 8108042 | TIE ROD TIE ROD | 1 |
