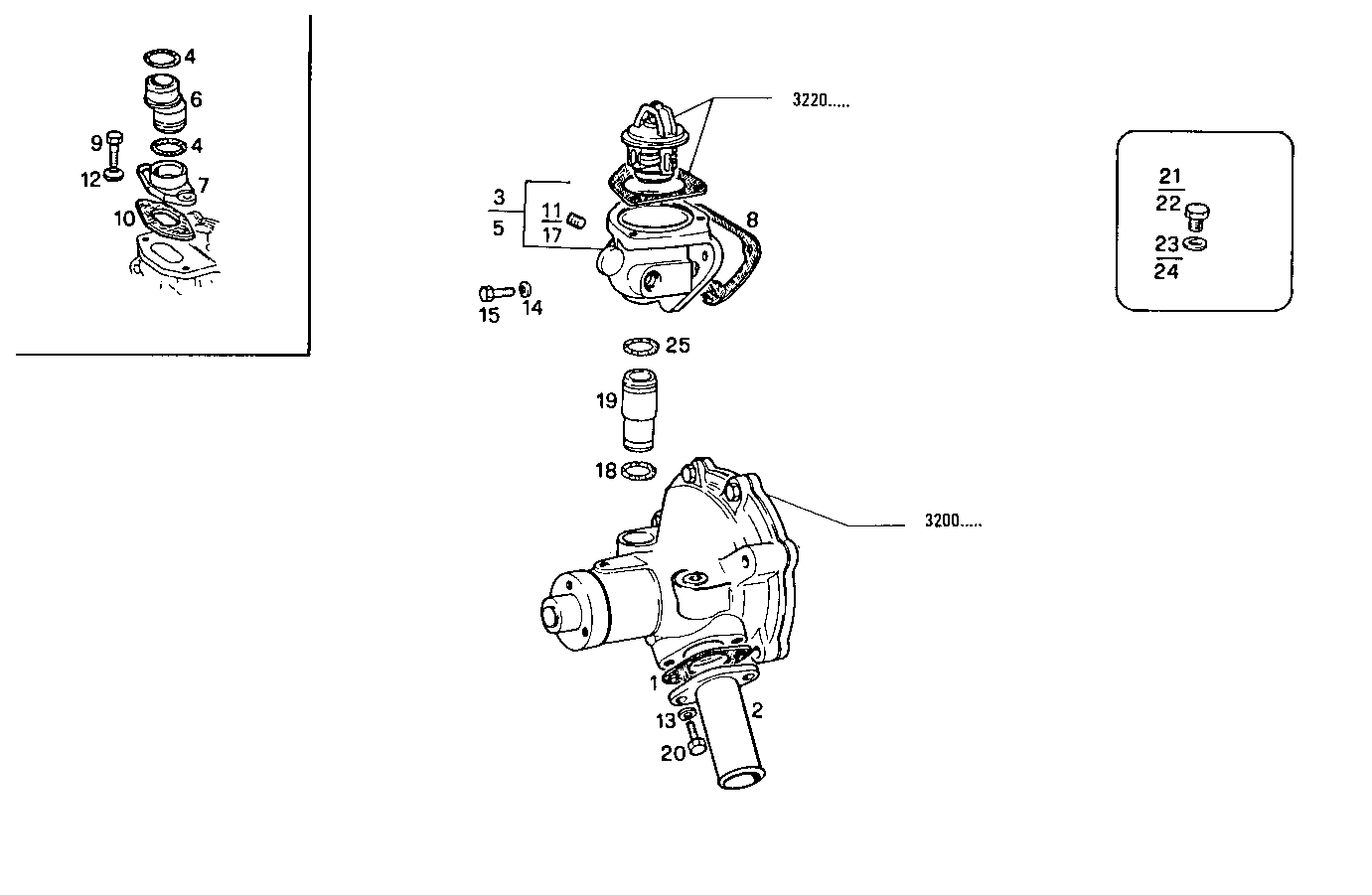

WATER LINES
8041C05.05 — 8041C05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4852556 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 2 | 4772995 | WATER PIPE WATER PIPE | 1 | |
| 3 | 4804633 | THERMOSTAT BODY THERMOSTAT BODY | 1 | |
| 4 | 98458442 | O-RING O-RING | 2 | |
| 5 | 98432305 | THERMOSTAT BODY THERMOSTAT BODY | 1 | |
| 6 | 4859908 | PIPE SOCKET PIPE SOCKET | 1 | |
| 7 | 4859907 | PIPE SOCKET PIPE SOCKET | 1 | |
| 8 | 4851926 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 9 | 4798845 | SCREW SCREW | 2 | |
| 10 | 98417182 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 11 | 14325301 | LOCK PLUG LOCK PLUG | 1 | |
| 12 | 14496521 | WASHER WASHER | 2 | |
| 13 | 17094914 | WASHER WASHER | 2 | |
| 14 | 17090274 | WASHER WASHER | 3 | |
| 15 | 11234721 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 17 | 14325201 | LOCK PLUG LOCK PLUG | 1 | |
| 18 | 17288681 | O-RING O-RING | 1 | |
| 19 | 98415712 | PIPE SOCKET PIPE SOCKET | 1 | |
| 20 | 98401723 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 21 | 10305171 | PLUG PLUG | 1 | |
| 22 | 16992440 | THREADED PLUG THREADED PLUG | 1 | |
| 23 | 10263460 | WASHER WASHER | 1 | |
| 24 | 10257060 | SEAL GASKET SEAL GASKET | 1 | |
| 25 | 17282281 | O-RING O-RING | 1 |
