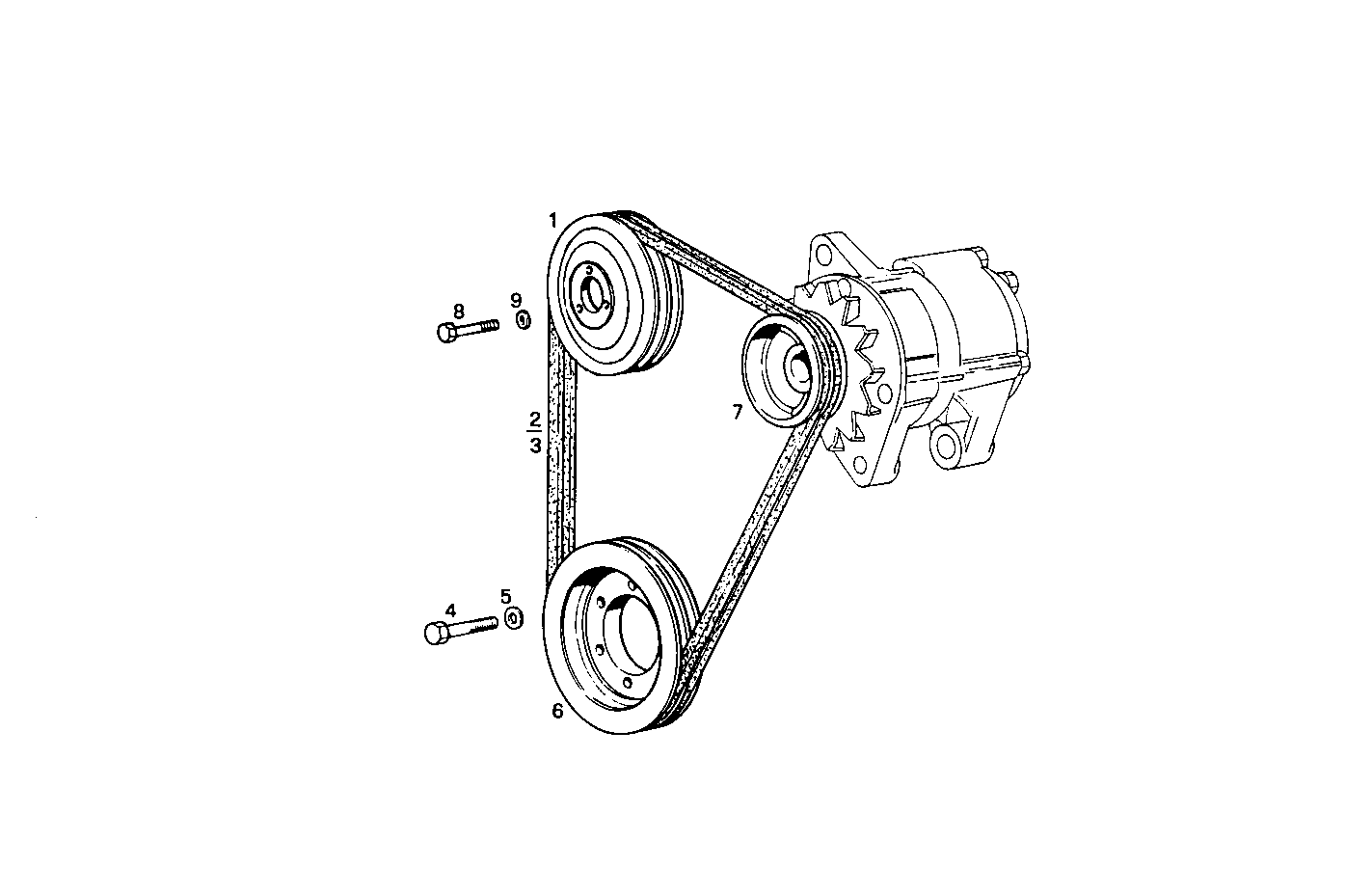

FRONT DRIVE WITH 2 BELTS
8041C05.06 — 8041C05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8108493 | PULLEY PULLEY | 1 | |
| 2 | 8108514 | V-BELT V-BELT | 1 | |
| 3 | 4847051 | SET OF V-BELTS SET OF V-BELTS | 1 | |
| 4 | 11606921 | SCREW SCREW | 3 | |
| 5 | 17090174 | SPRING WASHER SPRING WASHER | 3 | |
| 6 | 8108478 | PULLEY PULLEY | 1 | |
| 7 | 4808607 | PULLEY PULLEY | 1 | |
| 8 | 16605424 | SCREW SCREW | 3 | |
| 9 | 17089474 | SPRING WASHER SPRING WASHER | 3 |
