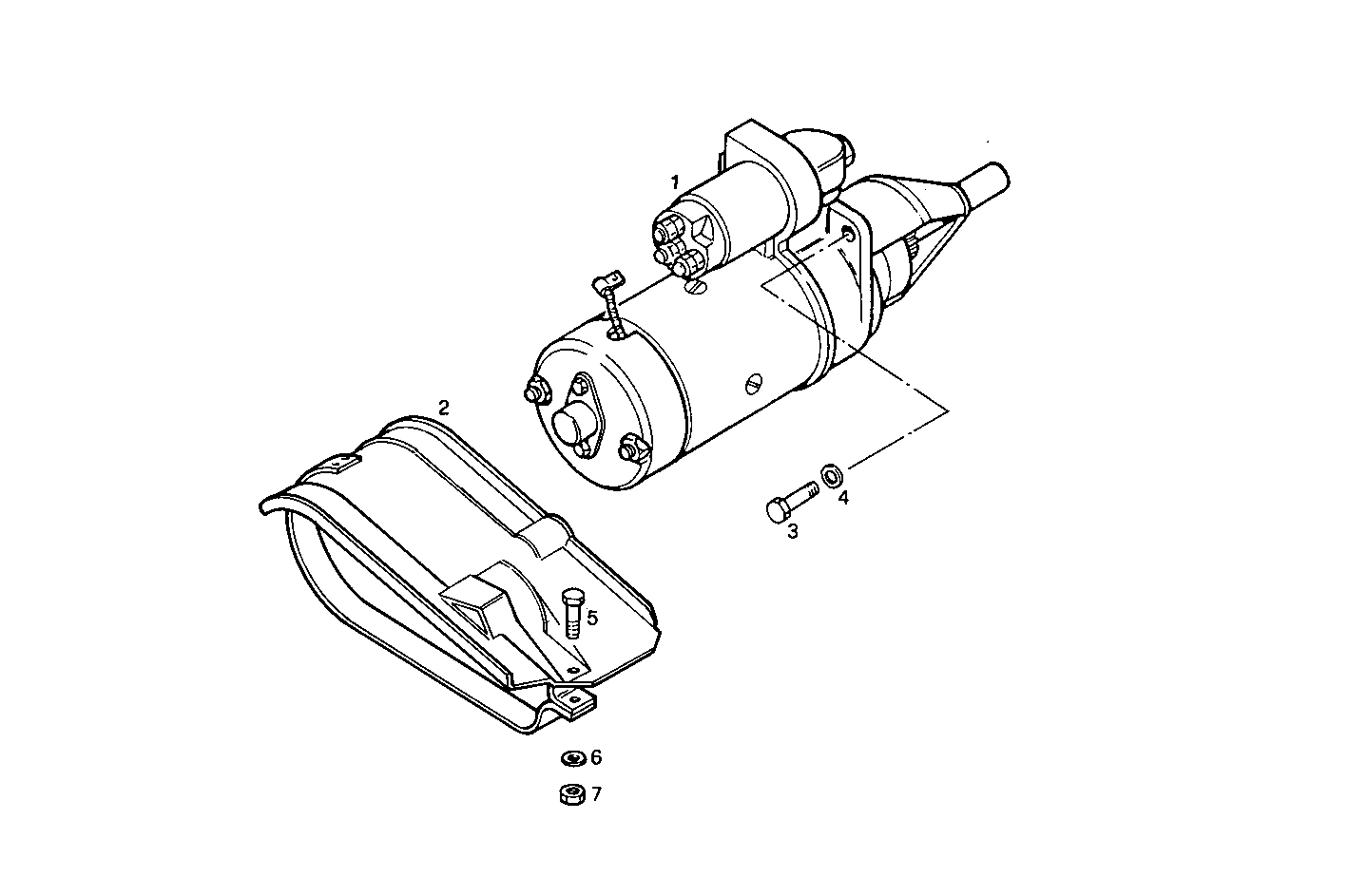

STARTER MOTOR - 24V
8041C05.06 — 8041C05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4744841 | STARTER MOTOR STARTER MOTOR | 1 | |
| 2 | 4721863 | PROTECTION PROTECTION | 1 | |
| 3 | 11306921 | SCREW SCREW | 3 | |
| 4 | 17090174 | SPRING WASHER SPRING WASHER | 3 | |
| 5 | 16604124 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 17088474 | WASHER WASHER | 1 | |
| 7 | 17037721 | NUT NUT | 1 |
