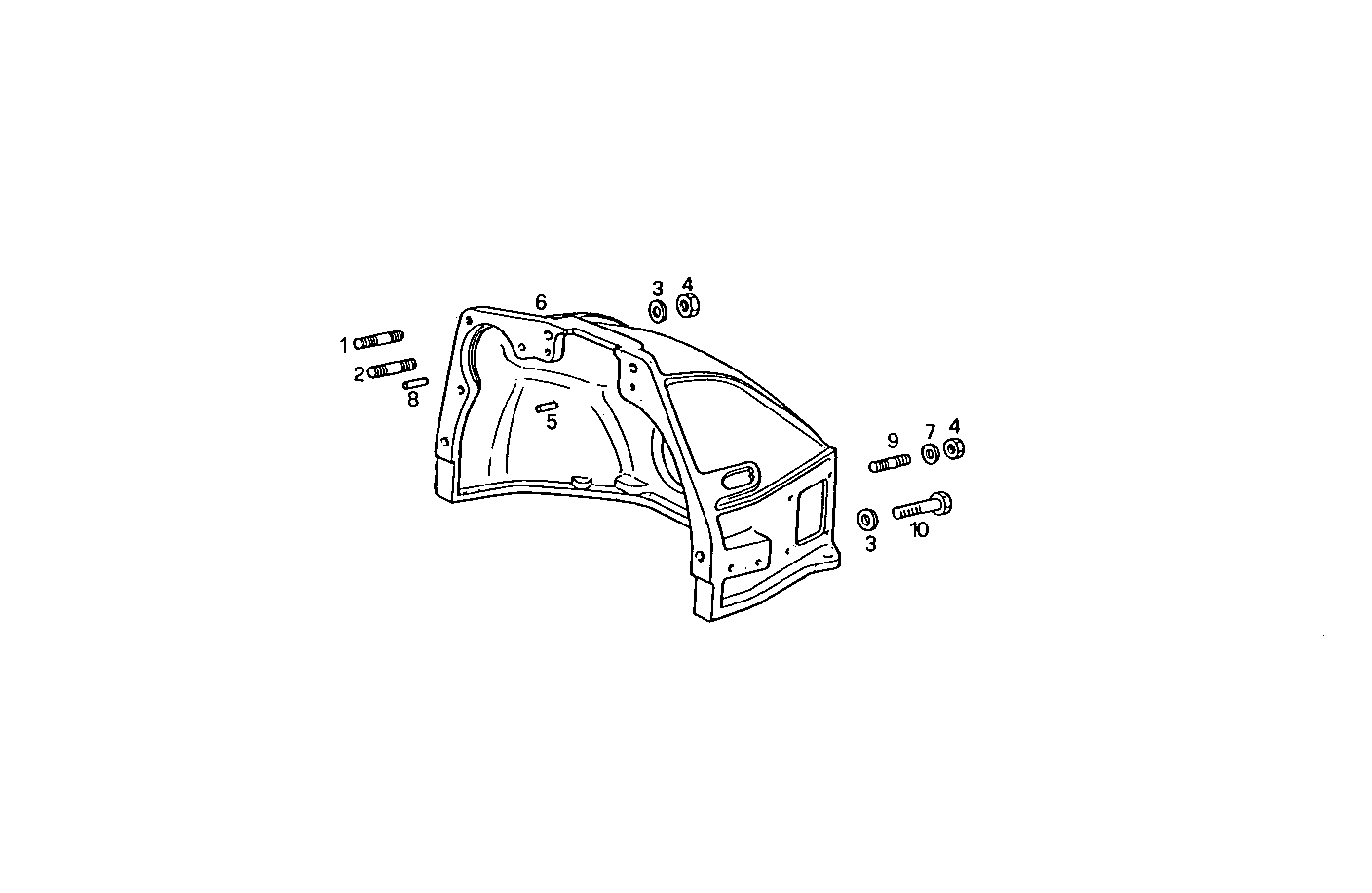

CLUTCH
8041C05.06A018 — 8041C05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16731224 | STUD STUD | 2 | |
| 2 | 16735624 | STUD STUD | 2 | |
| 3 | 17095504 | WASHER WASHER | 4 | |
| 4 | 17037821 | HEXAGON NUT HEXAGON NUT | 6 | |
| 5 | 8813445 | DOWEL PIN DOWEL PIN | 2 | |
| 6 | 8019675 | CLUTCH HOUSING CLUTCH HOUSING | 1 | |
| 7 | 17091974 | SPRING WASHER SPRING WASHER | 4 | |
| 8 | 4647524 | DOWEL PIN DOWEL PIN | 1 | |
| 9 | 16735424 | STUD STUD | 4 | |
| 10 | 16613720 | SCREW SCREW | 2 |
