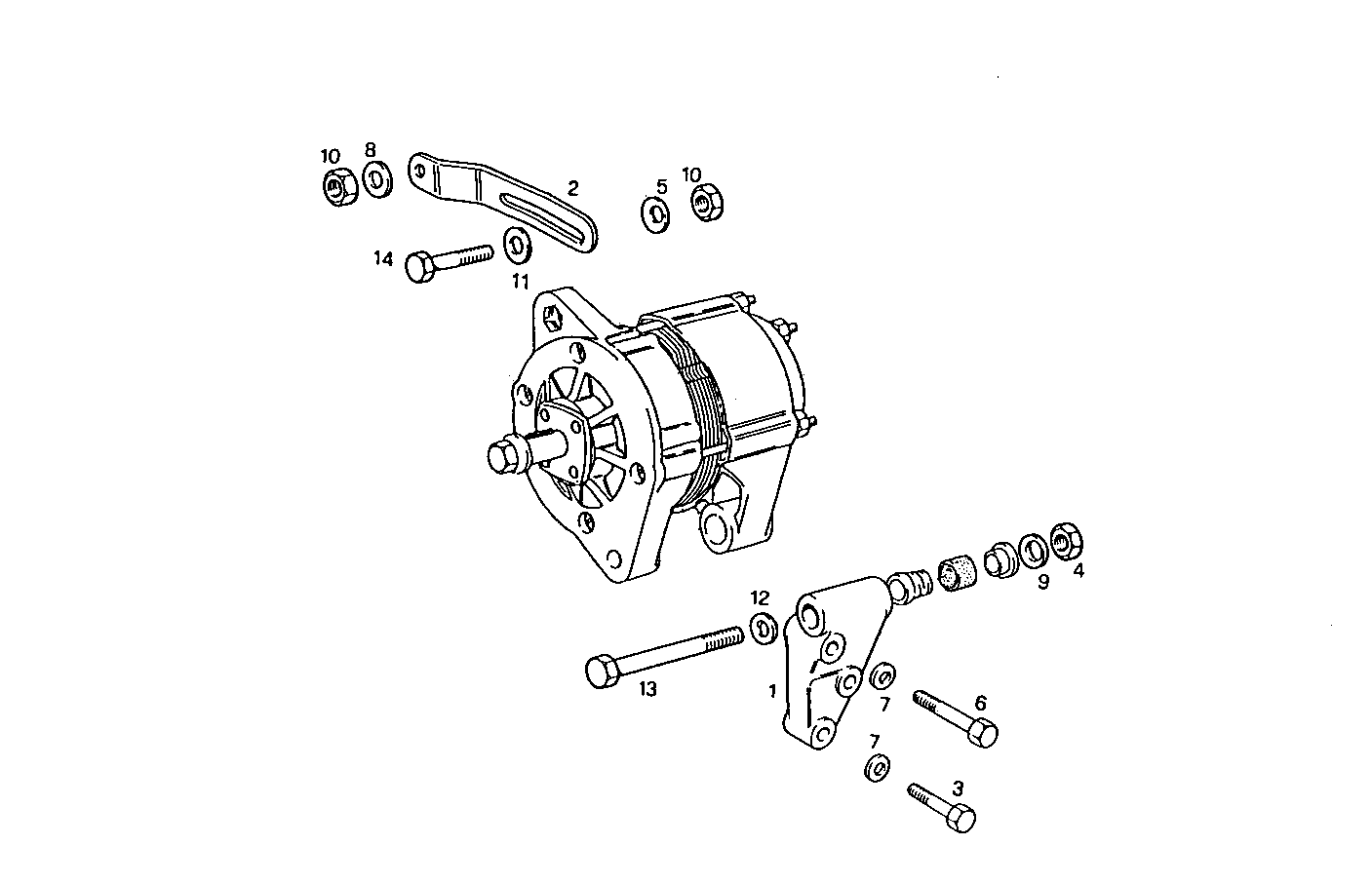

MOUNT
8041C05.06A018 — 8041C05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4677353 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 2 | 4601576 | BELT TENSIONER BELT TENSIONER | 1 | |
| 3 | 16606224 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 4 | 17038621 | NUT NUT | 1 | |
| 5 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 6 | 16606024 | SCREW SCREW | 2 | |
| 7 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 8 | 17090274 | WASHER WASHER | 1 | |
| 9 | 12646901 | WASHER WASHER | 2 | |
| 10 | 17038221 | HEXAGON NUT HEXAGON NUT | 2 | |
| 11 | 17793904 | WASHER WASHER | 1 | |
| 12 | 17091074 | WASHER WASHER | 1 | |
| 13 | 15543221 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 11307021 | HEXAGON BOLT HEXAGON BOLT | 1 |
