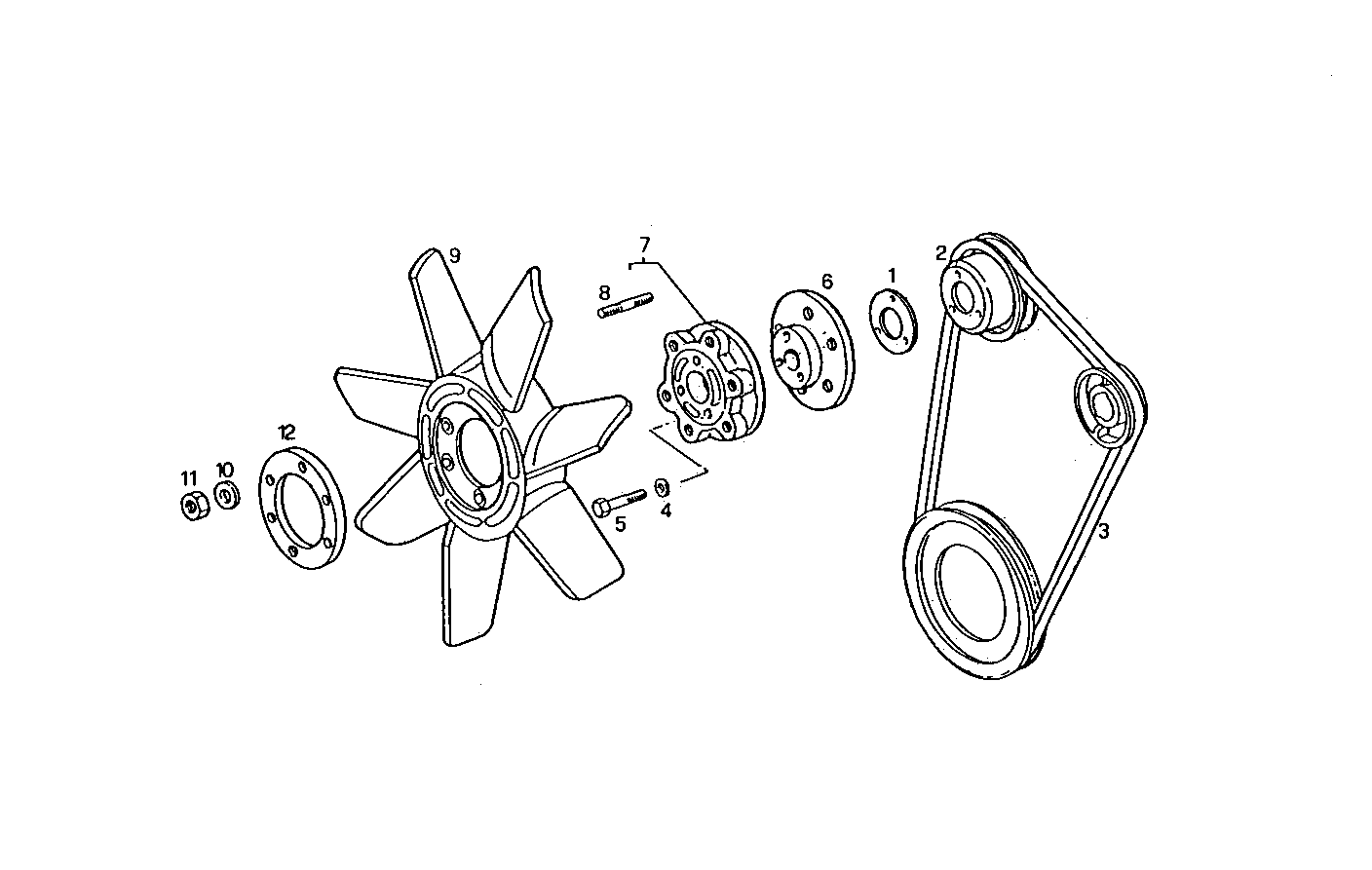

PULLEYS AND BELTS
8041C05.06A018 — 8041C05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4584861 | SPACING BAR SPACING BAR | 1 | |
| 2 | 4811416 | WATER PUMP PULLEY WATER PUMP PULLEY | 1 | |
| 3 | 4809680 | V-BELT V-BELT | 1 | |
| 4 | 17094914 | WASHER WASHER | 3 | |
| 5 | 16606724 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 6 | 8105170 | SPACING BAR SPACING BAR | 1 | |
| 7 | 4812546 | SPACING BAR SPACING BAR | 1 | |
| 8 | 13449821 | STUD STUD | 6 | |
| 9 | 4800473 | BLOWER BLOWER | 1 | |
| 10 | 17095004 | WASHER WASHER | 6 | |
| 11 | 17153021 | HEXAGON NUT HEXAGON NUT | 6 | |
| 12 | 4629908 | SUPPORT RING SUPPORT RING | 1 |
