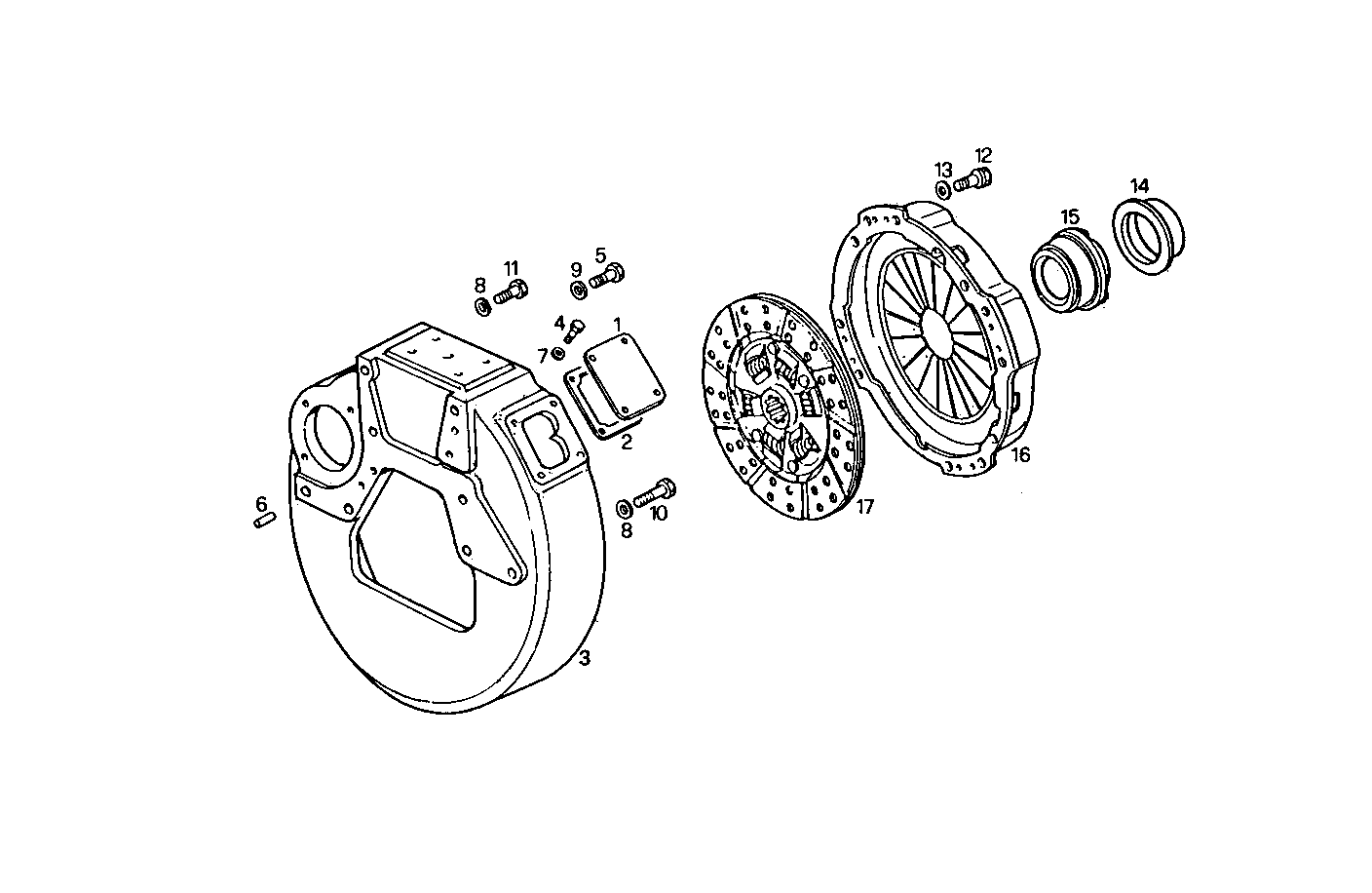

CLUTCH
8041C05.06A019 — 8041C05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98417985 | COVER COVER | 1 | |
| 2 | 98417986 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 8022711 | SUPPORT SUPPORT | 1 | |
| 4 | 16043521 | SCREW SCREW | 4 | |
| 5 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 6 | 17275510 | DOWEL PIN DOWEL PIN | 2 | |
| 7 | 17089474 | SPRING WASHER SPRING WASHER | 5 | |
| 8 | 17091674 | WASHER WASHER | 6 | |
| 9 | 17090174 | SPRING WASHER SPRING WASHER | 4 | |
| 10 | 16612424 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 11 | 16612924 | SCREW SCREW | 2 | |
| 12 | 4659180 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 13 | 17095004 | WASHER WASHER | 8 | |
| 14 | 8022924 | SPACING BAR SPACING BAR | 1 | |
| 15 | 8022921 | HUB HUB | 1 | |
| 16 | 8022917 | SWITCHGEAR SWITCHGEAR | 1 | |
| 17 | 4834868 | CLUTCH DISC CLUTCH DISC | 1 |
