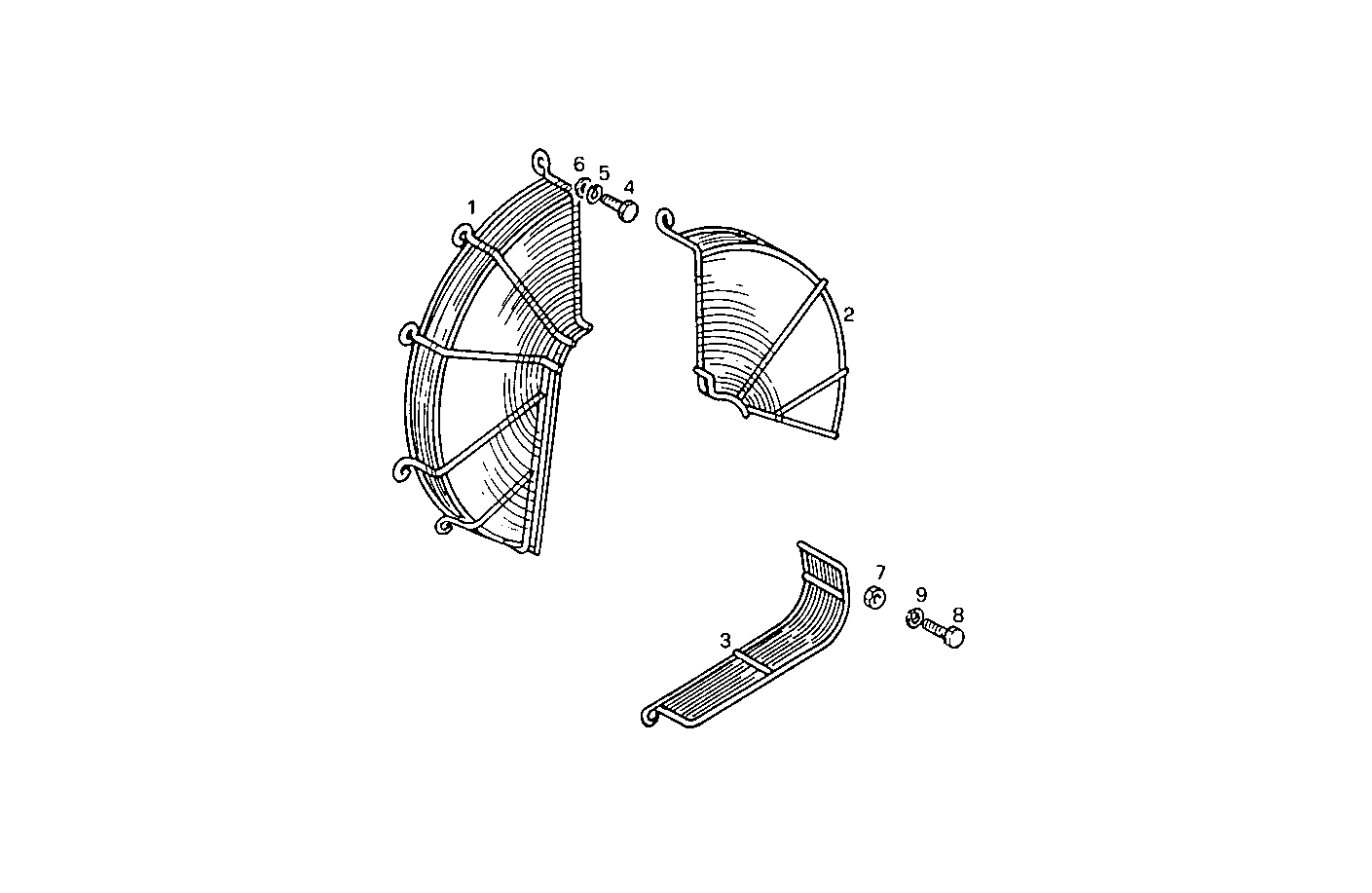

GUARD
8041i05.00 — 8041i05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8101920 | PROTECTION PROTECTION | 1 | |
| 2 | 8101936 | PROTECTION PROTECTION | 1 | |
| 3 | 8101941 | PROTECTION PROTECTION | 1 | |
| 4 | 10902421 | HEXAGON BOLT HEXAGON BOLT | 9 | |
| 5 | 11197779 | SPRING WASHER SPRING WASHER | 9 | |
| 6 | 14496501 | WASHER WASHER | 11 | |
| 7 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 8 | 16043621 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 11193879 | SPRING WASHER SPRING WASHER | 1 |
