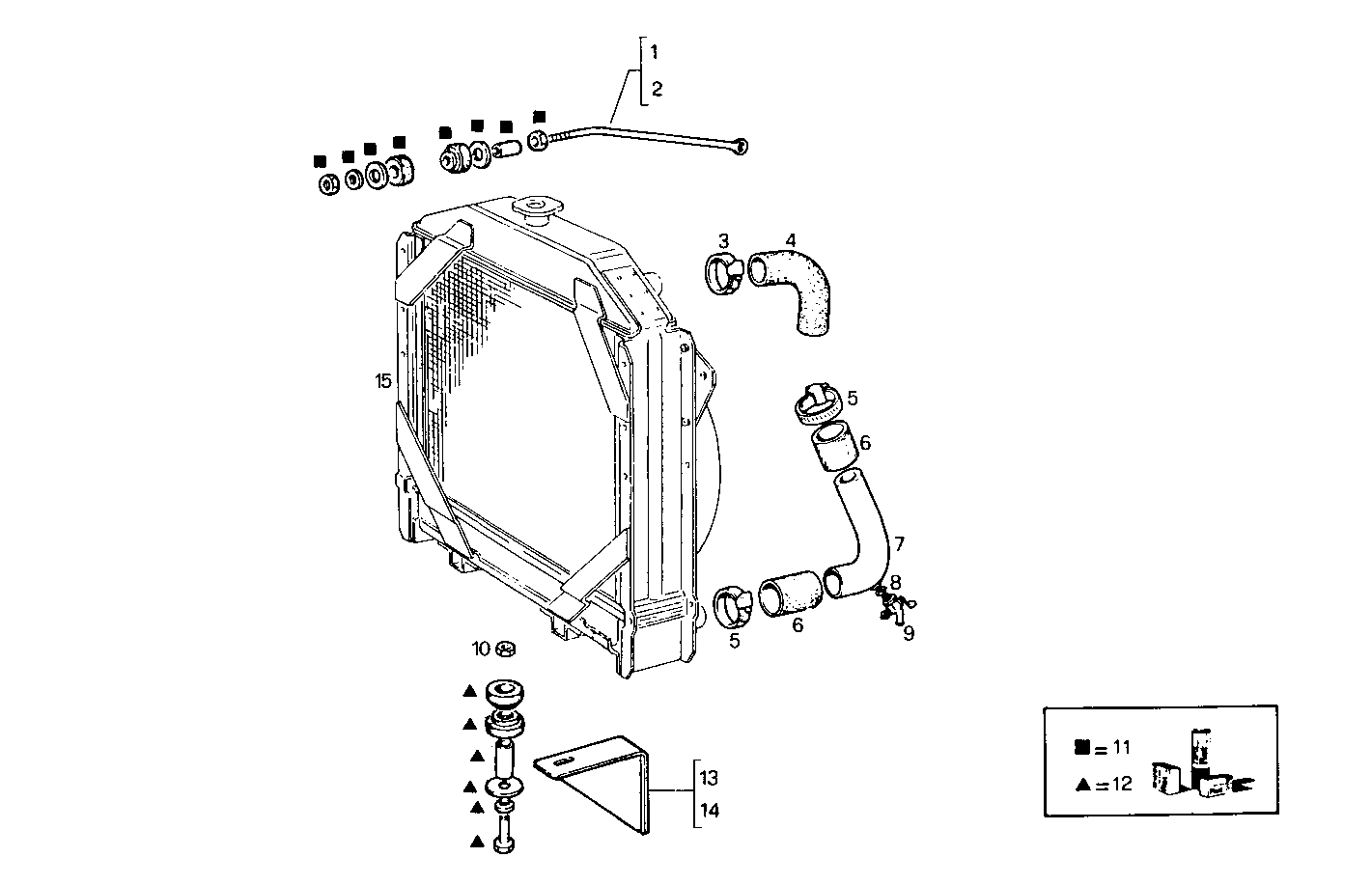

RADIATOR FOR SETTING TILL MAX POWER
8041i05.00 — 8041i05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8103198 | TIE ROD TIE ROD | 1 | |
| 2 | 8103199 | TIE ROD TIE ROD | 1 | |
| 3 | 17764992 | CLIP CLIP | 2 | |
| 4 | 4950088 | WATER PIPE WATER PIPE | 1 | |
| 5 | 17764792 | HOSE CLIP HOSE CLIP | 4 | |
| 6 | 596152 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 7 | 4614162 | WATER PIPE WATER PIPE | 1 | |
| 8 | 10278660 | SEAL GASKET SEAL GASKET | 1 | |
| 9 | 8802992 | RETAINER COCK RETAINER COCK | 1 | |
| 10 | 12164711 | HEXAGON NUT HEXAGON NUT | 2 | |
| 11 | 8090340 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 12 | 8090341 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 13 | 8104250 | SUPPORT SUPPORT | 1 | |
| 14 | 8104274 | SUPPORT SUPPORT | 1 | |
| 15 | 8009087 | WATER RADIATOR WATER RADIATOR | 1 |
