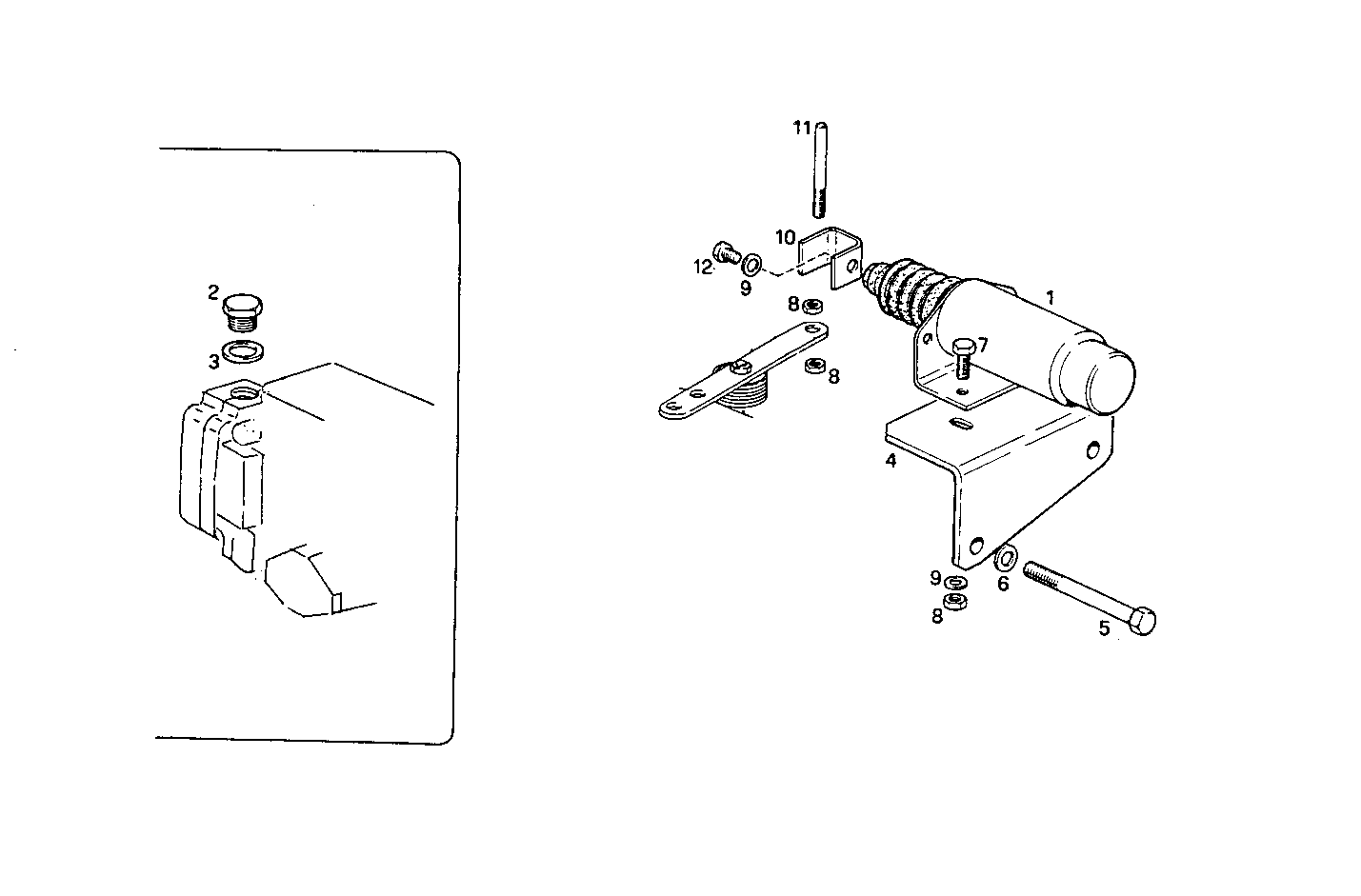

STOP SOLENOID - ENERGIZE TO STOP - 12V
8041i05.00 — 8041i05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8104920 | SOLENOID SOLENOID | 1 | |
| 2 | 10300611 | LOCK PLUG LOCK PLUG | 1 | |
| 3 | 10280050 | SEAL GASKET SEAL GASKET | 1 | |
| 4 | 8104918 | SUPPORT SUPPORT | 1 | |
| 5 | 16044621 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 11193879 | SPRING WASHER SPRING WASHER | 2 | |
| 7 | 10902221 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 15896211 | HEXAGON NUT HEXAGON NUT | 4 | |
| 9 | 11197779 | SPRING WASHER SPRING WASHER | 3 | |
| 10 | 8102657 | CLEVIS CLEVIS | 1 | |
| 11 | 4935359 | PIN PIN | 1 | |
| 12 | 10902021 | HEXAGON BOLT HEXAGON BOLT | 1 |
