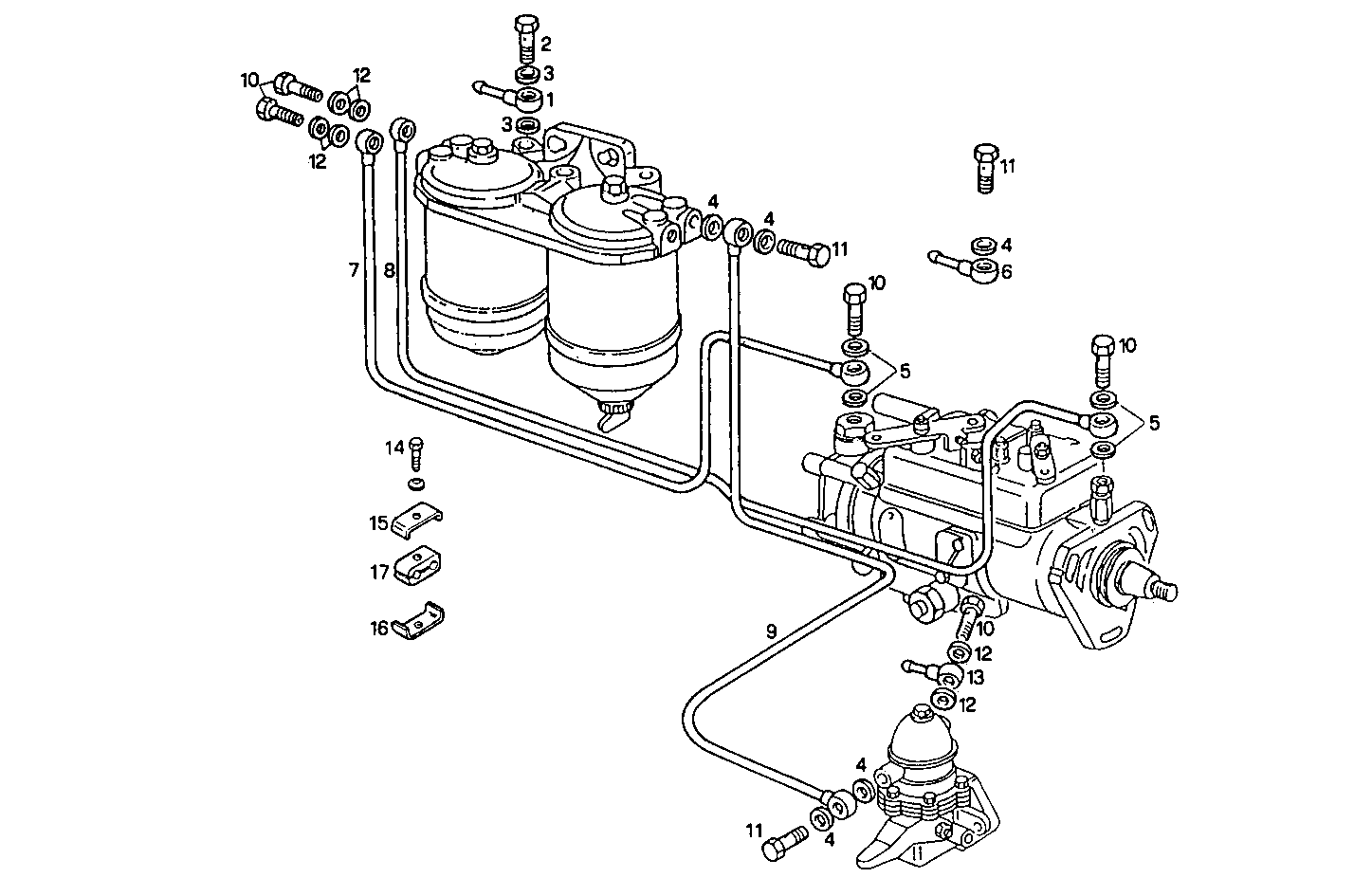

ELECTRONIC GOVERNOR G.A.C.
8041i06.55 — 8041i06
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98417522 | PIPE SOCKET PIPE SOCKET | 1 | |
| 2 | 98417535 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 3 | 98474305 | WASHER WASHER | 1 | |
| 4 | 98474308 | SEAL GASKET SEAL GASKET | 6 | |
| 5 | 4858607 | WASHER WASHER | 4 | |
| 6 | 98416591 | SWIVEL COUPLING SWIVEL COUPLING | 1 | |
| 7 | 8029309 | FUEL LINE FUEL LINE | 1 | |
| 8 | 8029308 | FUEL LINE FUEL LINE | 1 | |
| 9 | 8029307 | FUEL LINE FUEL LINE | 1 | |
| 10 | 4864082 | BANJO BOLT BANJO BOLT | 5 | |
| 11 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 3 | |
| 12 | 98474306 | WASHER WASHER | 6 | |
| 13 | 98417520 | PIPE SOCKET PIPE SOCKET | 1 | |
| 14 | 16602224 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 15 | 4659218 | CLIP CLIP | 1 | |
| 16 | 4659219 | PLATE PLATE | 1 | |
| 17 | 4659217 | DOWEL DOWEL | 1 |
