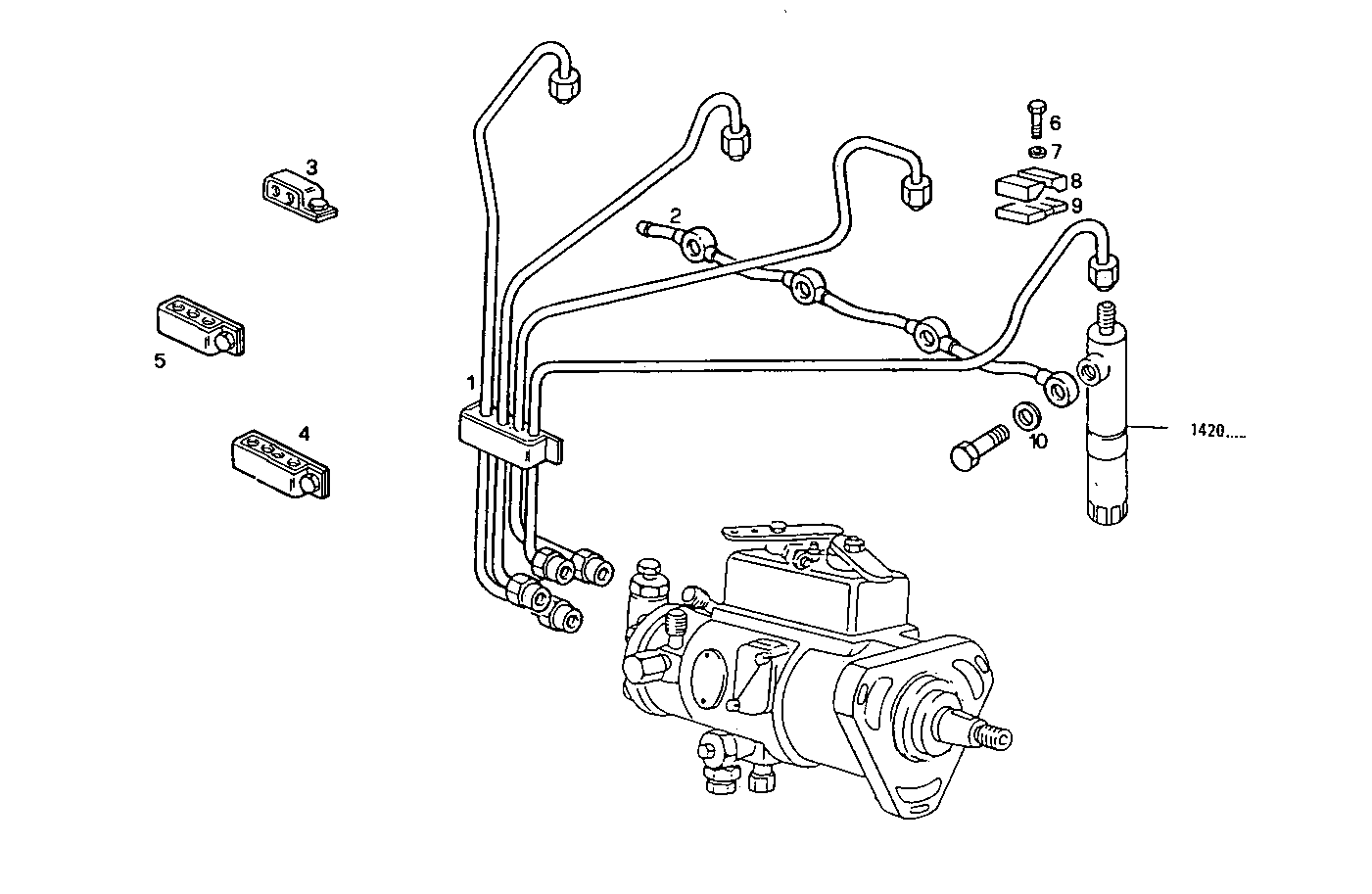

INJECTION PIPES
8041i06.55A500 — 8041i06
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4797522 | INJECTION LINE SET INJECTION LINE SET | 1 | |
| 2 | 4777224 | FUEL LINE FUEL LINE | 1 | |
| 3 | 4806611 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 4 | 4806612 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 5 | 4806613 | RETAINER RETAINER | 1 | |
| 6 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 7 | 17088474 | WASHER WASHER | 1 | |
| 8 | 4002890 | CLIP CLIP | 1 | |
| 9 | 607942 | CLIP CLIP | 1 | |
| 10 | 10297760 | SEAL GASKET SEAL GASKET | 8 |
