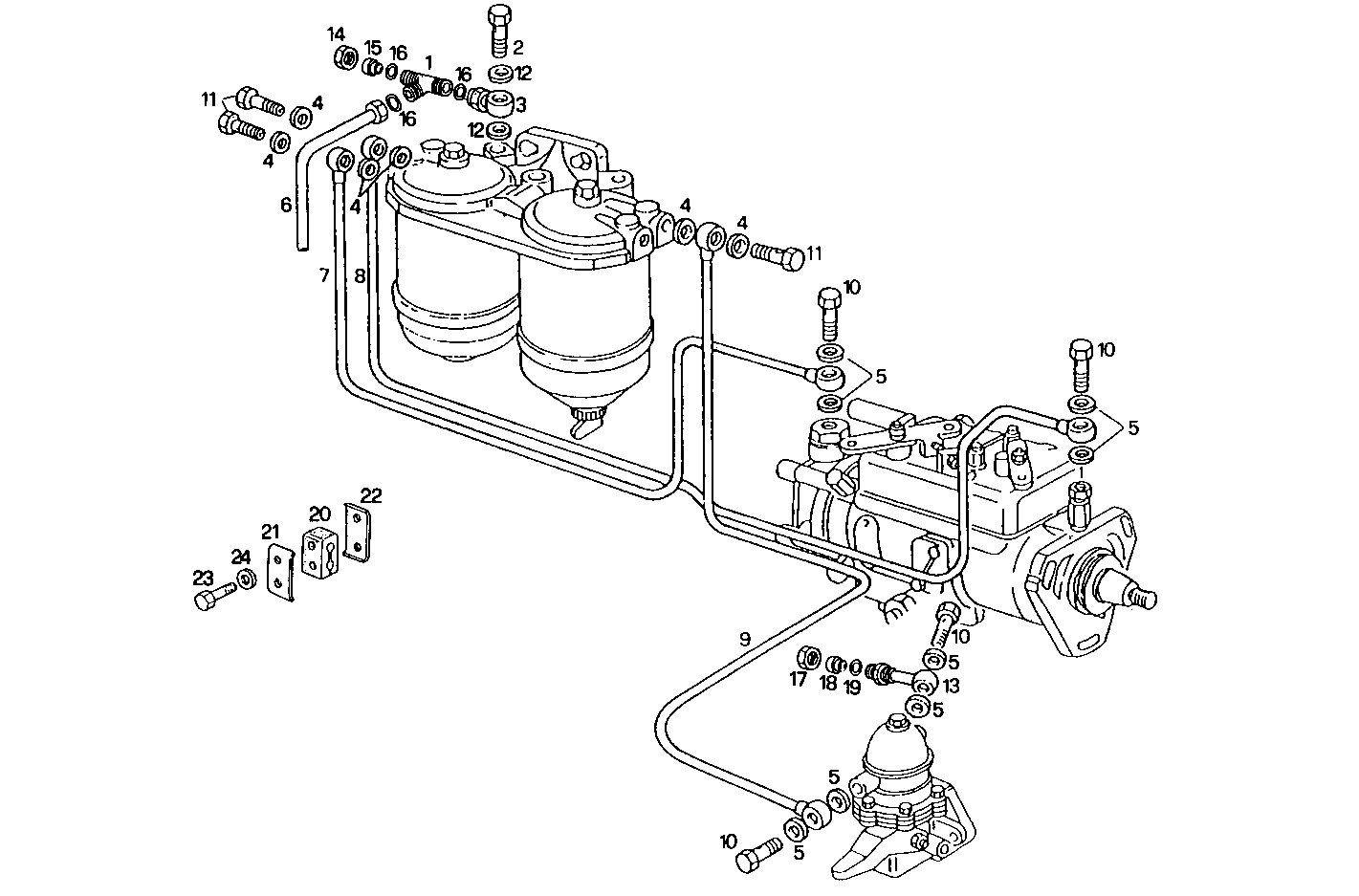

FUEL LINES
8041i40.55 — 8041i40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16505114 | T-COUPLING T-COUPLING | 1 | |
| 2 | 98417535 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 3 | 8029443 | PIPE SOCKET PIPE SOCKET | 1 | |
| 4 | 4858608 | SEAL GASKET SEAL GASKET | 6 | |
| 5 | 4858607 | WASHER WASHER | 8 | |
| 6 | 8029444 | FUEL LINE FUEL LINE | 1 | |
| 7 | 8029441 | FUEL LINE FUEL LINE | 1 | |
| 8 | 8029442 | FUEL LINE FUEL LINE | 1 | |
| 9 | 8029440 | FUEL LINE FUEL LINE | 1 | |
| 10 | 4864082 | BANJO BOLT BANJO BOLT | 4 | |
| 11 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 3 | |
| 12 | 4858606 | GASKET GASKET | 2 | |
| 13 | 8029417 | BANJO COUPLING BANJO COUPLING | 1 | |
| 14 | 16506711 | UNION NUT UNION NUT | 1 | |
| 15 | 16507411 | WASHER WASHER | 1 | |
| 16 | 8024645 | O-RING O-RING | 3 | |
| 17 | 16506811 | NUT NUT | 1 | |
| 18 | 16507511 | WASHER WASHER | 1 | |
| 19 | 8024646 | O-RING O-RING | 1 | |
| 20 | 4659220 | DOWEL DOWEL | 1 | |
| 21 | 4659221 | CLIP CLIP | 1 | |
| 22 | 4659222 | CLAMP CLAMP | 1 | |
| 23 | 16602324 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 24 | 17101334 | SPRING WASHER SPRING WASHER | 2 |
