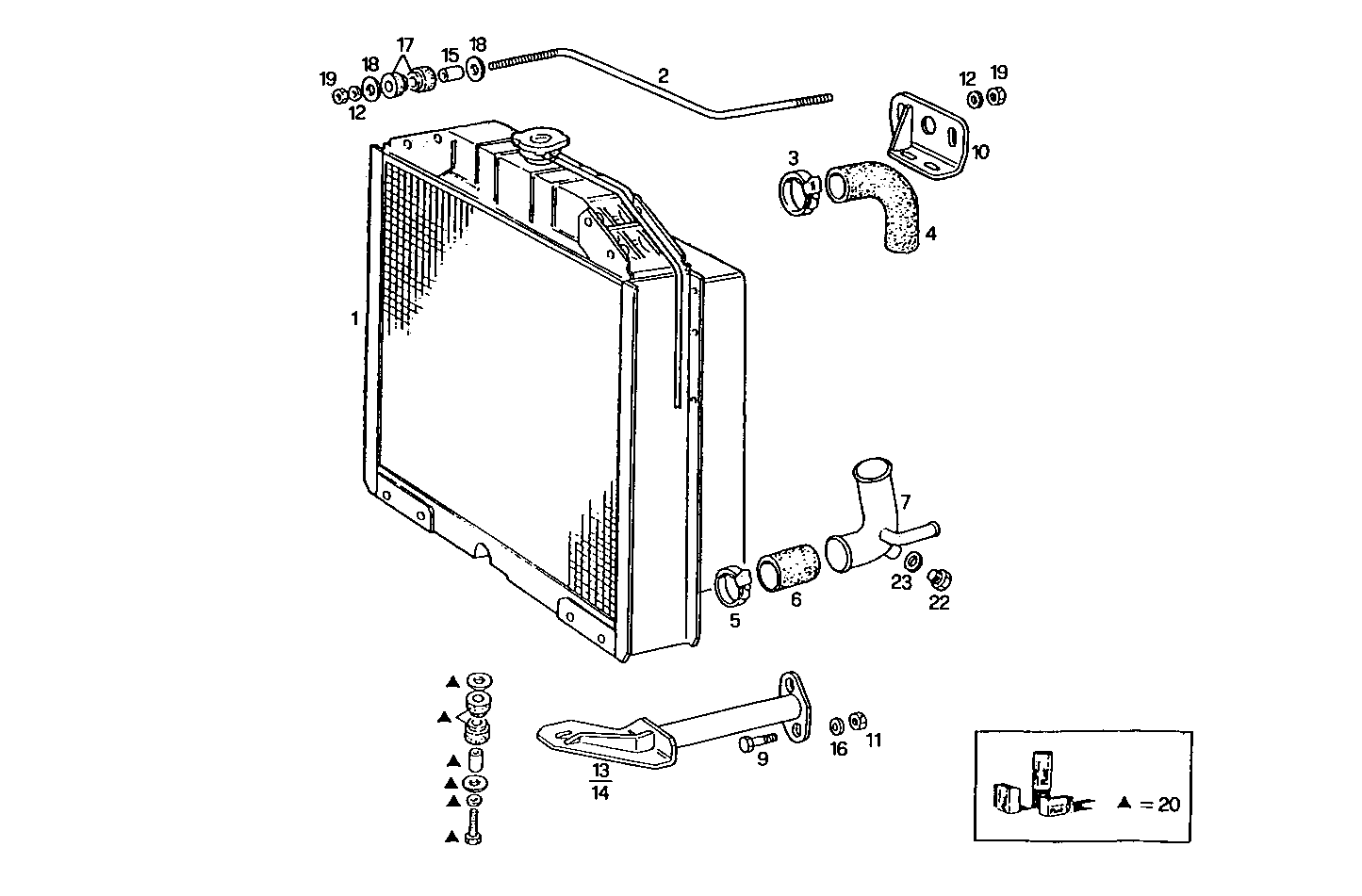

RADIATOR FOR SETTING TILL MAX POWER
8041i40.55 — 8041i40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8008817 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 8023988 | TIE ROD TIE ROD | 2 | |
| 3 | 17764891 | CLIP CLIP | 2 | |
| 4 | 8026743 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 5 | 17764791 | CLIP CLIP | 3 | |
| 6 | 596152 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 7 | 8108043 | WATER PIPE WATER PIPE | 1 | |
| 9 | 16612224 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 10 | 8023950 | SUPPORT SUPPORT | 1 | |
| 11 | 17038221 | HEXAGON NUT HEXAGON NUT | 4 | |
| 12 | 17089774 | SPRING WASHER SPRING WASHER | 4 | |
| 13 | 8023645 | SUPPORT SUPPORT | 1 | |
| 14 | 8023644 | SUPPORT SUPPORT | 1 | |
| 15 | 8108634 | SPACING BAR SPACING BAR | 2 | |
| 16 | 17091674 | WASHER WASHER | 4 | |
| 17 | 741569 | RUBBER PAD RUBBER PAD | 4 | |
| 18 | 741570 | WASHER WASHER | 4 | |
| 19 | 17037931 | HEXAGON NUT HEXAGON NUT | 8 | |
| 20 | 8090341 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 22 | 16992411 | THREADED PLUG THREADED PLUG | 1 | |
| 23 | 4858609 | WASHER WASHER | 1 |
