8041M08/8041M08.01/MARINE GEAR HURTH HBW 360

MARINE GEAR HURTH HBW 360

8041M08.01 — 8041M08

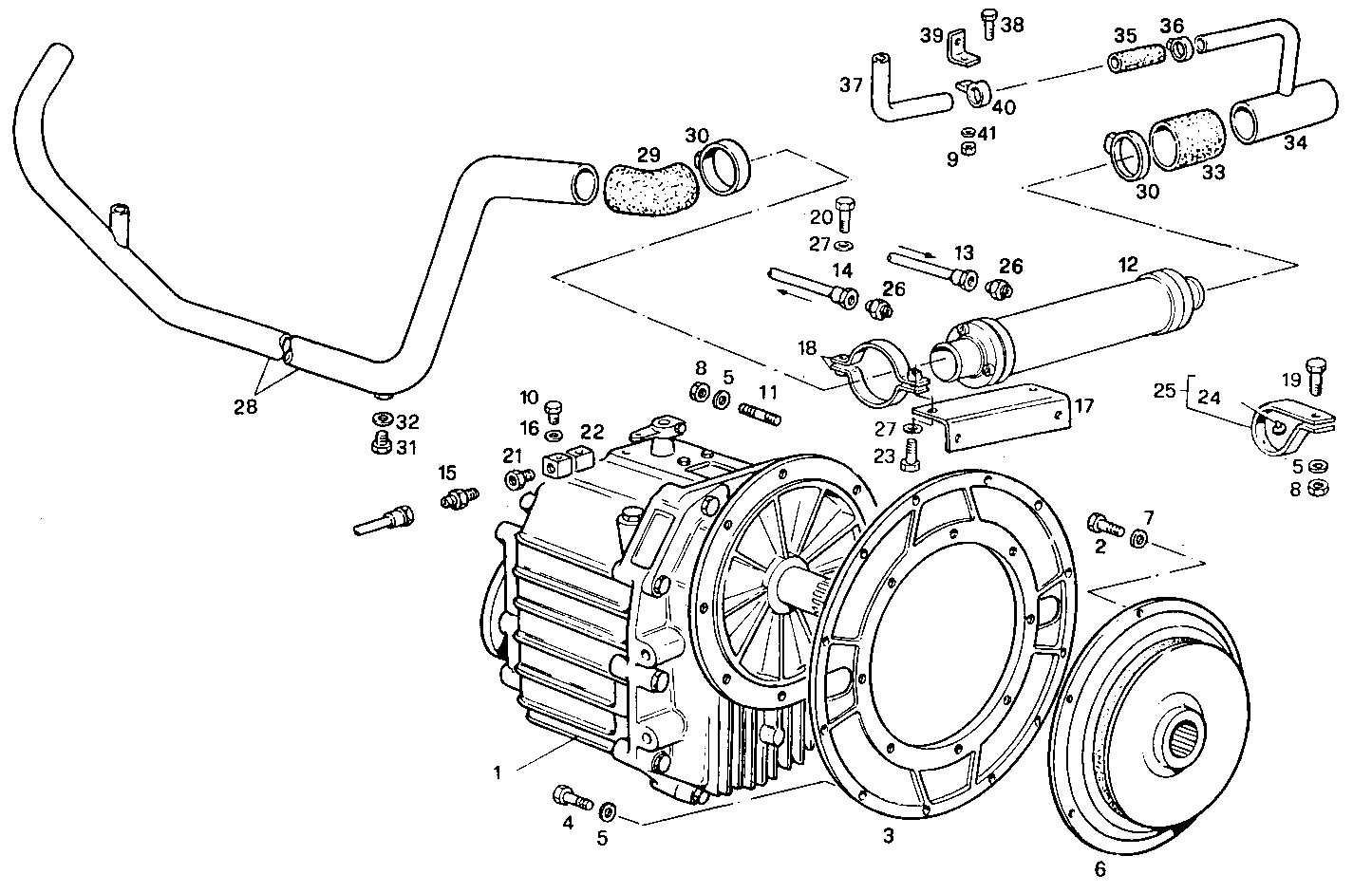

Parts List

#	Part No	Name / Description	Qty
1	8107843	MARINE GEAR MARINE GEAR	1
2	15970521	HEXAGON BOLT HEXAGON BOLT	8
3	4934782	COUPLING BELL COUPLING BELL	1
4	15970921	HEXAGON BOLT HEXAGON BOLT	12
5	11198371	SPRING WASHER SPRING WASHER	18
6	8005350	FLEXPLATE FLEXPLATE	1
7	10571879	WASHER WASHER	8
8	12164711	HEXAGON NUT HEXAGON NUT	8
9	17037931	HEXAGON NUT HEXAGON NUT	1
10	10183317	LOCK PLUG LOCK PLUG	2
11	13546321	STUD STUD	6
12	8016304	OIL/WATER HEAT EXCHANGER OIL/WATER HEAT EXCHANGER	1
13	8105855	OIL HOSE OIL HOSE	1
14	8105856	OIL LINE OIL LINE	1
15	4935465	PIPE SOCKET PIPE SOCKET	4
16	10257060	SEAL GASKET SEAL GASKET	2
17	4936740	SUPPORT SUPPORT	1
18	5116798	CLIP CLIP	4
19	15004021	HEXAGON BOLT HEXAGON BOLT	2
20	16605624	HEXAGON BOLT HEXAGON BOLT	2
21	8105826	PIPE SOCKET PIPE SOCKET	2
22	8107173	PIPE SOCKET PIPE SOCKET	2
23	16605734	HEXAGON BOLT HEXAGON BOLT	2
24	4568427	RUBBER PAD RUBBER PAD	6
25	8013591	CLIP CLIP	2
26	8110073	PIPE SOCKET PIPE SOCKET	2
27	17089474	SPRING WASHER SPRING WASHER	4
28	8107821	WATER PIPE WATER PIPE	1
29	10147087	RUBBER SLEEVE RUBBER SLEEVE	1
30	12177090	CLIP CLIP	4
31	11903040	LOCK PLUG LOCK PLUG	2
32	10260160	SEAL GASKET SEAL GASKET	2
33	17742687	RUBBER SLEEVE RUBBER SLEEVE	1
34	8107188	WATER PIPE WATER PIPE	1
35	4616762	RUBBER SLEEVE RUBBER SLEEVE	1
36	17764592	CLIP CLIP	2
37	8107189	WATER PIPE WATER PIPE	1
38	16043124	SCREW SCREW	1
39	8109067	RETAINER RETAINER	1
40	4936277	CLIP CLIP	1
41	11194079	SPRING WASHER SPRING WASHER	1
