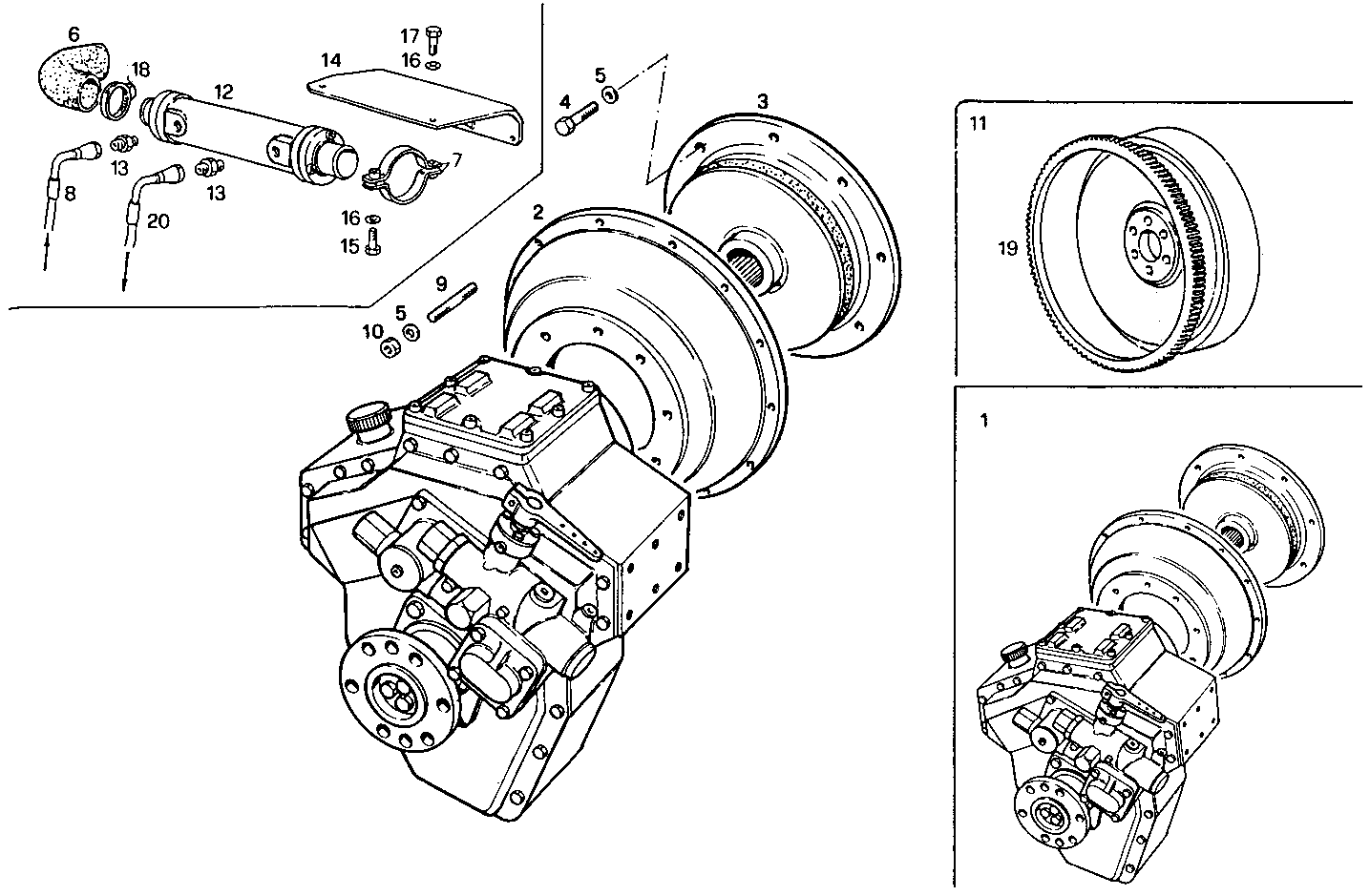

MARINE GEAR TECHNODRIVE TM 200 B
8041M08.01 — 8041M08
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8022066 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 8012798 | COUPLING BELL COUPLING BELL | 1 | |
| 3 | 8012802 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 4 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 5 | 17090174 | SPRING WASHER SPRING WASHER | 20 | |
| 6 | 8102099 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 7 | 5116798 | CLIP CLIP | 4 | |
| 8 | 4935779 | HOSE HOSE | 1 | |
| 9 | 13449521 | STUD STUD | 12 | |
| 10 | 17038221 | HEXAGON NUT HEXAGON NUT | 12 | |
| 11 | 4818113 | FLYWHEEL FLYWHEEL | 1 | |
| 12 | 8016304 | OIL/WATER HEAT EXCHANGER OIL/WATER HEAT EXCHANGER | 1 | |
| 13 | 8101073 | PIPE SOCKET PIPE SOCKET | 2 | |
| 14 | 8016558 | RETAINER RETAINER | 1 | |
| 15 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 16 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 17 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 18 | 17764793 | CLIP CLIP | 2 | |
| 19 | 4862411 | RING GEAR RING GEAR | 1 | |
| 20 | 4936603 | OIL HOSE OIL HOSE | 1 |
