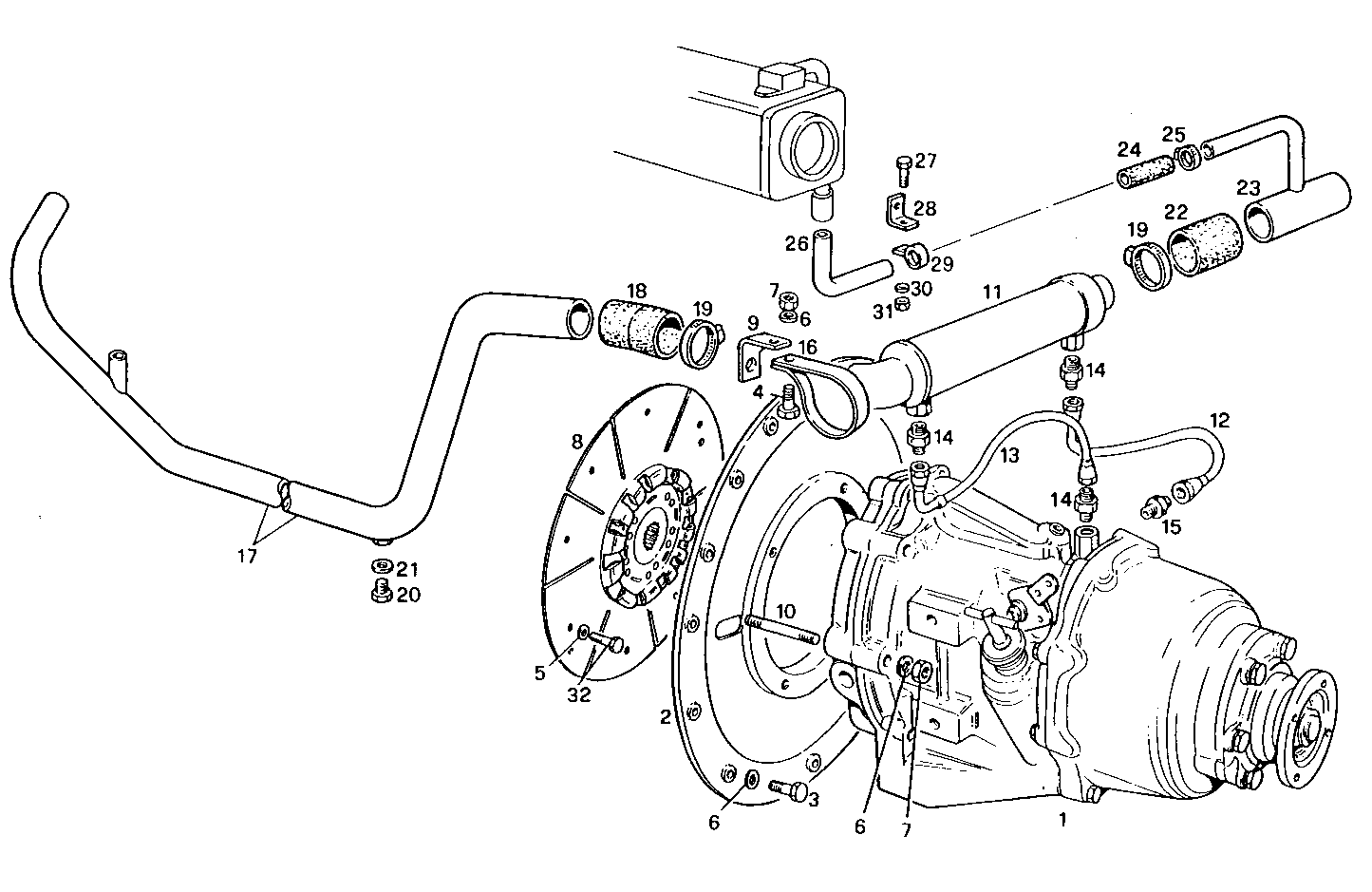

MARINE GEAR BORG WARNER 71 CR
8041M08.21 — 8041M08
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4917640 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 4934782 | COUPLING BELL COUPLING BELL | 1 | |
| 3 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 4 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 10571879 | WASHER WASHER | 8 | |
| 6 | 11198379 | SPRING WASHER SPRING WASHER | 20 | |
| 7 | 12164711 | HEXAGON NUT HEXAGON NUT | 8 | |
| 8 | 8005343 | FLEXPLATE FLEXPLATE | 1 | |
| 9 | 4936740 | SUPPORT SUPPORT | 2 | |
| 10 | 13547521 | STUD STUD | 6 | |
| 11 | 4919188 | MARINE GEAR OIL HEAT EXCH MARINE GEAR OIL HEAT EXCH | 1 | |
| 12 | 4935780 | OIL HOSE OIL HOSE | 1 | |
| 13 | 4935778 | OIL HOSE OIL HOSE | 1 | |
| 14 | 4935465 | PIPE SOCKET PIPE SOCKET | 3 | |
| 15 | 8101161 | PIPE SOCKET PIPE SOCKET | 1 | |
| 16 | 8100667 | CLIP CLIP | 2 | |
| 17 | 8107821 | WATER PIPE WATER PIPE | 1 | |
| 18 | 10147087 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 19 | 12177090 | CLIP CLIP | 4 | |
| 20 | 11903040 | LOCK PLUG LOCK PLUG | 2 | |
| 21 | 10260160 | SEAL GASKET SEAL GASKET | 2 | |
| 22 | 17742687 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 23 | 8107188 | WATER PIPE WATER PIPE | 1 | |
| 24 | 4616762 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 25 | 17764592 | CLIP CLIP | 2 | |
| 26 | 8107189 | WATER PIPE WATER PIPE | 1 | |
| 27 | 16043124 | SCREW SCREW | 1 | |
| 28 | 8109067 | RETAINER RETAINER | 1 | |
| 29 | 4936277 | CLIP CLIP | 1 | |
| 30 | 11194079 | SPRING WASHER SPRING WASHER | 1 | |
| 31 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 32 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 8 |
