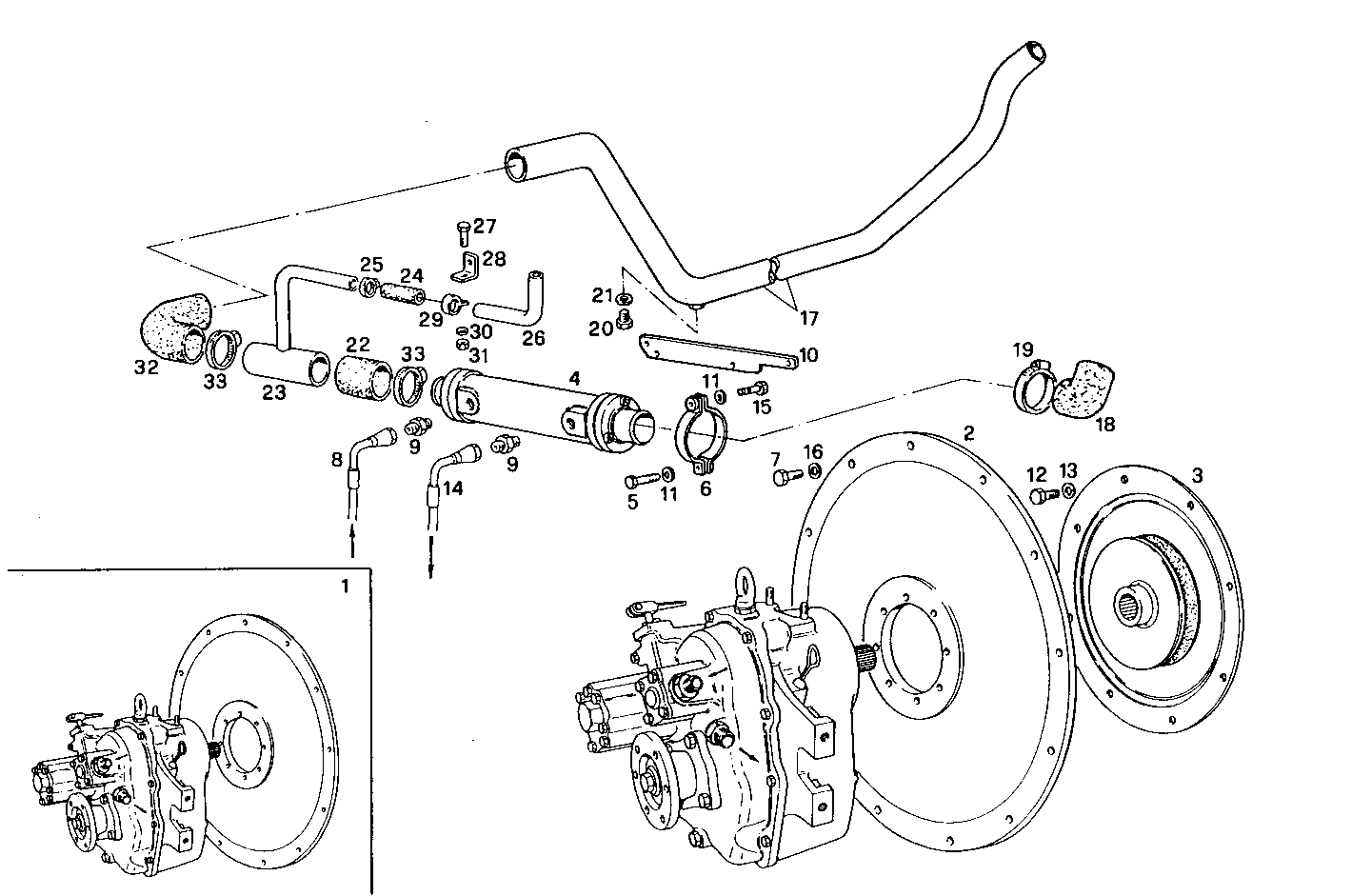

MARINE GEAR TECHNODRIVE TM 93
8041M08.21 — 8041M08
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8012442 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 8012407 | COUPLING BELL COUPLING BELL | 1 | |
| 3 | 8005350 | FLEXPLATE FLEXPLATE | 1 | |
| 4 | 8016304 | OIL/WATER HEAT EXCHANGER OIL/WATER HEAT EXCHANGER | 1 | |
| 5 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 5116798 | CLIP CLIP | 4 | |
| 7 | 11306921 | SCREW SCREW | 12 | |
| 8 | 4935779 | HOSE HOSE | 1 | |
| 9 | 4935465 | PIPE SOCKET PIPE SOCKET | 2 | |
| 10 | 8016558 | RETAINER RETAINER | 1 | |
| 11 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 12 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 13 | 10571879 | WASHER WASHER | 8 | |
| 14 | 8105620 | HOSE HOSE | 1 | |
| 15 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 16 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 17 | 8107789 | OIL LINE OIL LINE | 1 | |
| 18 | 8016576 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 19 | 17764793 | CLIP CLIP | 2 | |
| 20 | 11903040 | LOCK PLUG LOCK PLUG | 2 | |
| 21 | 10260160 | SEAL GASKET SEAL GASKET | 2 | |
| 22 | 17742687 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 23 | 8107188 | WATER PIPE WATER PIPE | 1 | |
| 24 | 4616762 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 25 | 17764592 | CLIP CLIP | 2 | |
| 26 | 8107189 | WATER PIPE WATER PIPE | 1 | |
| 27 | 16043124 | SCREW SCREW | 1 | |
| 28 | 8109067 | RETAINER RETAINER | 1 | |
| 29 | 4936277 | CLIP CLIP | 1 | |
| 30 | 11194079 | SPRING WASHER SPRING WASHER | 1 | |
| 31 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 32 | 10136187 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 33 | 12177090 | CLIP CLIP | 4 |
